Ferrari 430 Challenge (2006) - Fuel Pumps and Pipes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
239814 RH Fuel Pump $518.16 IN STOCK
239814 RH Fuel Pump $518.16 IN STOCK
Photo Part No Description Price (each) Stock

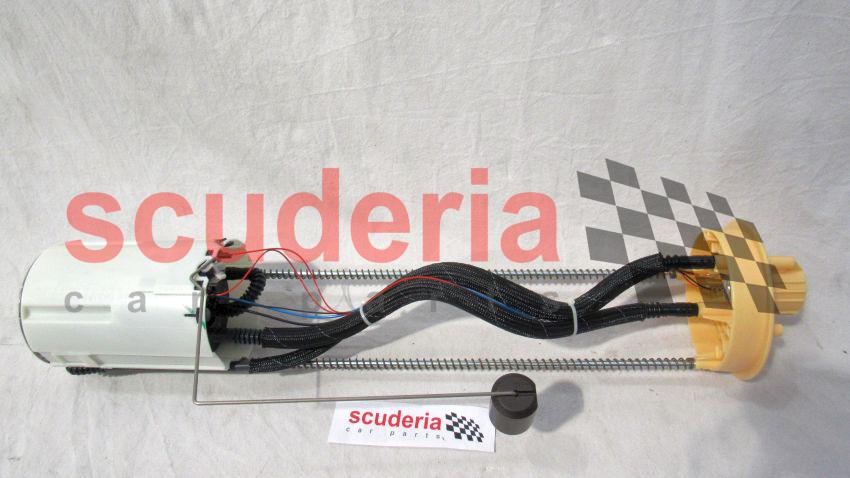

239815 L.H. COMPLETE FUEL PUMP AND $532.14 To Order
Photo Part No Description Price (each) Stock
194140 FUEL LEVEL INDICATOR $167.98 IN STOCK
Photo Part No Description Price (each) Stock
182501 R.H. PUMP SUPPORT COVER $2,000.68 To Order
Photo Part No Description Price (each) Stock
170945 RING NUT $32.37 To Order
Photo Part No Description Price (each) Stock
182502 L.H. PUMP SUPPORT COVER $2,000.68 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
183103 CONNECTION SLEEVE $102.31 To Order
Photo Part No Description Price (each) Stock
13001690 SCREW COLLAR $1.19 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
221434 RH FUEL DELIVERY TUBE $44.75 To Order
Photo Part No Description Price (each) Stock
221435 LH FUEL DELIVERY TUBE $44.75 To Order
Photo Part No Description Price (each) Stock

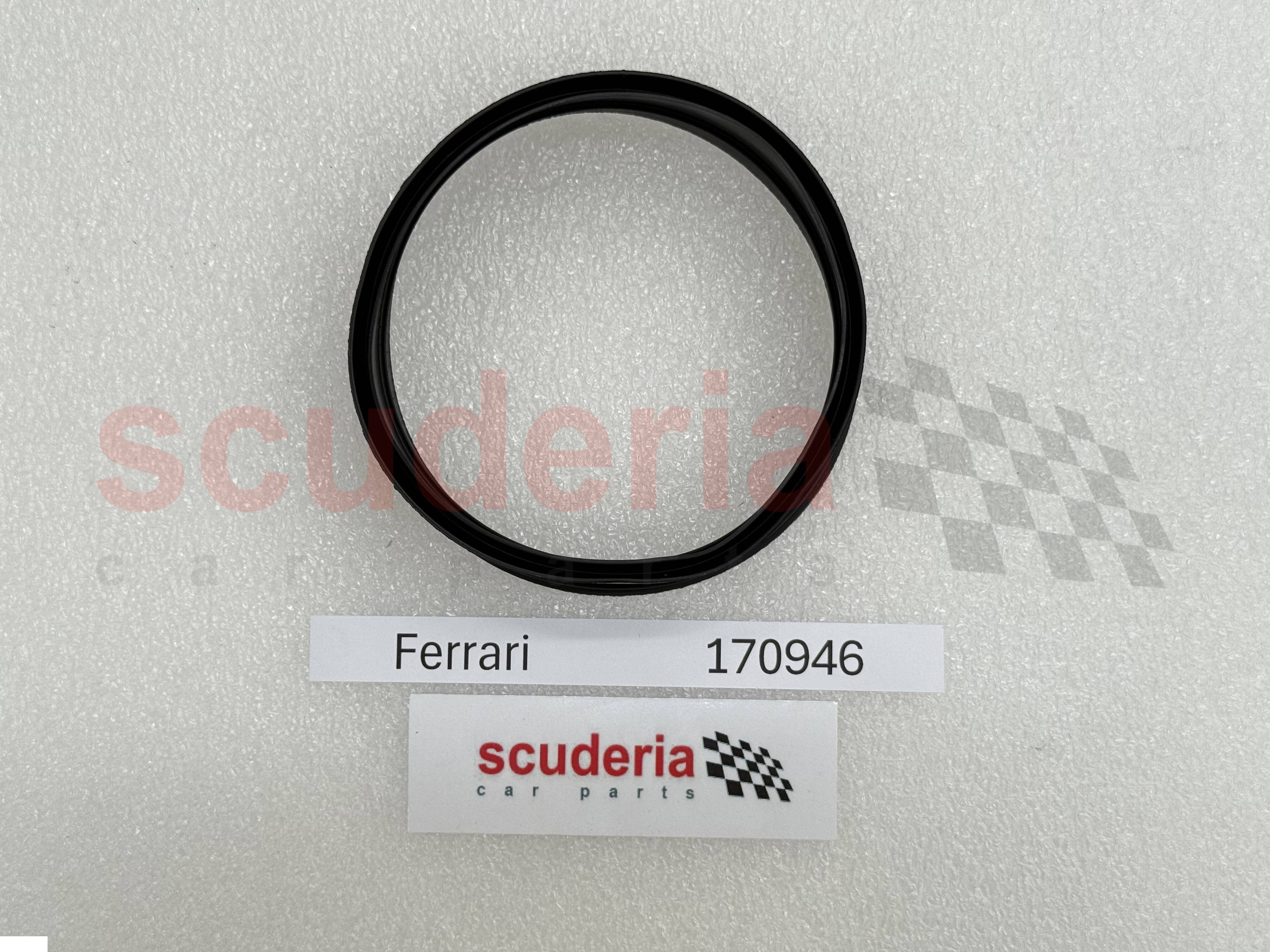

170946 FUEL PUMP SEAL $10.69 IN STOCK
Photo Part No Description Price (each) Stock
182900 DISAREATOR $102.77 To Order
Photo Part No Description Price (each) Stock
178430 FASTENER CLIP $0.37 IN STOCK
Photo Part No Description Price (each) Stock
160855 GROUND CABLE $191.86 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
View All

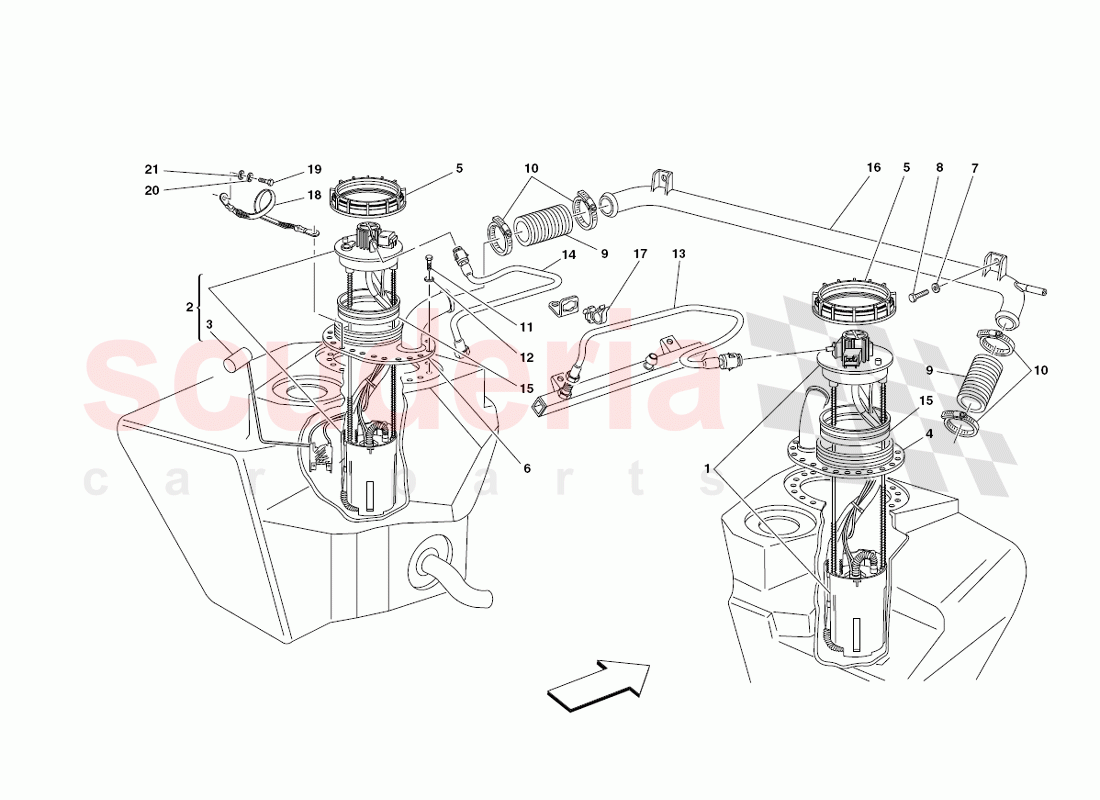

Fuel Pumps and Pipes of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 239814
RH Fuel Pump
use on exhaustion of: 164146
IN STOCK 		$518.16 1
1 239814
RH Fuel Pump
use part number: 239814
IN STOCK 		$518.16 1
2 239815
L.H. COMPLETE FUEL PUMP AND 		$532.14 1
3 194140
FUEL LEVEL INDICATOR
IN STOCK 		$167.98 1
4 182501
R.H. PUMP SUPPORT COVER 		$2,000.68 1
5 170945
RING NUT 		$32.37 2
6 182502
L.H. PUMP SUPPORT COVER 		$2,000.68 1
7 12643724
WASHER
(minimum order quantity = 20)
IN STOCK 		$0.06 (88% off) 2
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
9 183103
CONNECTION SLEEVE 		$102.31 2
10 13001690
SCREW COLLAR 		$1.19 4
11 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 38
12 11197774
WASHER
IN STOCK 		$0.06 (80% off) 38
13 221434
RH FUEL DELIVERY TUBE 		$44.75 1
14 221435
LH FUEL DELIVERY TUBE 		$44.75 1
15 170946
FUEL PUMP SEAL
IN STOCK 		$10.69 (56% off) 2
16 182900
DISAREATOR 		$102.77 1
17 178430
FASTENER CLIP
IN STOCK 		$0.37 (50.7% off) 4
18 160855
GROUND CABLE 		$191.86 2
19 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
21 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
