Ferrari 12Cilindri - REAR SHIELDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
874147 REAR SUBFRAME FLAT UNDERTRAY $877.02 To Order
55056725 REAR SUBFRAME FLAT UNDERTRAY $915.15 To Order
Photo Part No Description Price (each) Stock
971623 SCREW $1.95 To Order
55042970 SCREW $1.95 To Order
Photo Part No Description Price (each) Stock
782611 RH REAR DAM $200.85 To Order
Photo Part No Description Price (each) Stock
782612 LH REAR DAM $200.85 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
911975 WASHER $0.35 To Order
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
55046083 RH REAR DAM, FRONT PART $109.29 To Order
Photo Part No Description Price (each) Stock
55046084 RH REAR DAM, REAR PART $101.67 To Order
Photo Part No Description Price (each) Stock
55046081 LH REAR DAM, FRONT PART $109.29 To Order
Photo Part No Description Price (each) Stock
55046082 LH REAR DAM, REAR PART $101.67 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
911975 WASHER $0.35 To Order
View All

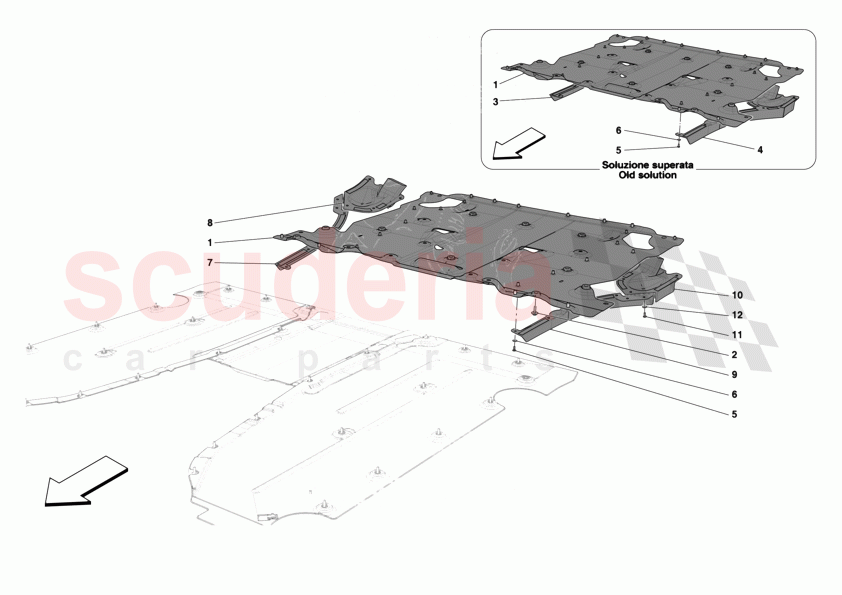

REAR SHIELDS of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 874147
REAR SUBFRAME FLAT UNDERTRAY
Not applicable for: NIRL; Applicable up to Ass. No. 242208 		$877.02 1
1 55056725
REAR SUBFRAME FLAT UNDERTRAY
Applicable from Ass. No. 242209 		$915.15 1
2 971623
SCREW 		$1.95 18
2 55042970
SCREW 		$1.95 18
3 782611
RH REAR DAM
Applicable up to Ass. No. 242892 		$200.85 1
4 782612
LH REAR DAM
Applicable up to Ass. No. 242892 		$200.85 1
5 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 14
6 911975
WASHER
D. 5.50 - 15 X 1 		$0.35 20
6 860172
WASHER 		- 20 Enquire
7 55046083
RH REAR DAM, FRONT PART
For vehicles up to Ass.ly No. 242892 also order RH rear part of dam 55046084 ref. 8, LH rear part of dam 55046082 ref. 10, LH front part of dam 55046081 ref. 9, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893 		$109.29 1
8 55046084
RH REAR DAM, REAR PART
For vehicles up to Ass.ly No. 242892 also order RH front part of dam 55046083 ref. 7, LH rear part of dam 5046082 ref. 10, LH front part of dam 55046081 ref. 9, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893 		$101.67 1
9 55046081
LH REAR DAM, FRONT PART
For vehicles up to Ass.ly No. 242892 also order LH rear part of dam 55046082 ref. 10, RH rear part of dam 55046084 ref. 8, RH front part of dam 55046083 ref. 7, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893 		$109.29 1
10 55046082
LH REAR DAM, REAR PART
For vehicles up to Ass.ly No. 242892 also order LH front part of dam 55046081 ref. 9, RH rear part of dam 55046084 ref. 8, RH front part of dam 55046083 ref. 7, base 55056725 ref. 1, screw 85833900 ref. 11 and washer 14447078 ref. 12; Applicable from Ass. No. 242893 		$101.67 1
11 11566224
SCREW
M5 X 16; Applicable from Ass. No. 242893
IN STOCK 		$0.34 6
12 911975
WASHER
D. 5.50 - 15 X 1; Applicable from Ass. No. 242893 		$0.35 6
