Ferrari 12Cilindri - A/C SYSTEM - EVAPORATOR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
886128 COMPL. AC UNIT $2,902.70 To Order
781682 COMPL. AC UNIT $2,748.20 To Order
Photo Part No Description Price (each) Stock
88712600 TEMPERATURE SENSOR $19.14 To Order
Photo Part No Description Price (each) Stock
819834 EVAPORATOR SENSOR $10.61 To Order
Photo Part No Description Price (each) Stock
819838 FIREWALL SEAL $49.38 To Order
Photo Part No Description Price (each) Stock
819840 RH LATERAL VENT ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819839 LH LATERAL VENT ACTUATOR $111.43 To Order
Photo Part No Description Price (each) Stock
819844 RH HEATER ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819843 LH HEATER ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819845 DEFROSTER ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819847 RH CENTRAL VENT ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819846 LH CENTRAL VENT ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819849 RH TEMPERATURE ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819848 LH TEMPERATURE ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819850 AIR INLET ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819852 RECIRCULATION ACTUATOR $121.56 To Order
Photo Part No Description Price (each) Stock
819853 AIR INLET SEAL $14.36 To Order
Photo Part No Description Price (each) Stock
819854 POLLEN FILTER COVER PANEL $78.50 To Order
Photo Part No Description Price (each) Stock
68389800 RUBBER PAD $7.70 To Order
Photo Part No Description Price (each) Stock
819855 FAN $975.16 To Order
Photo Part No Description Price (each) Stock
819837 SCREW $4.05 To Order
Photo Part No Description Price (each) Stock
819859 DEFROST DUCT SEALING TAPE $14.36 To Order
Photo Part No Description Price (each) Stock
819860 CLIP $3.54 To Order
Photo Part No Description Price (each) Stock
819861 EXPANSION VALVE $78.70 To Order
Photo Part No Description Price (each) Stock
819881 PLATE $16.04 To Order
Photo Part No Description Price (each) Stock
819882 1/2รขโ‚ฌย SEAL WASHER $4.64 To Order
Photo Part No Description Price (each) Stock
819883 5/8รขโ‚ฌย WASHER $21.11 To Order
Photo Part No Description Price (each) Stock
819885 SCREW $37.14 To Order
Photo Part No Description Price (each) Stock
819888 WIRING HARNESS $303.93 To Order
Photo Part No Description Price (each) Stock
819887 ANTI-POLLEN FILTER $39.77 ARRIVING SOON
Photo Part No Description Price (each) Stock
55022223 DELIVERY PIPE $86.11 To Order
989846 DELIVERY PIPE $72.16 To Order
Photo Part No Description Price (each) Stock
886147 RH BRACKET FASTENING HVAC TO MEMBER $34.18 To Order
Photo Part No Description Price (each) Stock
886132 LH BRACKET FASTENING HVAC TO MEMBER $32.91 To Order
Photo Part No Description Price (each) Stock
886195 CONDENSATE DRAIN PIPE $67.11 To Order
Photo Part No Description Price (each) Stock
82118300 SCREW -No longer supplied- -Replaced by 11625714- $0.49 To Order
Photo Part No Description Price (each) Stock
839918 AC AIR QUALITY SENSOR $92.54 To Order
Photo Part No Description Price (each) Stock
89274100 TEMPERATURE SENSOR $86.15 To Order
Photo Part No Description Price (each) Stock
13000390 Screw Collar $0.69 IN STOCK
Photo Part No Description Price (each) Stock
841432 INTERNAL PARTICULATE SENSOR $361.68 To Order
Photo Part No Description Price (each) Stock
55001707 IONISING UNIT WIRING HARNESS $227.95 To Order
Photo Part No Description Price (each) Stock
888456 DOUBLE-SIDED ADHESIVE STRIP FOR IONISING UNIT $4.46 To Order
Photo Part No Description Price (each) Stock
766562 IONISING UNIT E-BOX $189.95 To Order
Photo Part No Description Price (each) Stock
886258 RETURN PIPE $59.50 To Order
989831 RETURN PIPE $78.50 To Order
Photo Part No Description Price (each) Stock
766563 EXTERNAL PARTICULATE SENSOR $361.68 To Order
Photo Part No Description Price (each) Stock
886297 BRACKET $44.31 To Order
989837 BRACKET $43.04 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
887227 EXTERNAL PARTICULATE SENSOR COVER $32.91 To Order
Photo Part No Description Price (each) Stock
887370 90ร‚ยฐ UNION $30.38 To Order
View All

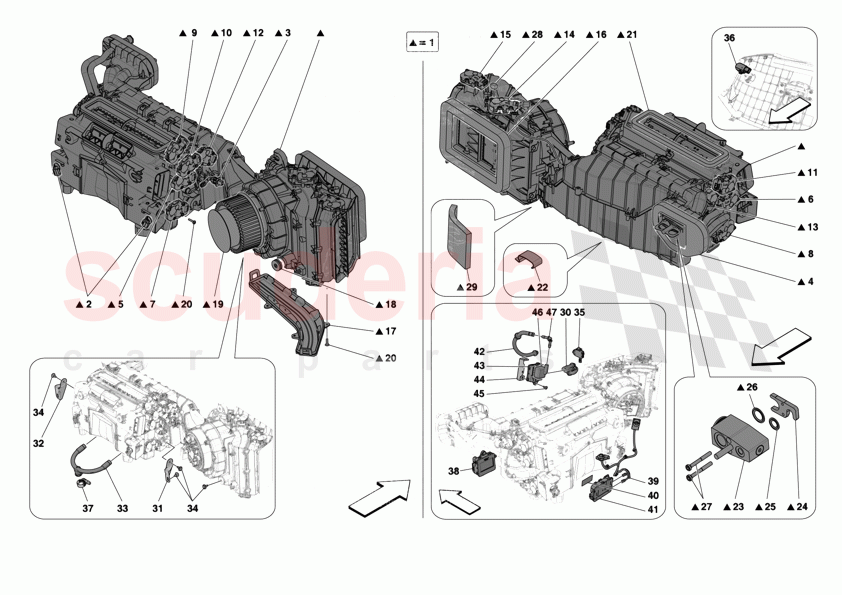

A/C SYSTEM - EVAPORATOR of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 886128
COMPL. AC UNIT
Not applicable for: GD 		$2,902.70 1
1 781682
COMPL. AC UNIT
Applicable for: GD 		$2,748.20 1
2 88712600
TEMPERATURE SENSOR 		$19.14 2
3 819834
EVAPORATOR SENSOR 		$10.61 1
4 819838
FIREWALL SEAL 		$49.38 1
5 819840
RH LATERAL VENT ACTUATOR 		$121.56 1
6 819839
LH LATERAL VENT ACTUATOR 		$111.43 1
7 819844
RH HEATER ACTUATOR 		$121.56 1
8 819843
LH HEATER ACTUATOR 		$121.56 1
9 819845
DEFROSTER ACTUATOR 		$121.56 1
10 819847
RH CENTRAL VENT ACTUATOR 		$121.56 1
11 819846
LH CENTRAL VENT ACTUATOR 		$121.56 1
12 819849
RH TEMPERATURE ACTUATOR 		$121.56 1
13 819848
LH TEMPERATURE ACTUATOR 		$121.56 1
14 819850
AIR INLET ACTUATOR 		$121.56 1
15 819852
RECIRCULATION ACTUATOR 		$121.56 1
16 819853
AIR INLET SEAL 		$14.36 1
17 819854
POLLEN FILTER COVER PANEL 		$78.50 1
18 68389800
RUBBER PAD 		$7.70 2
19 819855
FAN 		$975.16 1
20 819837
SCREW 		$4.05 9
21 819859
DEFROST DUCT SEALING TAPE 		$14.36 1
22 819860
CLIP 		$3.54 3
23 819861
EXPANSION VALVE 		$78.70 1
24 819881
PLATE 		$16.04 1
25 819882
1/2รขโ‚ฌย SEAL WASHER 		$4.64 1
26 819883
5/8รขโ‚ฌย WASHER 		$21.11 1
27 819885
SCREW 		$37.14 2
28 819888
WIRING HARNESS 		$303.93 1
29 819887
ANTI-POLLEN FILTER
ARRIVING SOON 		$39.77 1
30 55022223
DELIVERY PIPE
Not applicable for: GD 		$86.11 1
30 989846
DELIVERY PIPE
Applicable for: GD 		$72.16 1
31 886147
RH BRACKET FASTENING HVAC TO MEMBER 		$34.18 1
32 886132
LH BRACKET FASTENING HVAC TO MEMBER 		$32.91 1
33 886195
CONDENSATE DRAIN PIPE 		$67.11 1
34 82118300
SCREW -No longer supplied- -Replaced by 11625714-
M6 X 16 		$0.49 8
35 839918
AC AIR QUALITY SENSOR 		$92.54 1
36 89274100
TEMPERATURE SENSOR 		$86.15 1
37 13000390
Screw Collar
IN STOCK 		$0.69 (65.5% off) 1
38 841432
INTERNAL PARTICULATE SENSOR
Version with air quality sensor 		$361.68 1
39 55001707
IONISING UNIT WIRING HARNESS
Version with air quality sensor 		$227.95 1
40 888456
DOUBLE-SIDED ADHESIVE STRIP FOR IONISING UNIT
Version with air quality sensor 		$4.46 1
41 766562
IONISING UNIT E-BOX
Version with air quality sensor 		$189.95 1
42 886258
RETURN PIPE
Not applicable for: GD 		$59.50 1
42 989831
RETURN PIPE
Applicable for: GD 		$78.50 1
43 766563
EXTERNAL PARTICULATE SENSOR 		$361.68 1
44 886297
BRACKET
Not applicable for: GD 		$44.31 1
44 989837
BRACKET
Applicable for: GD 		$43.04 1
45 16281827
SCREW
M5 X 14 		$0.21 3
46 887227
EXTERNAL PARTICULATE SENSOR COVER 		$32.91 1
47 887370
90ร‚ยฐ UNION 		$30.38 1
