Dashboard - Ducts -Not For Rhd-

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - DASHBOARD - DUCTS -Not for RHD-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
823045 COMPL. DEFROSTER DUCT $936.83 To Order
Photo Part No Description Price (each) Stock
823035 COMPL. CENTRE AIR DUCT $215.21 To Order
993235 COMPL. CENTRE AIR DUCT $227.87 To Order
Photo Part No Description Price (each) Stock
822996 RH PASSENGER AIR DUCT $202.54 To Order
Photo Part No Description Price (each) Stock
822855 LH DRIVER AIR DUCT $177.23 To Order
Photo Part No Description Price (each) Stock
89223200 PASSENGER SIDE FOOTWELL VENTILATION DUCT $89.86 To Order
Photo Part No Description Price (each) Stock
823229 COMPL. DRIVER SIDE FOOTWELL VENTILATION DUCT $303.82 To Order
Photo Part No Description Price (each) Stock
823005 RH PASSENGER VENT CONNECTOR $10.11 To Order
Photo Part No Description Price (each) Stock
823003 RH VENT SEAL Enquire To Order
Photo Part No Description Price (each) Stock
822879 LH DRIVER VENT CONNECTOR $25.30 To Order
Photo Part No Description Price (each) Stock
822925 LH VENT SEAL $19.79 To Order
Photo Part No Description Price (each) Stock
888918 RH HVAC CONNECTOR $17.71 To Order
Photo Part No Description Price (each) Stock
822880 DRIVER SIDE HVAC CONNECTOR $16.44 To Order
Photo Part No Description Price (each) Stock
823002 PASSENGER SIDE TEMPERATURE SENSOR FASTENER BRACKET $34.17 To Order
Photo Part No Description Price (each) Stock
822881 DRIVER SIDE TEMPERATURE SENSOR FASTENER BRACKET $12.64 To Order
Photo Part No Description Price (each) Stock
946493 RIVET $0.18 To Order
View All

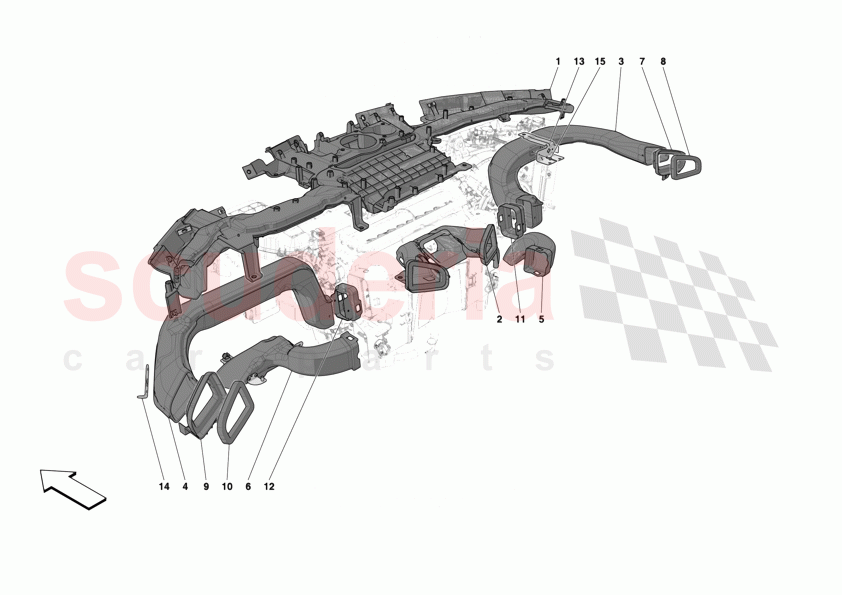

DASHBOARD - DUCTS -Not for RHD- of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 823045
COMPL. DEFROSTER DUCT
Not applicable for: GD 		$936.83 1
2 823035
COMPL. CENTRE AIR DUCT
Not applicable for: GD 		$215.21 1
2 993235
COMPL. CENTRE AIR DUCT
Version with air quality sensor; Not applicable for: GD 		$227.87 1
3 822996
RH PASSENGER AIR DUCT
Not applicable for: GD 		$202.54 1
4 822855
LH DRIVER AIR DUCT
Not applicable for: GD 		$177.23 1
5 89223200
PASSENGER SIDE FOOTWELL VENTILATION DUCT
Not applicable for: GD 		$89.86 1
6 823229
COMPL. DRIVER SIDE FOOTWELL VENTILATION DUCT
Not applicable for: GD 		$303.82 1
7 823005
RH PASSENGER VENT CONNECTOR
Not applicable for: GD 		$10.11 1
8 823003
RH VENT SEAL
Passenger side; Not applicable for: GD 		- 1 Enquire
9 822879
LH DRIVER VENT CONNECTOR
Not applicable for: GD 		$25.30 1
10 822925
LH VENT SEAL
Driver side; Not applicable for: GD 		$19.79 1
11 888918
RH HVAC CONNECTOR
Not applicable for: GD 		$17.71 1
12 822880
DRIVER SIDE HVAC CONNECTOR
Not applicable for: GD 		$16.44 1
13 823002
PASSENGER SIDE TEMPERATURE SENSOR FASTENER BRACKET
Not applicable for: GD 		$34.17 1
14 822881
DRIVER SIDE TEMPERATURE SENSOR FASTENER BRACKET
Not applicable for: GD 		$12.64 1
15 946493
RIVET
Not applicable for: GD 		$0.18 4
