Fuel Filler Seat

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - FUEL FILLER SEAT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985821363 COMPL. FUEL FILLER FLAP $379.67 To Order
Photo Part No Description Price (each) Stock
775993 COMPL. INNER CARRIER $44.28 To Order
Photo Part No Description Price (each) Stock
821387 COMPL. FUEL FILLER FLAP HINGE $392.34 To Order
Photo Part No Description Price (each) Stock
89290600 FUEL FILLER FLAP RUBBER BLOCK $17.71 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
911975 WASHER $0.35 To Order
Photo Part No Description Price (each) Stock
55018643 GASKET $10.58 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $706.21 IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
973837 FUEL FILLER ACTUATOR MOUNT $164.52 To Order
Photo Part No Description Price (each) Stock
88436500 COMPL. PUSH-PUSH $112.63 To Order
Photo Part No Description Price (each) Stock
89180500 GASKET $9.17 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
15516204 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
819492 FUEL DRAIN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
811419 BRACKET WITH SHEATH $18.97 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
819518 COMPL. RIGID FUEL DRAIN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
10716470 COLLAR $1.10 IN STOCK
Photo Part No Description Price (each) Stock
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
10450490 BRACKET WITH SHEATH $0.53 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
View All

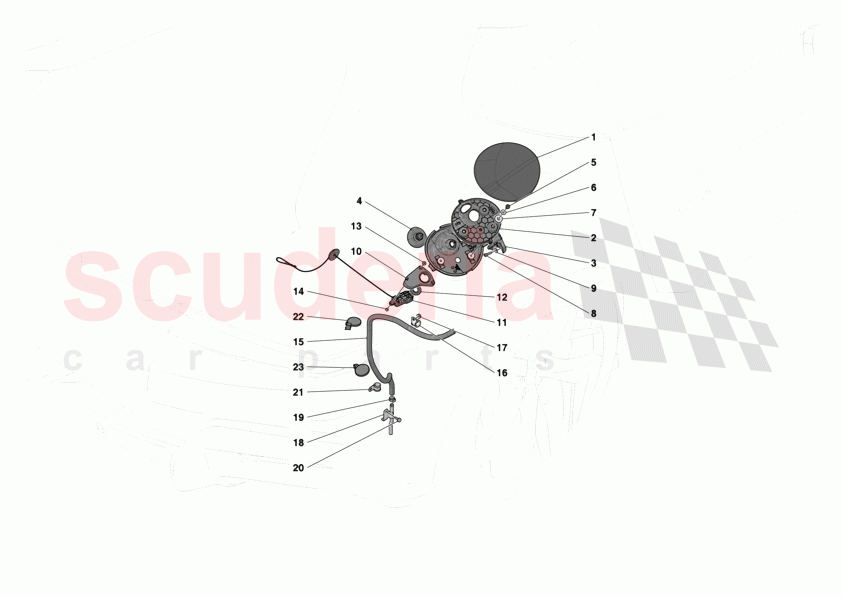

FUEL FILLER SEAT of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985821363
COMPL. FUEL FILLER FLAP 		$379.67 1
2 775993
COMPL. INNER CARRIER 		$44.28 1
3 821387
COMPL. FUEL FILLER FLAP HINGE
Also order refuelling procedure label tab.92 ref.2 - For CHINA market also order fuel specifications label tab.92 ref.20 - Also order unleaded gasoline/petrol adhesive label. tab.92 ref. 34 not applicable for EUR, USA, WA, VNM, UK market - For EUR, AUS, VNM, UK market alsoร‚ย order fuels label tab.92 ref.3 		$392.34 1
4 89290600
FUEL FILLER FLAP RUBBER BLOCK 		$17.71 1
5 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 4
6 911975
WASHER 		$0.35 3
7 55018643
GASKET 		$10.58 3
8 319201
FUEL FILLER PIPE ASSEMBLY
M5 X 20
IN STOCK 		$706.21 2
9 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
10 973837
FUEL FILLER ACTUATOR MOUNT 		$164.52 1
11 88436500
COMPL. PUSH-PUSH 		$112.63 1
12 89180500
GASKET 		$9.17 1
13 11566224
SCREW
M5 X 10
IN STOCK 		$0.34 2
14 15516204
SCREW
4 X 12 		$0.29 2
15 819492
FUEL DRAIN PIPE 		- 1 Enquire
16 811419
BRACKET WITH SHEATH 		$18.97 1
17 14040614
NUT
IN STOCK 		$0.14 1
18 819518
COMPL. RIGID FUEL DRAIN PIPE 		- 1 Enquire
19 10716470
COLLAR
IN STOCK 		$1.10 2
20 16286124
SCREW
M6 X 20 		$0.35 2
21 10450490
BRACKET WITH SHEATH 		$0.53 (78.4% off) 1
22 177553
CLAMP 		$0.43 (65.6% off) 1
23 303385
CLIP
170 mm
IN STOCK 		$0.26 2
