Find Your Part

Photo Part No Description Price (each) Stock
83111290BAW Carpet assy, trunk side - RH $125.40 To Order
Photo Part No Description Price (each) Stock
83-111291-BAW CARPET ASSY - TRUNK SIDE LH $127.92 To Order
Photo Part No Description Price (each) Stock
83-122459-ABW CARPET ASSY - TRUNK FLOOR REAR $136.33 To Order
83-111294-ABW CARPET ASSY - TRUNK FLOOR REAR $130.60 To Order
Photo Part No Description Price (each) Stock
83-123788-BBW CARPET ASSY-REAR PANEL-TRUNK $110.42 To Order
83-123533-BAW CARPET ASSY-REAR PANEL-TRUNK Enquire To Order
83-123788-BBW CARPET ASSY-REAR PANEL-TRUNK $110.42 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83-111296-BAW TRIM PANEL ASSY - TAIL LAMP RH $64.93 To Order
83-111295-BAW TRIM PANEL ASSY - TAIL LAMP LH $64.93 To Order
Photo Part No Description Price (each) Stock
83-123509-AAW COVER ASSY-SPARE WHEEL WELL $1,317.92 To Order
83-123841-AA LOAD FLOOR - BOOT $868.27 To Order
Photo Part No Description Price (each) Stock
85-82503-PK FIRTREE FASTENER(20) $8.83 To Order
Photo Part No Description Price (each) Stock
83-110940-AA FIRTREE BUTTON $1.44 To Order
Photo Part No Description Price (each) Stock
67-83776 AIR EXTRACTION-TRUNK ASSY VOLANTE $99.73 To Order
Photo Part No Description Price (each) Stock
85-82613 UNDERLAY - CARPET RH $15.71 To Order
Photo Part No Description Price (each) Stock
85-82614 Underlay, carpet - LH $15.71 To Order
Photo Part No Description Price (each) Stock
85-82615 UNDERLAY - CARPET REAR RH $24.98 To Order
85-82616 UNDERLAY - CARPET REAR LH $24.13 To Order
Photo Part No Description Price (each) Stock
83-122457-AA UNDERLAY PACKER - REAR CARPET LH $7.34 To Order
Photo Part No Description Price (each) Stock
83-123891-AB ASSY BOOT LINER - BOOT FLOOR $758.15 To Order
37-123985-AA H/LAMP APERTURE FOAM $4.81 To Order
83-124086-AC ASSY BOOT LINER - BOOT FLOOR $592.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
80-124251-AA CD AUTOCHANGER COVER ASSY $170.86 To Order
80124084AA Cover, CD autochanger Enquire To Order
83140695AA Boot liner, mat (modified) Enquire To Order
Photo Part No Description Price (each) Stock
697595 SCREW M10 x 35 HEX FLANGE HEAD GRADE 8.8 $0.62 To Order
83140496AAW Panel assy, boot side, RH, trimmed Enquire To Order
83140497AAW Panel assy, boot side, LH, trimmed Enquire To Order
...and 33 more part variants. See table on right for more details.

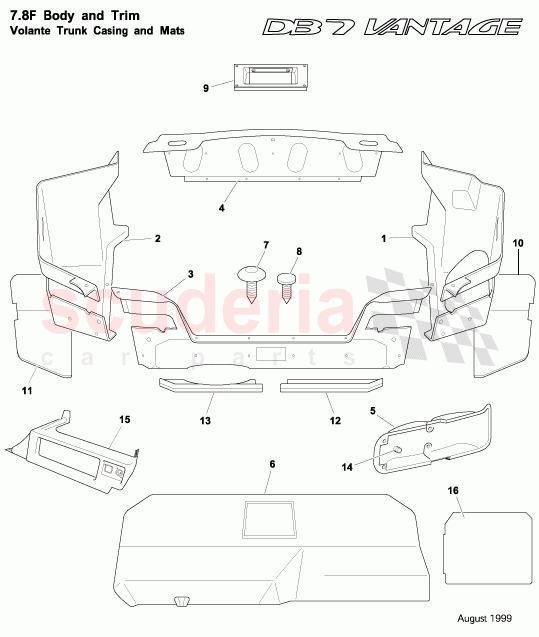

# Part Details Price
(each)
Qty on
Diagram
Add to
Cart
1 83111290BAW
Carpet assy, trunk side - RH
$125.40 1
2 83-111291-BAW
CARPET ASSY - TRUNK SIDE LH
$127.92 1
3 83-122459-ABW
CARPET ASSY - TRUNK FLOOR REAR
Up to (V) 400999
$136.33 1
3 83-111294-ABW
CARPET ASSY - TRUNK FLOOR REAR
From (V) 401002
$130.60 1
4 83-123788-BBW
CARPET ASSY-REAR PANEL-TRUNK
From (V) 300556 Up to (V) 302252
$110.42 1
4 83-123533-BAW
CARPET ASSY-REAR PANEL-TRUNK
Up to (V) 300555
- 1 Enquire
4 83-123788-BBW
CARPET ASSY-REAR PANEL-TRUNK
From (V) 302253
$110.42 1
4 83-111293-BAW
CARPET ASSY - REAR PANEL TRUNK
$120.88 1
5 83-111296-BAW
TRIM PANEL ASSY - TAIL LAMP RH
$64.93 1
5 83-111295-BAW
TRIM PANEL ASSY - TAIL LAMP LH
$64.93 1
6 83-123509-AAW
COVER ASSY-SPARE WHEEL WELL
Up to (V) 400999
$1,317.92 1
6 83-123841-AA
LOAD FLOOR - BOOT
From (V) 401002
$868.27 1
7 85-82503-PK
FIRTREE FASTENER(20)
Trim to body
$8.83 33
8 83-110940-AA
FIRTREE BUTTON
Trim to body
$1.44 16
9 67-83776
AIR EXTRACTION-TRUNK ASSY VOLANTE
$99.73 2
10 85-82613
UNDERLAY - CARPET RH
$15.71 1
11 85-82614
Underlay, carpet - LH
$15.71 1
12 85-82615
UNDERLAY - CARPET REAR RH
Up to (V) 400999
$24.98 1
12 85-82616
UNDERLAY - CARPET REAR LH
From (V) 401002
$24.13 2
13 83-122457-AA
UNDERLAY PACKER - REAR CARPET LH
$7.34 1
14 83-123891-AB
ASSY BOOT LINER - BOOT FLOOR
From (V) 401002 Up to (V) 302252
$758.15 1
14 37-123985-AA
H/LAMP APERTURE FOAM
Boot lid harness retention
$4.81 1
14 83-124086-AC
ASSY BOOT LINER - BOOT FLOOR
From (V) 302253
$592.45 1
14 697552
RETAINER M5
Light covers
$1.79 8
15 80-124251-AA
CD AUTOCHANGER COVER ASSY
From (V) 302253
$170.86 1
15 80124084AA
Cover, CD autochanger
From (V) 302253
- 1 Enquire
15 83140695AA
Boot liner, mat (modified)
Zagato
- 1 Enquire
16 697595
SCREW M10 x 35 HEX FLANGE HEAD GRADE 8.8
Zagato
$0.62 1
16 83140496AAW
Panel assy, boot side, RH, trimmed
Zagato
- 1 Enquire
16 83140497AAW
Panel assy, boot side, LH, trimmed
Zagato
- 1 Enquire
16 83140595AA
Underlay, carpet, boot rear, LH
Zagato
- 1 Enquire
16 83140526AAW
Front boot carpet cover assy
Zagato
- 1 Enquire
16 83140520AAW
Cover assy, boot floor
Zagato
- 1 Enquire
16 83-140514-AA
Liner assy, boot floor
Zagato
$445.56 1
16 83140652AA
Washer, spacer, 112mm
Zagato
- 1 Enquire
16 83140562AA
Foam block, boot, RH
Zagato
- 1 Enquire
16 83140563AA
Foam block, boot, LH
Zagato
- 1 Enquire
16 83-140492-AA
Cover, boot lock
Zagato
$64.61 1
16 83140494AA
Tool tray, boot
Zagato
- 1 Enquire
16 697645
SCREW-SELF DRILLING
Zagato
$0.20 2
16 697516-PK
NUT-M6 HEX BLK (10)
Zagato
$12.12 2
16 37-90075
Cable Tie, 290mm
Zagato
$0.10 2
16 697114
SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8
Zagato
$0.39 3
16 697658
SCREW
Zagato
$0.06 3
16 697516-PK
NUT-M6 HEX BLK (10)
Zagato
$12.12 4
16 83-140508-AA
BRACKET SUPPORT - RH BOOT SIDE
Zagato
$7.04 4
16 83-140509-AA
BRACKET SUPPORT - LH BOOT SIDE
Zagato
$7.04 4
16 83-140510-AAW
ASSEMBLY BOOT BACKBOARD TRIMMED
Zagato
- 4 Enquire
16 83-140507-AA
BRACKET SUPPORT - BOOT SIDE
Zagato
$4.44 4
16 83-140506-AA
BRACKET - BOOT BACKBOARD
Zagato
$6.59 4
16 697570
SCREW No8 x 19 FLANGE HEAD BLACK
Zagato
$0.06 4
16 34-84293
PAD-LOCATION
Zagato
$0.81 4
16 699230
SPRING CLIP
Zagato
$0.27 4
16 703200
SCREW M10x25 HEX FLG CHROME FREE
Zagato
$0.46 5
16 34-81437
PAD
Zagato
$2.42 6
16 697514
WASHER OVAL 1 x 1/2 x 7/32
Zagato
$3.31 8
16 72-82573
SPACER BUMPER
Zagato
$2.00 8
16 83-123927-AA
BOOT LINER - MAT 450X540X2MM
$93.61 1
16 AA608045
Screw, flg, No 8 x 1/2"
- 2 Enquire
16 697669
FASTENER RECEPTACLE DZUS 336 200 190
$2.89 2
16 83123514AA
Catch, fastener
- 2 Enquire
16 697520
RETAINER WASHER-DZUS
$0.85 2
16 699216
RIVET-PLASTIC EXPANSION
$0.69 5
