Bonnet

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Bonnet

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
64140080AA Bonnet assy, Zagato $5,011.48 To Order
64125117AA Bonnet assy, V12, spares Enquire To Order
64125267AB BONNET ASSEMBLY GT $5,960.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6484536 ASSY STRIKER-BONNET $193.53 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
6480766 BONNET HINGE ASSY $335.48 To Order
Photo Part No Description Price (each) Stock
697728 SCREW-S/STEEL $2.76 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.65 IN STOCK
Photo Part No Description Price (each) Stock
697807 Screw, hex hd M8 x 16 - black Enquire To Order
Photo Part No Description Price (each) Stock
695652 WASHER M8 SPRING $0.08 To Order
Photo Part No Description Price (each) Stock
697806 Washer, plain, M8 large 0D Enquire To Order
Photo Part No Description Price (each) Stock
64124014AA GAS STRUT BONNET $53.44 IN STOCK
Photo Part No Description Price (each) Stock
1R12640101AA Ball Stud $5.25 IN STOCK
Photo Part No Description Price (each) Stock
85121478AD BONNET LINER $973.37 To Order
Photo Part No Description Price (each) Stock
8582503PK FIRTREE FASTENER(20) $12.37 To Order
Photo Part No Description Price (each) Stock
6483162 HOOK-BONNET S/CATCH $351.28 To Order
Photo Part No Description Price (each) Stock
6482482 BRACKET-BONNET SAFETY CATCH $16.18 To Order
Photo Part No Description Price (each) Stock
697632 SCREW-M6 x 30 FLG $0.93 To Order
Photo Part No Description Price (each) Stock
6482483 PIVOT PIN SAFETY CATCH $12.51 To Order
Photo Part No Description Price (each) Stock
64123942AA BEARING SPACER - BONNET HOOK $0.19 To Order
Photo Part No Description Price (each) Stock
6482489 SPRING SAFETY CATCH - BONNET $23.07 To Order
Photo Part No Description Price (each) Stock
6482490 CLIP SAFETY 3/16inSHAFT $0.46 To Order
Photo Part No Description Price (each) Stock
6482487 BRACKET SAFETY CATCH $29.19 To Order
Photo Part No Description Price (each) Stock
699106 SCREW M4 x 10 HEX SOCKET $0.49 To Order
Photo Part No Description Price (each) Stock
697431 NUT M4 NYLOC $0.11 To Order
Photo Part No Description Price (each) Stock
78122232AA PANEL - ENGINE BAY RH RHD $368.22 To Order
Photo Part No Description Price (each) Stock
78123455AA PANEL-ENGINE BAY LH LHD MANUAL $362.83 To Order
78122233AA PANEL - ENGINE BAY LH RHD $365.37 To Order
78122230AA PANEL - ENGINE BAY RH LHD $349.44 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699107 STUD-DZUS $9.45 To Order
Photo Part No Description Price (each) Stock
697669 FASTENER RECEPTACLE DZUS 336 200 190 $4.05 IN STOCK
Photo Part No Description Price (each) Stock
698987 SCREW FLG M10x20 BTN SKT HD $2.40 To Order
Photo Part No Description Price (each) Stock
697578 SCREW M10 x 25 FLANGE TORX $3.49 To Order
Photo Part No Description Price (each) Stock
698987 SCREW FLG M10x20 BTN SKT HD $2.40 To Order
Photo Part No Description Price (each) Stock
697258 WASHER M10 PLAIN FORM A $0.36 To Order
Photo Part No Description Price (each) Stock
697406 WASHER M10 SPRING $0.05 To Order
Photo Part No Description Price (each) Stock
697322 NUT M10 HEX $0.44 To Order
Photo Part No Description Price (each) Stock
6486197 LEVER-BONNET RELEASE $4.89 To Order
Photo Part No Description Price (each) Stock
6482492 BRACKET HANDLE RELEASE $3.45 To Order
Photo Part No Description Price (each) Stock
697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8 $1.70 IN STOCK
Photo Part No Description Price (each) Stock
697118 SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE $1.03 To Order
Photo Part No Description Price (each) Stock
6482500 CABLE BONNET RELEASE $110.44 To Order
Photo Part No Description Price (each) Stock

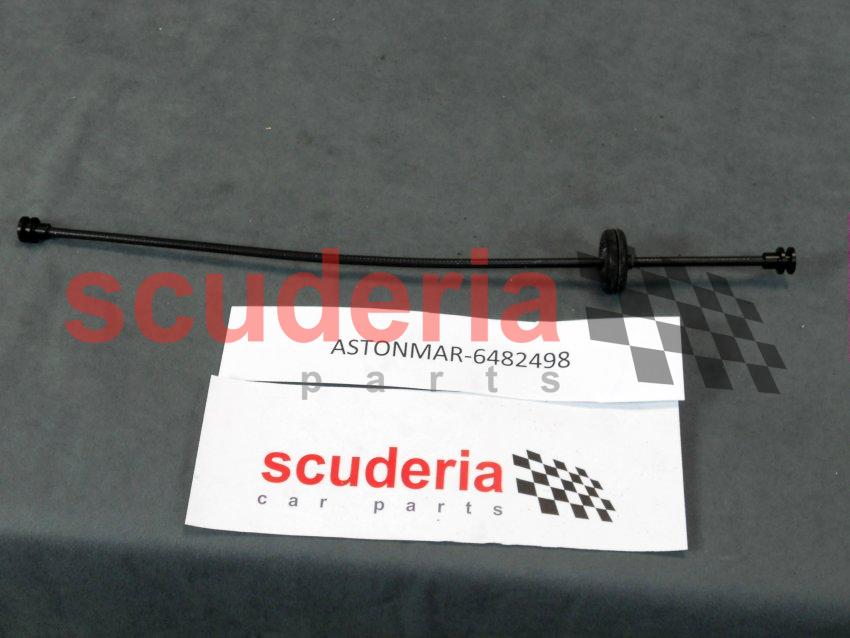

6482498 Assy Sleeve Cable LH $28.82 IN STOCK
Photo Part No Description Price (each) Stock
6482501 Grommet $1.67 To Order
3790075 Cable Tie, 290mm $0.11 IN STOCK
Photo Part No Description Price (each) Stock

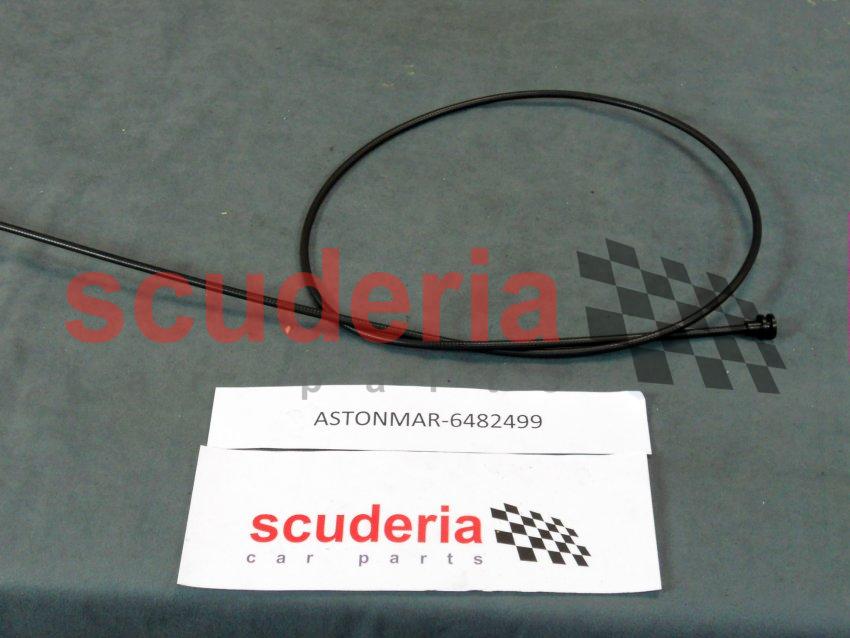

6482499 Assy Sleeve Cable LH to RH $49.00 To Order
Photo Part No Description Price (each) Stock
6482493 ASSY LATCH - BONNET $116.59 To Order
Photo Part No Description Price (each) Stock
6482497 BRKT-CABLE END $9.02 To Order
Photo Part No Description Price (each) Stock
6483192 BONNET LATCH MTG BRACKET RH $18.17 To Order
6483193 BONNET LATCH MTG BRACKET LH $18.17 To Order
Photo Part No Description Price (each) Stock
6482494 PLATE LATCH FIXING $3.28 To Order
Photo Part No Description Price (each) Stock
697807 Screw, hex hd M8 x 16 - black Enquire To Order
Photo Part No Description Price (each) Stock
697516PK NUT-M6 HEX BLK (10) $17.03 To Order
Photo Part No Description Price (each) Stock
7790054 SEAL - BONNET REAR $19.40 To Order
Photo Part No Description Price (each) Stock
7783284 SEAL-SIDE BONNET $71.53 To Order
Photo Part No Description Price (each) Stock
8383563 ASSY-RETAINER WEATHERSTRIP RH $240.17 To Order
8383564 ASSY-RETAINER WEATHERSTRIP LH $541.57 To Order
64125312AB BONNET VENT GRILLE RH GT $189.08 To Order
...and 3 more part variants. See table on right for more details.
View All
Bonnet of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 64140080AA
Bonnet assy, Zagato
Zagato/DBAR1 		$5,011.48 1
1 64125117AA
Bonnet assy, V12, spares
Alternative 		- 1 Enquire
1 64125267AB
BONNET ASSEMBLY GT
GT 		$5,960.69 1
1 64121941AB
BONNET ASSEMBLY-V12 		$7,136.55 1
2 6484536
ASSY STRIKER-BONNET 		$193.53 2
3 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 8
4 6480766
BONNET HINGE ASSY 		$335.48 2
5 697728
SCREW-S/STEEL 		$2.76 8
6 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 8
7 697807
Screw, hex hd M8 x 16 - black 		- 4 Enquire
8 695652
WASHER M8 SPRING 		$0.08 4
9 697806
Washer, plain, M8 large 0D 		- 4 Enquire
10 64124014AA
GAS STRUT BONNET
IN STOCK 		$53.44 2
11 1R12640101AA
Ball Stud
IN STOCK 		$5.25 4
12 85121478AD
BONNET LINER 		$973.37 1
13 8582503PK
FIRTREE FASTENER(20)
Part of bonnet liner 		$12.37 7
14 6483162
HOOK-BONNET S/CATCH 		$351.28 1
15 6482482
BRACKET-BONNET SAFETY CATCH 		$16.18 1
16 697632
SCREW-M6 x 30 FLG 		$0.93 4
17 6482483
PIVOT PIN SAFETY CATCH 		$12.51 1
18 64123942AA
BEARING SPACER - BONNET HOOK 		$0.19 1
19 6482489
SPRING SAFETY CATCH - BONNET 		$23.07 1
20 6482490
CLIP SAFETY 3/16inSHAFT 		$0.46 1
21 6482487
BRACKET SAFETY CATCH 		$29.19 1
22 699106
SCREW M4 x 10 HEX SOCKET 		$0.49 2
23 697431
NUT M4 NYLOC 		$0.11 2
24 78122232AA
PANEL - ENGINE BAY RH RHD
RHD 		$368.22 1
25 78123455AA
PANEL-ENGINE BAY LH LHD MANUAL
LHD 		$362.83 1
25 78122233AA
PANEL - ENGINE BAY LH RHD
RHD 		$365.37 1
25 78122230AA
PANEL - ENGINE BAY RH LHD
LHD 		$349.44 1
25 78122231AA
PANEL - ENGINE BAY LH LHD
LHD 		$325.79 1
25 4180153
BUFFER 		$12.02 2
26 699107
STUD-DZUS 		$9.45 2
27 697669
FASTENER RECEPTACLE DZUS 336 200 190
IN STOCK 		$4.05 4
28 698987
SCREW FLG M10x20 BTN SKT HD 		$2.40 1
29 697578
SCREW M10 x 25 FLANGE TORX 		$3.49 2
30 698987
SCREW FLG M10x20 BTN SKT HD 		$2.40 2
31 697258
WASHER M10 PLAIN FORM A 		$0.36 2
32 697406
WASHER M10 SPRING 		$0.05 2
33 697322
NUT M10 HEX 		$0.44 2
34 6486197
LEVER-BONNET RELEASE 		$4.89 1
35 6482492
BRACKET HANDLE RELEASE 		$3.45 1
36 697320
SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8
IN STOCK 		$1.70 2
37 697118
SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE 		$1.03 3
38 6482500
CABLE BONNET RELEASE 		$110.44 1
39 6482498
Assy Sleeve Cable LH
IN STOCK 		$28.82 2
40 6482501
Grommet
Part of cable sleeve assy 		$1.67 1
40 3790075
Cable Tie, 290mm
IN STOCK 		$0.11 6
41 6482499
Assy Sleeve Cable LH to RH 		$49.00 2
42 6482493
ASSY LATCH - BONNET 		$116.59 2
43 6482497
BRKT-CABLE END 		$9.02 2
44 6483192
BONNET LATCH MTG BRACKET RH 		$18.17 1
44 6483193
BONNET LATCH MTG BRACKET LH 		$18.17 1
45 6482494
PLATE LATCH FIXING 		$3.28 2
46 697807
Screw, hex hd M8 x 16 - black 		- 8 Enquire
47 697516PK
NUT-M6 HEX BLK (10) 		$17.03 8
48 7790054
SEAL - BONNET REAR 		$19.40 1
49 7783284
SEAL-SIDE BONNET 		$71.53 2
50 8383563
ASSY-RETAINER WEATHERSTRIP RH
Zagato 		$240.17 1
50 8383564
ASSY-RETAINER WEATHERSTRIP LH
Zagato 		$541.57 1
50 64125312AB
BONNET VENT GRILLE RH GT
GT 		$189.08 1
50 64125311AB
BONNET VENT GRILLE LH GT
GT 		$189.08 1
50 7783393
SEAL ASSY- BONNET FRONT 		$22.08 1
50 6482485
PLUG 		$0.22 1
