Front Wings

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Front Wings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6282396 BRACKET SUPPORT REAR WING RH $12.66 To Order
6282397 BRACKET SUPPORT REAR WING LH $12.38 To Order
62140064AA ASSEMBLY FRONT WING RH $4,305.47 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R126410183 SUPPORT ASSY- BONNET BUMPER $55.26 To Order
Photo Part No Description Price (each) Stock
699125 SCREW M6 x 30 HEX 8.8 $0.06 To Order
Photo Part No Description Price (each) Stock
697516PK NUT-M6 HEX BLK (10) $17.01 To Order
Photo Part No Description Price (each) Stock
FD43E830667AB WASHER 25MM X 6.4MM BLACK $0.65 IN STOCK
Photo Part No Description Price (each) Stock
697811 WASHER M6 PLAIN LARGE OD S/LESS BLK $0.44 To Order
Photo Part No Description Price (each) Stock
697728 SCREW-S/STEEL $2.76 To Order
Photo Part No Description Price (each) Stock
697118 SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE $1.02 To Order
Photo Part No Description Price (each) Stock
3782038 WASHER 11/16in.od x 1/4in.id x 0.080in.t $7.95 To Order
Photo Part No Description Price (each) Stock
697622 WASHER .20 PLAIN .20 X .75 OD X .04 T $2.71 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
697636 M5 x 20 FLG HD $2.35 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
6282400 SPACER-WING APRON $4.50 To Order
Photo Part No Description Price (each) Stock
697488 SCREW No8 x 16 FLANGED AB S.T. $0.22 To Order
Photo Part No Description Price (each) Stock
697487 NUT INSERT $1.48 To Order
Photo Part No Description Price (each) Stock
7882427 FINISHER GRILLE WING RH $461.99 To Order
7882428 FINISHER GRILLE WING LH $485.06 To Order
78125000AB FINISHER GRILLE WING RH $238.84 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
697295 NUT M4 HEX $0.03 To Order
Photo Part No Description Price (each) Stock
697617 WASHER M4 PLAIN FORM C $0.08 To Order
Photo Part No Description Price (each) Stock
697673 RAWLNUT M5 $0.06 To Order
Photo Part No Description Price (each) Stock
78140068AA FRONT WING MESH GRILLE RH $46.74 To Order
78140069AA FRONT WING MESH GRILLE LH $46.74 To Order
78125386AA MESH GRILLE WING RH - GT $15.91 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
704690 ADHESIVE-TEROSTAT $88.92 To Order
Photo Part No Description Price (each) Stock
3781222 SIDE REPEATER FLASHER $31.40 IN STOCK
Photo Part No Description Price (each) Stock
37123984AA HEADLAMP APERTURE FOAM $6.77 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
78140462AA FOAM STRIP - FRONT WING TO SILL RH $2.16 To Order
78140463AA FOAM STRIP FRONT WING TO SILL $2.16 To Order
7883155 BRACKET ASSY CLOSING LOWER RH $69.58 To Order
...and 9 more part variants. See table on right for more details.
View All

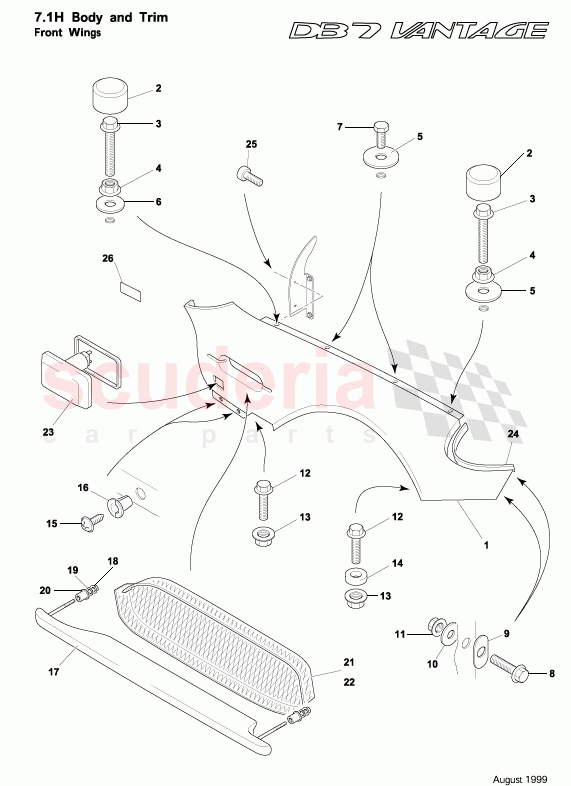

Front Wings of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6282396
BRACKET SUPPORT REAR WING RH
Part of front wing 		$12.66 1
1 6282397
BRACKET SUPPORT REAR WING LH
Part of front wing 		$12.38 1
1 62140064AA
ASSEMBLY FRONT WING RH
Zagato/DBAR1 		$4,305.47 1
1 62140065AA
ASSEMBLY FRONT WING LH
Zagato/DBAR1 		$4,305.47 1
1 62122662AB
FRONT WING ASSY RH 		$4,642.25 1
1 62122663AB
FRONT WING ASSY LH 		$4,642.25 1
2 1R126410183
SUPPORT ASSY- BONNET BUMPER 		$55.26 4
3 699125
SCREW M6 x 30 HEX 8.8 		$0.06 4
4 697516PK
NUT-M6 HEX BLK (10) 		$17.01 4
5 FD43E830667AB
WASHER 25MM X 6.4MM BLACK
IN STOCK 		$0.65 2
6 697811
WASHER M6 PLAIN LARGE OD S/LESS BLK 		$0.44 2
7 697728
SCREW-S/STEEL 		$2.76 8
8 697118
SCREW M5 x 16 HEX FLANGE HEAD GRD 8.8 ZINC PLATE 		$1.02 4
9 3782038
WASHER 11/16in.od x 1/4in.id x 0.080in.t 		$7.95 4
10 697622
WASHER .20 PLAIN .20 X .75 OD X .04 T 		$2.71 4
11 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 4
12 697636
M5 x 20 FLG HD 		$2.35 2
13 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 10
14 6282400
SPACER-WING APRON 		$4.50 10
15 697488
SCREW No8 x 16 FLANGED AB S.T. 		$0.22 4
16 697487
NUT INSERT 		$1.48 4
17 7882427
FINISHER GRILLE WING RH
Up to (V) 303447 		$461.99 1
17 7882428
FINISHER GRILLE WING LH
Up to (V) 303447 		$485.06 1
17 78125000AB
FINISHER GRILLE WING RH
From (V) 303448 		$238.84 1
17 78125001AB
FINISHER GRILLE WING LH
From (V) 303448 		$342.46 1
17 78140070AB
Finisher, wing grille - RH
Zagato/DBAR1 		- 1 Enquire
17 78140071AB
Finisher, wing grille - LH
Zagato/DBAR1 		- 1 Enquire
17 78140093AA
ZAGATO Z BADGE
Zagato/DBAR1 		$69.45 2
17 78140688AA
Push on fix, Z badge
Zagato/DBAR1 		- 4 Enquire
17 696680
TAPE SELF ADHESIVE 35x50M
Zagato/DBAR1 		$126.43 -
18 697295
NUT M4 HEX 		$0.03 4
19 697617
WASHER M4 PLAIN FORM C 		$0.08 4
20 697673
RAWLNUT M5 		$0.06 4
21 78140068AA
FRONT WING MESH GRILLE RH
Zagato/DBAR1 		$46.74 1
21 78140069AA
FRONT WING MESH GRILLE LH
Zagato/DBAR1 		$46.74 1
21 78125386AA
MESH GRILLE WING RH - GT
GT 		$15.91 1
21 78125387AA
MESH GRILLE WING LH - GT
GT 		$16.24 1
21 78121468AA
MESH GRILLE WING RH 		$131.69 1
21 78121469AA
MESH GRILLE WING LH
IN STOCK 		$131.69 1
22 704690
ADHESIVE-TEROSTAT 		$88.92 -
23 3781222
SIDE REPEATER FLASHER
IN STOCK 		$31.40 1
24 37123984AA
HEADLAMP APERTURE FOAM 		$6.77 2
25 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 4
26 78140462AA
FOAM STRIP - FRONT WING TO SILL RH
Zagato/DBAR1 		$2.16 1
26 78140463AA
FOAM STRIP FRONT WING TO SILL
Zagato/DBAR1 		$2.16 1
26 7883155
BRACKET ASSY CLOSING LOWER RH 		$69.58 1
26 7883156
BRACKET ASSY CLOSING LOWER LH 		$21.21 1
26 78125113AA
FRONT WING MOUNTING WASHER 20.5MM 		$15.91 2
26 78125114AA
FRONT WING MOUNTING WASHER 18.5MM 		$15.91 2
26 1R126410183
SUPPORT ASSY- BONNET BUMPER 		$55.26 2
26 3285306
Seal, Radiator Upper 		$15.62 2
26 78123930AA
SUPPORT RUBBER - FINISHER GRILLE-WING 		$0.09 8
26 697811
WASHER M6 PLAIN LARGE OD S/LESS BLK 		$0.44 8
26 78124938AA
Mounting washer, front fender 		- 8 Enquire
26 698988
SCREW M6x20-HEX HEAD BLACK 		$0.66 8
