Aston Martin DB7 Vantage - Volante Roof and Upper Trim

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9384381 HOOD LIFT PUMP $3,137.72 To Order
Photo Part No Description Price (each) Stock
33121998AA MOUTING BRACKET HYDRAULIC PUMP $42.23 To Order
9384387 HOOD PUMP FILLER PLUG $2.80 To Order
9384388 HOOD PUMP RESERVOIR KIT $139.29 To Order
Photo Part No Description Price (each) Stock
697335 NUT M6 HEX $0.38 To Order
Photo Part No Description Price (each) Stock
9384383 HOSE-2200mm TO UPPER RH CYLINDER PORT $458.11 To Order
9384384 HOSE-2200mm TO LOWER RH CYLINDER PORT $458.11 To Order
9384385 HOSE-3000mm TO UPPER LH CYLINDER PORT $458.11 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
9384382 HOOD LIFT CYLINDER $272.95 To Order
Photo Part No Description Price (each) Stock
9389511 PIN CLEVIS $4.46 To Order
Photo Part No Description Price (each) Stock
9389510 CLIP PUSH ON $1.43 To Order
Photo Part No Description Price (each) Stock
9383985 PIN - HOOD CYLINDER FIX $2.00 To Order
Photo Part No Description Price (each) Stock
9383984 LOCK WASHER HOOD CYLINDER FIX $1.13 To Order
Photo Part No Description Price (each) Stock
9383983 CLIP - HOOD CYLINDER FIX $0.71 To Order
Photo Part No Description Price (each) Stock
703200 SCREW M10x25 HEX FLG CHROME FREE $0.66 To Order
Photo Part No Description Price (each) Stock
699121 SCREW-SELF TAPPING $0.46 To Order
Photo Part No Description Price (each) Stock
699122 CUP WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
697487 NUT INSERT $1.48 To Order
Photo Part No Description Price (each) Stock
9389652 LATCH ROOF LCKNG RH $207.05 To Order
9389653 LATCH ROOF LCKNG LH $207.05 To Order
Photo Part No Description Price (each) Stock
83123810BA CUP-HOOD LOCATING PIN RH $264.54 IN STOCK
83123811BA CUP-HOOD LOCATING PIN LH $264.54 To Order
Photo Part No Description Price (each) Stock
9389601 SCREW TORX DRIVE $11.48 To Order
Photo Part No Description Price (each) Stock
8383754 ASSY COMPLETE HEADER TRIMMED $745.94 To Order
Photo Part No Description Price (each) Stock
83124914BAW Finisher assy, 'A' post complete RH Enquire To Order
83124915BAW Finisher assy, 'A' post complete LH Enquire To Order
83140120AAW 'A' post upper assy, complete RH Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8383387 VELCRO DUAL-LOCK SJ3551 (100mm) $1.70 To Order
Photo Part No Description Price (each) Stock
697551 SCREW S.F. $0.03 To Order
92002 RHD DRIVERS SUNVISOR MAIN ASSY $883.36 To Order
92000 LHD DRIVERS SUNVISOR MAIN ASSY $883.36 To Order
Photo Part No Description Price (each) Stock
92001 RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) $883.36 To Order
91999 LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED) $883.36 To Order
Photo Part No Description Price (each) Stock
9790425 AIRBAG WARNING LABEL $2.42 To Order
9790423 AIRBAG WARNING LABEL ENGLISH $3.42 To Order
9790434 AIRBAG WARNING LABEL FRENCH $2.42 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8382812B HOOK-SUNVISOR-BEIGE $29.84 To Order
Photo Part No Description Price (each) Stock
699138 SCREW-SELF TAPP ZINC CLEAR $0.44 To Order
Photo Part No Description Price (each) Stock
6280000806 SCREW No8 x 3/4 PAN $0.47 To Order
Photo Part No Description Price (each) Stock
697532 Nut Spring U Type 8x(2.0-2.8) $2.19 To Order
Photo Part No Description Price (each) Stock
8028896 ADHESIVE PAD-INT MIR $7.76 To Order
8082833 MIRROR ASSY RR VIEW INTERIOR $124.33 To Order
Photo Part No Description Price (each) Stock
8384823 SNAPSAC $0.43 To Order
697517PK WASHER-M6 LGE OD BLK PACK OF 20 $20.85 To Order
697495 SCREW No8 x 13 FLANGED AB S.T $0.09 To Order
...and 6 more part variants. See table on right for more details.
View All

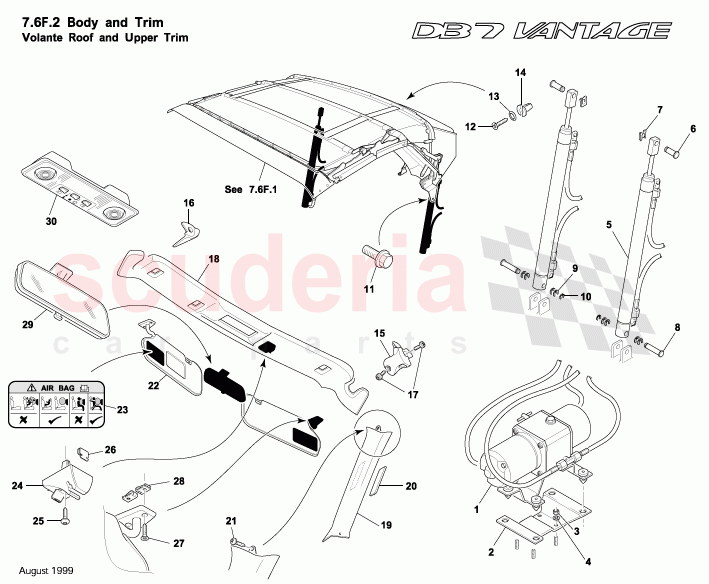

Volante Roof and Upper Trim of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9384381
HOOD LIFT PUMP 		$3,137.72 1
2 33121998AA
MOUTING BRACKET HYDRAULIC PUMP 		$42.23 1
2 9384387
HOOD PUMP FILLER PLUG 		$2.80 1
2 9384388
HOOD PUMP RESERVOIR KIT 		$139.29 1
3 697335
NUT M6 HEX 		$0.38 2
4 9384383
HOSE-2200mm TO UPPER RH CYLINDER PORT
To upper RH cylinder port 		$458.11 1
4 9384384
HOSE-2200mm TO LOWER RH CYLINDER PORT
To lower RH cylinder port 		$458.11 1
4 9384385
HOSE-3000mm TO UPPER LH CYLINDER PORT
To upper LH cylinder port 		$458.11 1
4 9384386
HOSE-3000mm TO LOWER LH CYLINDER PORT
To lower LH cylinder port 		$458.11 1
4 703128
WASHER LOCK M6
IN STOCK 		$1.78 2
4 9362417
Mounting spacer 		- 4 Enquire
4 9362418
Mounting foot 		- 4 Enquire
5 9384382
HOOD LIFT CYLINDER 		$272.95 2
6 9389511
PIN CLEVIS
Lift cyl top fixing 		$4.46 2
7 9389510
CLIP PUSH ON
Lift cyl top fixing 		$1.43 2
8 9383985
PIN - HOOD CYLINDER FIX
Lift cyl lower fixing 		$2.00 2
9 9383984
LOCK WASHER HOOD CYLINDER FIX
Lift cyl lower fixing 		$1.13 2
10 9383983
CLIP - HOOD CYLINDER FIX
Lift cyl lower fixing 		$0.71 4
11 703200
SCREW M10x25 HEX FLG CHROME FREE
Main roof fixing 		$0.66 6
12 699121
SCREW-SELF TAPPING 		$0.46 8
13 699122
CUP WASHER 		$0.08 8
14 697487
NUT INSERT 		$1.48 8
15 9389652
LATCH ROOF LCKNG RH 		$207.05 1
15 9389653
LATCH ROOF LCKNG LH 		$207.05 1
16 83123810BA
CUP-HOOD LOCATING PIN RH
IN STOCK 		$264.54 1
16 83123811BA
CUP-HOOD LOCATING PIN LH 		$264.54 1
17 9389601
SCREW TORX DRIVE
Fixing lower latch 		$11.48 4
18 8383754
ASSY COMPLETE HEADER TRIMMED 		$745.94 1
19 83124914BAW
Finisher assy, 'A' post complete RH
USA From (V) 303448 		- 1 Enquire
19 83124915BAW
Finisher assy, 'A' post complete LH
USA From (V) 303448 		- 1 Enquire
19 83140120AAW
'A' post upper assy, complete RH
Zagato 		- 1 Enquire
19 83140121AAW
'A' post upper assy, complete LH
Zagato 		- 1 Enquire
19 83140126AAW
Trim panel, 'A' post upper, RH
Zagato 		- 1 Enquire
19 83140127AAW
Trim panel, 'A' post upper, LH
Zagato 		- 1 Enquire
19 8383752
COMP ASSY FINISHER `A POST RH
ROW 		$616.98 1
19 8383753
COMP ASSY FINISHER `A POST LH
ROW 		$616.98 1
20 8383387
VELCRO DUAL-LOCK SJ3551 (100mm) 		$1.70 2
21 697551
SCREW S.F.
Header finisher to body 		$0.03 2
21 92002
RHD DRIVERS SUNVISOR MAIN ASSY
RHD 		$883.36 1
21 92000
LHD DRIVERS SUNVISOR MAIN ASSY
LHD 		$883.36 1
22 92001
RHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)
RHD 		$883.36 1
22 91999
LHD PASSENGERS SUNVISOR MAIN ASSY (MIRRORED)
LHD 		$883.36 1
23 9790425
AIRBAG WARNING LABEL
USA/CDN only 		$2.42 2
23 9790423
AIRBAG WARNING LABEL ENGLISH
USA/CDN only 		$3.42 2
23 9790434
AIRBAG WARNING LABEL FRENCH
CDN only 		$2.42 2
23 9790424
AIRBAG WARNING LABEL FRENCH
CDN only 		$3.42 2
24 8382812B
HOOK-SUNVISOR-BEIGE 		$29.84 2
25 699138
SCREW-SELF TAPP ZINC CLEAR 		$0.44 4
26 6280000806
SCREW No8 x 3/4 PAN 		$0.47 4
27 697532
Nut Spring U Type 8x(2.0-2.8) 		$2.19 4
28 8028896
ADHESIVE PAD-INT MIR
Cut to shape 		$7.76 1
28 8082833
MIRROR ASSY RR VIEW INTERIOR 		$124.33 1
29 8384823
SNAPSAC
Zagato 		$0.43 13
29 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Zagato 		$20.85 2
29 697495
SCREW No8 x 13 FLANGED AB S.T
Zagato 		$0.09 2
29 697645
SCREW-SELF DRILLING
Zagato
IN STOCK 		$0.27 4
29 697468
SCREW/WASHER No8 x19 PAN HD AB
Zagato 		$0.66 5
29 697565
Spire Nut
Zagato
IN STOCK 		$0.30 5
29 93100442
ASSY STOWAGE BAG HOOD ENVELOPE - BLK 		$1,506.05 1
29 8384159B
LIGHT-MAP/ROOF BEIGE 		$140.85 1
29 9384583
HOOD STOWAGE ENVELOPE VARIOUS COLOUR/MAT. 		$2,115.79 1
