29 - Emissions System - 29.1 - Secondary Air Injection System

McLaren GT

Find Your Part

McLaren GT - 29 - EMISSIONS SYSTEM - 29.1 - SECONDARY AIR INJECTION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Enquire To Order
Photo Part No Description Price (each) Stock
00RB141 SWIVEL CLIP - FEMALE CSC9 Enquire To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
12F0750CP PUMP - SECONDARY AIR $366.48 To Order
Photo Part No Description Price (each) Stock
13F0335CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH $144.67 To Order
Photo Part No Description Price (each) Stock
11F1785CP BOLT - HEX - M5X10 $6.53 To Order
Photo Part No Description Price (each) Stock
11F1862CP OETIKER CLIP - 26.9 - 30.1MM $7.71 To Order
Photo Part No Description Price (each) Stock
13F0336CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH $144.67 To Order
Photo Part No Description Price (each) Stock
22FA031GP HOSE SECONDARY AIR RH $327.91 To Order
Photo Part No Description Price (each) Stock
22FA032GP HOSE SECONDARY AIR LH $327.91 To Order
Photo Part No Description Price (each) Stock
22FA033GP BRKT LH-SECONDARY AIR PUMP $115.72 To Order
Photo Part No Description Price (each) Stock
22FA034GP BRKT RH-SECONDARY AIR PUMP $115.72 To Order
View All

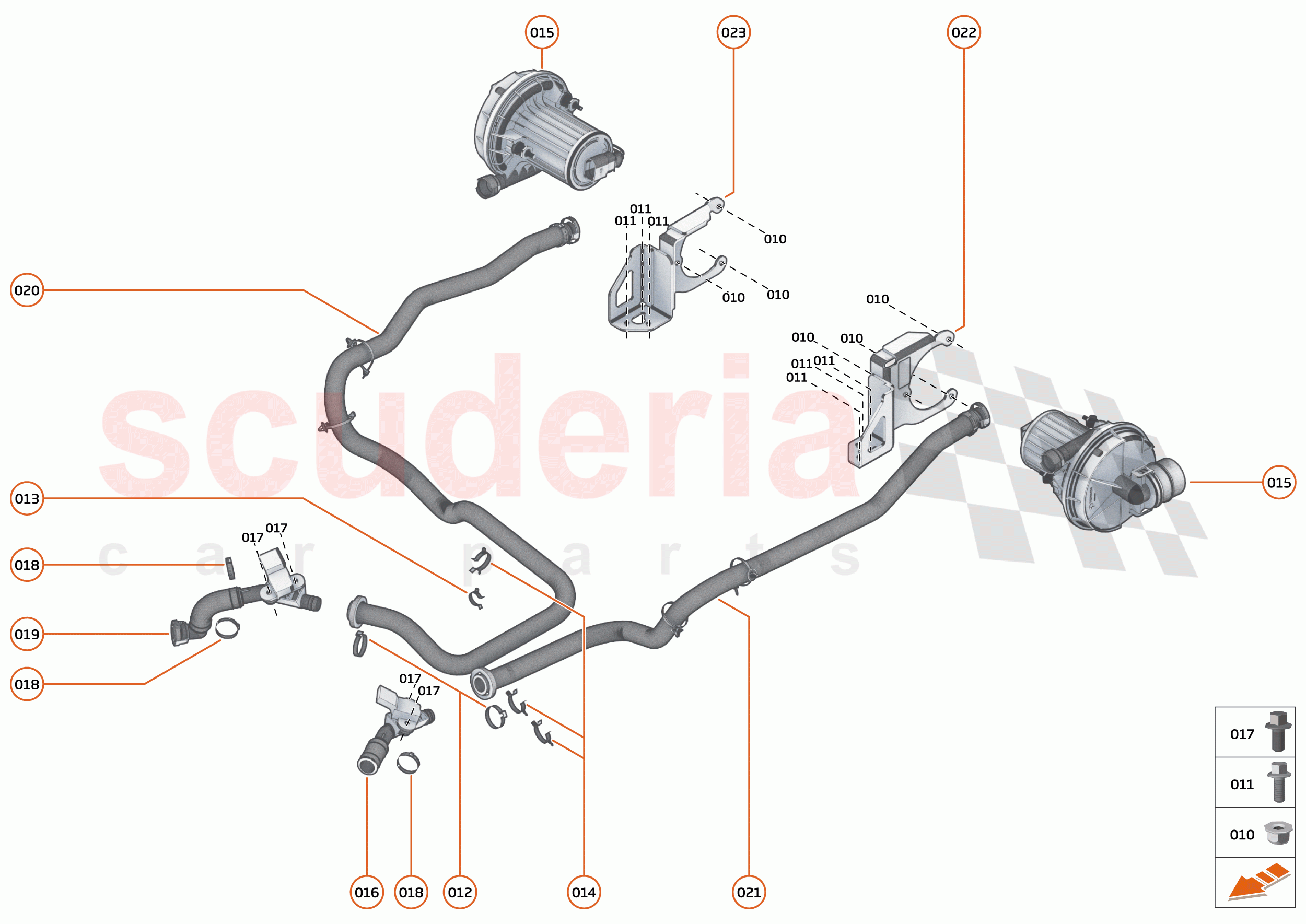

29 - EMISSIONS SYSTEM - 29.1 - SECONDARY AIR INJECTION SYSTEM of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 6 Enquire
011 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
012 00RB137
HOSE CLAMP - 28.6 - 706R - OETIKER 		- 2 Enquire
013 00RB141
SWIVEL CLIP - FEMALE CSC9 		- 2 Enquire
014 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 		- 3 Enquire
015 12F0750CP
PUMP - SECONDARY AIR 		$366.48 2
016 13F0335CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH 		$144.67 1
017 11F1785CP
BOLT - HEX - M5X10 		$6.53 2
018 11F1862CP
OETIKER CLIP - 26.9 - 30.1MM 		$7.71 1
019 13F0336CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH 		$144.67 1
020 22FA031GP
HOSE SECONDARY AIR RH 		$327.91 1
021 22FA032GP
HOSE SECONDARY AIR LH 		$327.91 1
022 22FA033GP
BRKT LH-SECONDARY AIR PUMP 		$115.72 1
023 22FA034GP
BRKT RH-SECONDARY AIR PUMP 		$115.72 1
