32 - Cooling System - 32.2 - High Temp Main Radiators & Fans

McLaren GT

Find Your Part

McLaren GT - 32 - COOLING SYSTEM - 32.2 - HIGH TEMP MAIN RADIATORS & FANS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11L0392CP RADIATOR - ENGINE COOLANT - LH $1,541.77 To Order
Photo Part No Description Price (each) Stock
11A2859CP CONDENSER - HVAC - LH $539.61 To Order
Photo Part No Description Price (each) Stock
22LA013GP BRKT-MNTG-RAD-LWR-AFT-RH $78.76 To Order
Photo Part No Description Price (each) Stock
22LA012GP BRKT-MNTG-RAD-LWR-AFT-LH $91.52 To Order
Photo Part No Description Price (each) Stock
22LA010GP BRKT-MNTG-RAD-UPR-RH $61.53 To Order
Photo Part No Description Price (each) Stock
22LA009GP BRKT-MNTG-RAD-LWR-FORE-LH $51.28 To Order
Photo Part No Description Price (each) Stock
22LA008GP BRKT-MNTG-RAD-UPR-LH $67.43 To Order
Photo Part No Description Price (each) Stock
13L0208CP FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR $478.69 To Order
Photo Part No Description Price (each) Stock
13L0207CP FLAP HOUSING - RADIATOR $163.78 To Order
Photo Part No Description Price (each) Stock
11L0378CP SEAL - RADIATOR TO BODY - FRONT $62.22 To Order
Photo Part No Description Price (each) Stock
11L0377CP SEAL - RADIATOR TO CONDENSER $62.22 To Order
Photo Part No Description Price (each) Stock
11L0376CP RADIATOR - ENGINE COOLANT - RH $1,541.77 To Order
Photo Part No Description Price (each) Stock
11L0250CP SEAL - RADIATOR TO BODY - TOP $40.69 To Order
Photo Part No Description Price (each) Stock
11A7098CP CONDENSER - HVAC - RH $539.61 To Order
Photo Part No Description Price (each) Stock
00RA138 SCREW-TORX HEAD-DIA4X14-TF Enquire To Order
Photo Part No Description Price (each) Stock
00RG024 CABLE TIE - 90 DEG - EDGE PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RG011 GROMMET - DIA 19 - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
00RC074 SPACER - 6.5 X 12.7 X 6.4 Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11L0360CP RADIATOR - ENGINE COOLANT - LH $1,541.77 To Order
Photo Part No Description Price (each) Stock
11L0359CP RADIATOR - ENGINE COOLANT - RH $1,541.77 To Order
View All

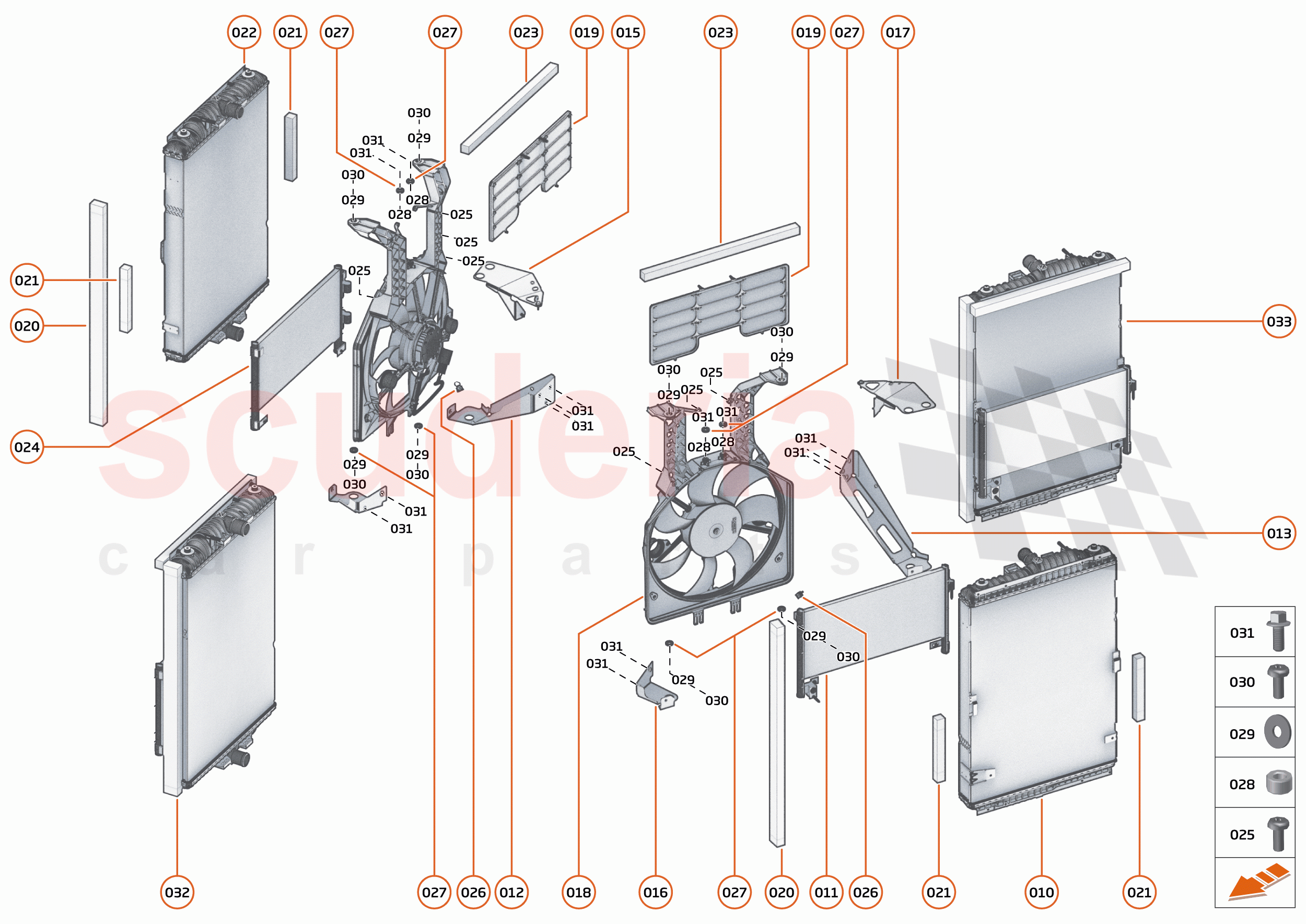

32 - COOLING SYSTEM - 32.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11L0392CP
RADIATOR - ENGINE COOLANT - LH 		$1,541.77 1
011 11A2859CP
CONDENSER - HVAC - LH 		$539.61 1
012 22LA013GP
BRKT-MNTG-RAD-LWR-AFT-RH 		$78.76 1
013 22LA012GP
BRKT-MNTG-RAD-LWR-AFT-LH 		$91.52 1
014 22LA011GP
BRKT-MNTG-RAD-LWR-FORE-RH 		$57.79 1
015 22LA010GP
BRKT-MNTG-RAD-UPR-RH 		$61.53 1
016 22LA009GP
BRKT-MNTG-RAD-LWR-FORE-LH 		$51.28 1
017 22LA008GP
BRKT-MNTG-RAD-UPR-LH 		$67.43 1
018 13L0208CP
FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR 		$478.69 1
019 13L0207CP
FLAP HOUSING - RADIATOR 		$163.78 1
020 11L0378CP
SEAL - RADIATOR TO BODY - FRONT 		$62.22 1
021 11L0377CP
SEAL - RADIATOR TO CONDENSER 		$62.22 2
022 11L0376CP
RADIATOR - ENGINE COOLANT - RH 		$1,541.77 1
023 11L0250CP
SEAL - RADIATOR TO BODY - TOP 		$40.69 1
024 11A7098CP
CONDENSER - HVAC - RH 		$539.61 1
025 00RA138
SCREW-TORX HEAD-DIA4X14-TF 		- 4 Enquire
026 00RG024
CABLE TIE - 90 DEG - EDGE PANEL 		- 1 Enquire
027 00RG011
GROMMET - DIA 19 - RUBBER 		- 1 Enquire
028 00RC074
SPACER - 6.5 X 12.7 X 6.4 		- 2 Enquire
029 00RC043
WASHER - M6XOD25 		- 1 Enquire
030 00RA353
SCREW - 6X14 - THREADFORMING - TORX - FLANGE 		- 2 Enquire
031 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
032 11L0360CP
RADIATOR - ENGINE COOLANT - LH 		$1,541.77 1
033 11L0359CP
RADIATOR - ENGINE COOLANT - RH 		$1,541.77 1
