32 - Cooling System - 32.4 - Low Temperature Circuit & Pipes

McLaren GT

Find Your Part

McLaren GT - 32 - COOLING SYSTEM - 32.4 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11L0204CP HOSE RETURN-LTR CIRCUIT-CTR $425.34 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
14LA035CP HOSE - WATER CHARGE AIR COOLER - INLET - LH $154.66 To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
14L0083CP HOSE - WATER CHARGE AIR COOLER - OUTLET $541.35 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
22LA019GP HOSE FEED-LTR CIRCUIT-CTR $92.07 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
22LA040GP LTR-INLET-HOSE-LH $365.22 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
22LA112GP HOSE-FEED-LTR-FR-RH $145.00 To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
22LA042GP LTR-OLET-HOSE-LH $197.53 To Order
Photo Part No Description Price (each) Stock
22LA041GP LTR-OLET-HOSE-RH $231.99 To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
22LA027GP WCAC INLT HOSE RH $91.82 To Order
Photo Part No Description Price (each) Stock
11L0306CP CLIP-7 WAY RH 24 $16.42 To Order
Photo Part No Description Price (each) Stock
11L0309CP CLIP - 2 WAY - LH $11.57 To Order
Photo Part No Description Price (each) Stock
13L0224CP PIPE CLIP - 5 WAY $12.54 To Order
Photo Part No Description Price (each) Stock
14L0150CP CLIP - CHASSIS TUNNEL $17.37 To Order
Photo Part No Description Price (each) Stock
14L0151CP PIPE CLIP - 8 WAY $14.48 To Order
Photo Part No Description Price (each) Stock
14L0125CP CLIP - TUNNEL - 12 WAY $33.83 To Order
Photo Part No Description Price (each) Stock
13L0214CP PIPE CLIP - REAR - LH $13.51 To Order
Photo Part No Description Price (each) Stock
13L0211CP PIPE CLIP - REAR - RIGHT $43.48 To Order
View All

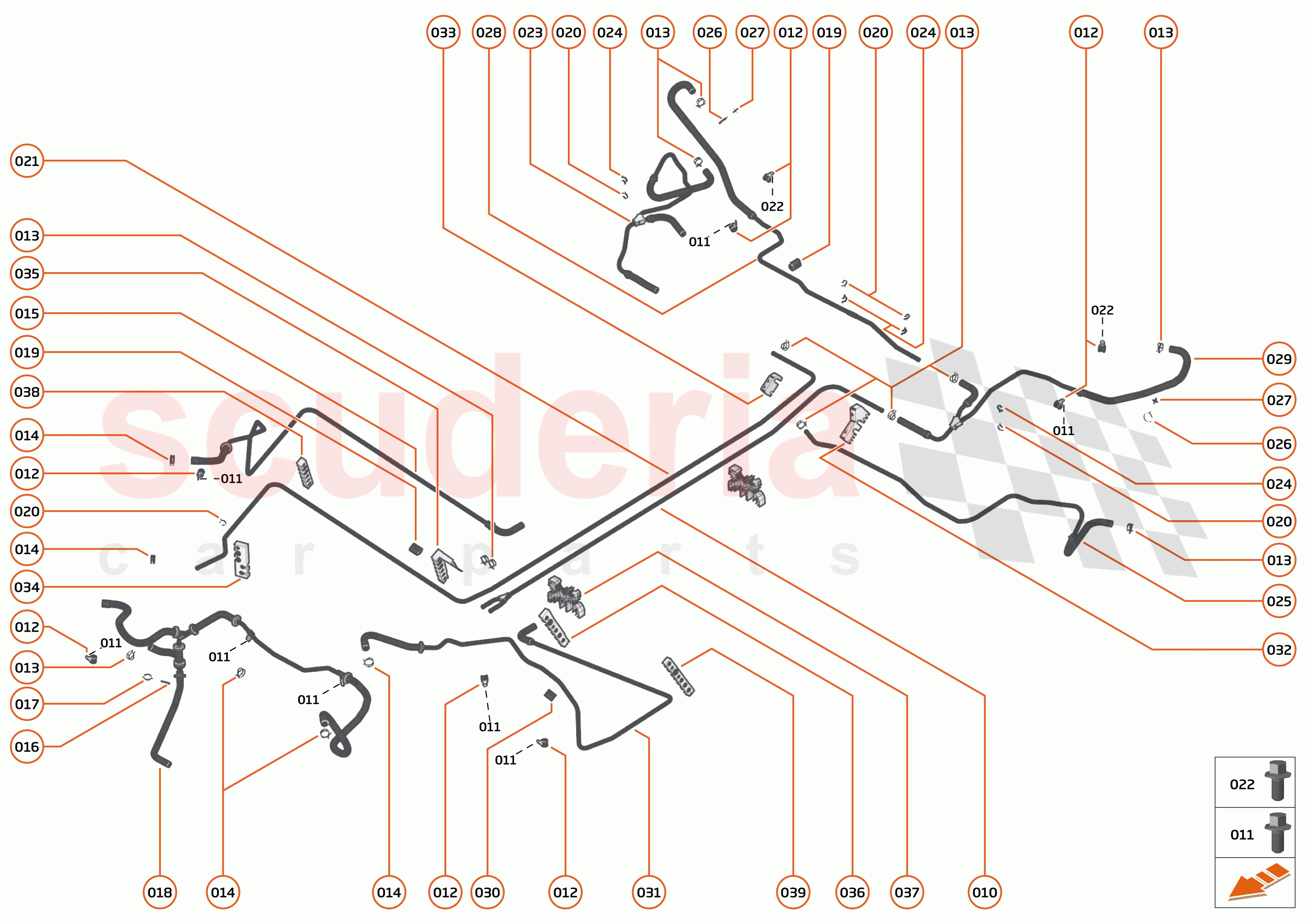

32 - COOLING SYSTEM - 32.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11L0204CP
HOSE RETURN-LTR CIRCUIT-CTR 		$425.34 1
011 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
012 00RB191
P-CLIP - 14X15 		- 2 Enquire
013 00RB201
CLAMP - SPRING BAND - 21X12 		- 1 Enquire
014 00RB202
CLAMP - SPRING BAND - 23X12 		- 2 Enquire
015 14LA035CP
HOSE - WATER CHARGE AIR COOLER - INLET - LH 		$154.66 1
016 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
017 00RB008
CLIP - 18-20MM - MALE 		- 1 Enquire
018 14L0083CP
HOSE - WATER CHARGE AIR COOLER - OUTLET 		$541.35 1
019 00RA357
PIPE PROTECTOR 		- 1 Enquire
020 00RB044
SWIVEL PIPE CLIP - 16MM 		- 1 Enquire
021 22LA019GP
HOSE FEED-LTR CIRCUIT-CTR 		$92.07 1
022 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
023 22LA040GP
LTR-INLET-HOSE-LH 		$365.22 1
024 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
025 22LA112GP
HOSE-FEED-LTR-FR-RH 		$145.00 1
026 00RG018
SWIVEL CLIP - 22-24MM -MALE 		- 1 Enquire
027 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 1 Enquire
028 22LA042GP
LTR-OLET-HOSE-LH 		$197.53 1
029 22LA041GP
LTR-OLET-HOSE-RH 		$231.99 1
030 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
031 22LA027GP
WCAC INLT HOSE RH 		$91.82 1
032 11L0306CP
CLIP-7 WAY RH 24 		$16.42 1
033 11L0309CP
CLIP - 2 WAY - LH 		$11.57 1
034 13L0224CP
PIPE CLIP - 5 WAY 		$12.54 1
035 14L0150CP
CLIP - CHASSIS TUNNEL 		$17.37 1
036 14L0151CP
PIPE CLIP - 8 WAY 		$14.48 1
037 14L0125CP
CLIP - TUNNEL - 12 WAY 		$33.83 2
038 13L0214CP
PIPE CLIP - REAR - LH 		$13.51 1
039 13L0211CP
PIPE CLIP - REAR - RIGHT 		$43.48 1
