McLaren GT - 33 - HVAC - 33.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
28LA004CP HOSE - CONDENSER LATERAL - CENTRE - HVAC Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $443.34 To Order
Photo Part No Description Price (each) Stock
28LA002CP HOSE - RECEIVER DRIER - HVAC - REAR $344.72 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $306.42 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $62.63 To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $72.28 To Order
Photo Part No Description Price (each) Stock
28LA009CP INTERNAL HEAT EXCHANGER UNIT $327.68 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
28LA001CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $91.54 To Order
Photo Part No Description Price (each) Stock
14A3034CP CLIP - HEATER PIPE $63.36 To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A4228CP HOSE - HEATER TO PUMP - HVAC $289.13 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
13LA034CP BRACKET - SUPPORT - HVAC $76.48 To Order
Photo Part No Description Price (each) Stock
14LA045CP HOSE - HEATER TO ENGINE - INCLUDING VALVE $289.13 To Order
Photo Part No Description Price (each) Stock
14A1799CP HOSE - HEATER TO ENGINE - HVAC $269.85 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
22AA945GP ASSY-HOSE-COMPRESSOR-CONDENSOR - 134A $144.56 To Order
22AC290GP ASSY-HOSE-COMPRESSOR-CONDENSOR - 1234YF $134.92 To Order
Photo Part No Description Price (each) Stock
22AA947GP ASSY HOSE-CONDENSOR LATERAL-LH $125.27 To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
22AA949GP ASSY HOSE-CONDENSOR LATERAL-RH-STD $183.11 To Order
Photo Part No Description Price (each) Stock
22AA951GP ASSY-HOSE-CONDENSER-RECIEVER DRIER $144.56 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
22LA052GP ASSY-HOSE-HVAC-COMPRESSOR-REAR R134A $173.46 To Order
Photo Part No Description Price (each) Stock
28LA008CP PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR $134.92 To Order
View All

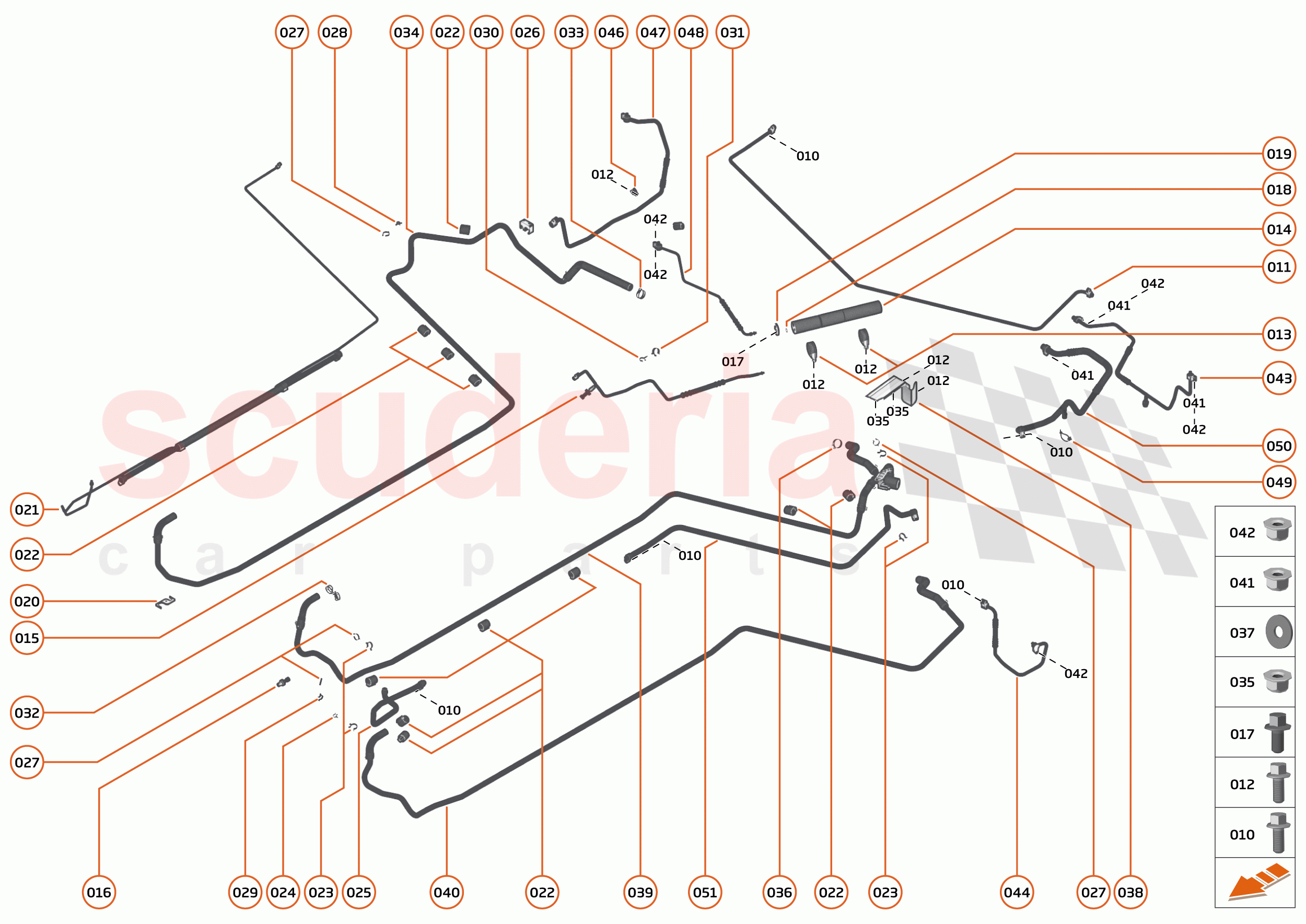

33 - HVAC - 33.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA120
SCREW - M6X25 - HEX 		- 1 Enquire
011 28LA004CP
HOSE - CONDENSER LATERAL - CENTRE - HVAC 		- 1 Enquire
012 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
013 00RB029
P CLIP - DIA 45-M6 		- 1 Enquire
014 12A2757CP
RECEIVER DRIER - HVAC 		$443.34 1
015 28LA002CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$344.72 1
016 11A6627CP
SENSOR - PRESSURE - HVAC 		$306.42 1
017 00RA002
BOLT - M8X20 - HEX 		- 8 Enquire
018 00RC038
WASHER - WAVE M8 		- 1 Enquire
019 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$62.63 1
020 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.28 1
021 28LA009CP
INTERNAL HEAT EXCHANGER UNIT 		$327.68 1
022 00RA367
PIPE PROTECTOR - 19MM ID 		- 2 Enquire
023 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
024 00RB045
CLIP - 9.5-10MM - MALE 		- 1 Enquire
025 28LA001CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER 		$91.54 1
026 14A3034CP
CLIP - HEATER PIPE 		$63.36 1
027 00RB008
CLIP - 18-20MM - MALE 		- 1 Enquire
028 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1 Enquire
029 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
030 00RB034
CLIP - 14-15MM - MALE 		- 1 Enquire
031 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22 		- 1 Enquire
032 00RB202
CLAMP - SPRING BAND - 23X12 		- 2 Enquire
033 00RB204
CLAMP - SPRING BAND - 27X12 		- 1 Enquire
034 14A4228CP
HOSE - HEATER TO PUMP - HVAC 		$289.13 1
035 00RA055
NUT - M6 - LOCKING - HEX 		- 4 Enquire
036 00RB145
CLAMP - SPRING BAND - 26/12 		- 1 Enquire
037 00RC013
WASHER - M6X18X1.6 		- 10 Enquire
038 13LA034CP
BRACKET - SUPPORT - HVAC 		$76.48 1
039 14LA045CP
HOSE - HEATER TO ENGINE - INCLUDING VALVE 		$289.13 1
040 14A1799CP
HOSE - HEATER TO ENGINE - HVAC 		$269.85 1
041 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 6 Enquire
042 00RA075
NUT - M8-8 - HEX 		- 2 Enquire
043 22AA945GP
ASSY-HOSE-COMPRESSOR-CONDENSOR - 134A 		$144.56 1
043 22AC290GP
ASSY-HOSE-COMPRESSOR-CONDENSOR - 1234YF 		$134.92 1
044 22AA947GP
ASSY HOSE-CONDENSOR LATERAL-LH 		$125.27 1
045 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
046 00RB027
P-CLIP - DIAMETER 13 - M6 		- 3 Enquire
047 22AA949GP
ASSY HOSE-CONDENSOR LATERAL-RH-STD 		$183.11 1
048 22AA951GP
ASSY-HOSE-CONDENSER-RECIEVER DRIER 		$144.56 1
049 00RL001
CABLE TIE - FIRTREE BASE 		- 5 Enquire
050 22LA052GP
ASSY-HOSE-HVAC-COMPRESSOR-REAR R134A 		$173.46 1
051 28LA008CP
PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR 		$134.92 1
