McLaren Artura - 23 - ENGINE - 23.7 - SYSTEM - LUBRICATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA364CP TURBO OIL FEED RH $102.05 To Order
Photo Part No Description Price (each) Stock
16FA365CP TURBO OIL FEED LH $103.40 To Order
Photo Part No Description Price (each) Stock
16F0254CP Color codes: FILTER-OIL $52.88 To Order
Photo Part No Description Price (each) Stock
16FA793CP TURBO OIL DRAIN RH $115.40 To Order
Photo Part No Description Price (each) Stock
16FA795CP TURBO OIL DRAIN LH $105.79 To Order
Photo Part No Description Price (each) Stock
16FB913CP OIL PUMP-CNTRSINK SCREW-M5X12 - ISO 10642 $11.52 To Order
16FB920CP OIL PUMP-WATER CHANNEL GASKET - WATER PUMP $52.88 To Order
16FB919CP OIL PUMP-WATER CHANNEL GASKET - CYLINDER BLOCK $52.88 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16FC206CP OIL COOLER - DOUBLE BASE PLATE $482.16 To Order
16FB305CP OIL COOLER - DOUBLE BASE PLATE $832.82 To Order
Photo Part No Description Price (each) Stock
16FA797CP COOLING JET INR-PISTON $73.48 To Order
Photo Part No Description Price (each) Stock
16FA798CP COOLING JET OTR-PISTON $61.89 To Order
Photo Part No Description Price (each) Stock
11F1794CP SCREW - M6X25 HEX $7.69 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.56 To Order
Photo Part No Description Price (each) Stock
16FC131CP SEAL-OIL COOLER - CIRCULAR $9.61 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.48 To Order
View All

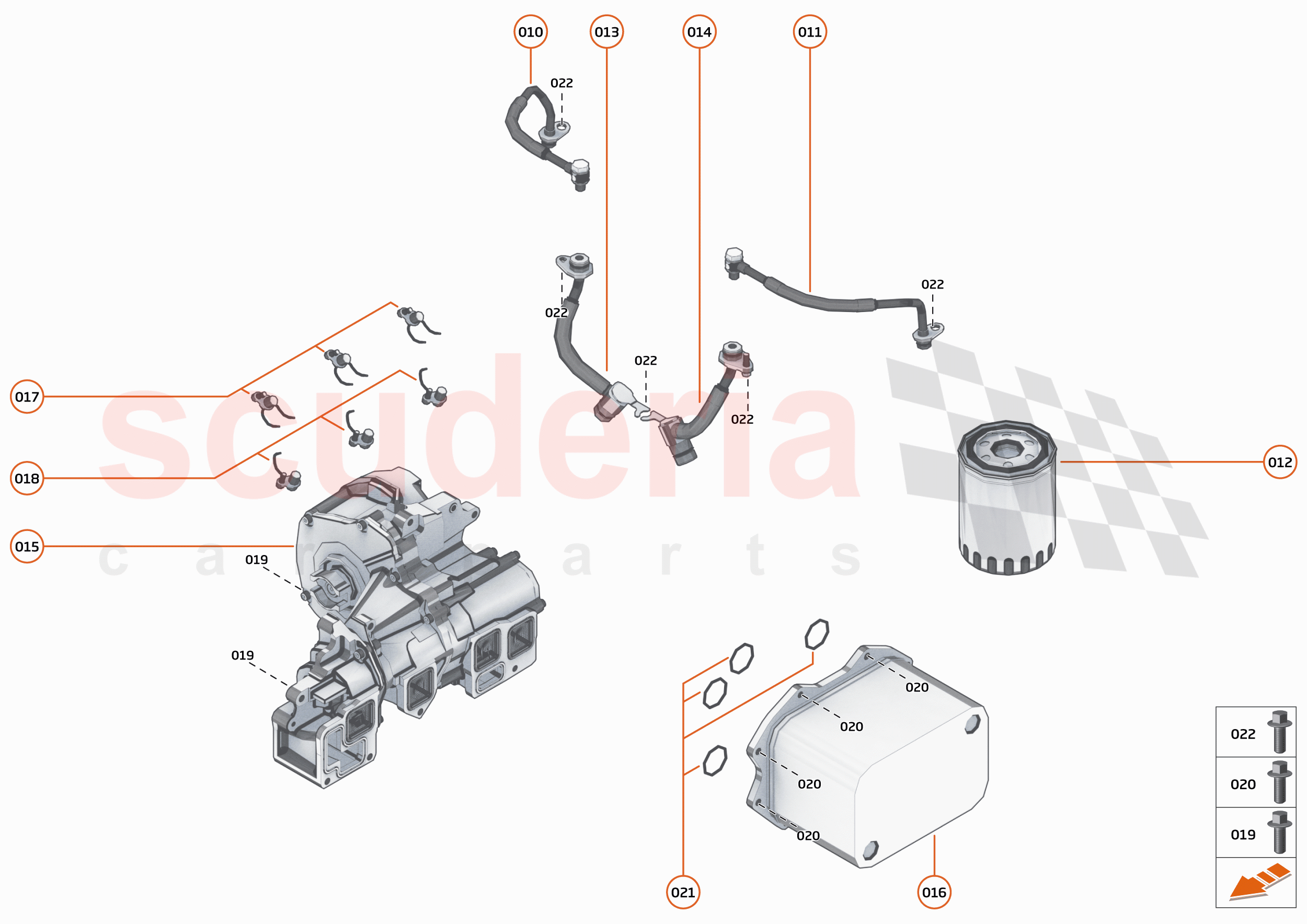

23 - ENGINE - 23.7 - SYSTEM - LUBRICATION of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16FA364CP
TURBO OIL FEED RH 		$102.05 1
011 16FA365CP
TURBO OIL FEED LH 		$103.40 1
012 16F0254CP
Color codes: FILTER-OIL
Color codes: FILTER-OIL; 		$52.88 1
013 16FA793CP
TURBO OIL DRAIN RH 		$115.40 1
014 16FA795CP
TURBO OIL DRAIN LH 		$105.79 1
015 16FB913CP
OIL PUMP-CNTRSINK SCREW-M5X12 - ISO 10642 		$11.52 1
015 16FB920CP
OIL PUMP-WATER CHANNEL GASKET - WATER PUMP 		$52.88 1
015 16FB919CP
OIL PUMP-WATER CHANNEL GASKET - CYLINDER BLOCK 		$52.88 1
015 16FB918CP
OIL PUMP-O RING-STAGE 1 AND 2 - DRIVESHAFT - 25.20 X 3.00 		$11.52 1
015 16FB917CP
OIL PUMP-MESH SIEVE 		$48.08 4
015 16FB916CP
OIL PUMP-MAIN GASKET-CYLINDER - BLOCK 		$52.88 1
015 16FB915CP
OIL PUMP-GALLERY GASKET - CYLINDER BLOCK 		$52.88 1
015 16FB914CP
OIL PUMP-COUPLING TO WATER - PUMP 		$115.40 1
015 16FC298CP
OIL PUMP
OIL PUMP; 		$2,514.85 1
016 16FC206CP
OIL COOLER - DOUBLE BASE PLATE 		$482.16 1
016 16FB305CP
OIL COOLER - DOUBLE BASE PLATE 		$832.82 1
017 16FA797CP
COOLING JET INR-PISTON 		$73.48 6
018 16FA798CP
COOLING JET OTR-PISTON 		$61.89 6
019 11F1794CP
SCREW - M6X25 HEX 		$7.69 6
020 11F1793CP
BOLT - M6X20 - HEX 		$10.56 8
021 16FC131CP
SEAL-OIL COOLER - CIRCULAR 		$9.61 4
022 11F1792CP
BOLT - M6X16 - ENGINE 		$12.48 5
