McLaren Artura - 22 - ENGINE - 22.4 - IC ENGINE - ELECTRICAL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.60 To Order
Photo Part No Description Price (each) Stock
11F1781CP BOLT - M6X35 - ENGINE $10.67 To Order
Photo Part No Description Price (each) Stock
16FC135CP BOLT- M6X12- FL HX HD $8.56 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.67 To Order
Photo Part No Description Price (each) Stock
16F0173CP SPARK PLUG - M12X1.25 $31.45 To Order
Photo Part No Description Price (each) Stock
16FB290CP SENSOR - CAM POSITION BOSCH $53.40 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $57.89 To Order
Photo Part No Description Price (each) Stock
16FA640CP SENSOR - TEMPERATURE AND - PRESSURE - AIR $82.54 To Order
Photo Part No Description Price (each) Stock
16F0186CP SENSOR-HEAD TEMP $38.84 To Order
Photo Part No Description Price (each) Stock
16FB077CP COIL-IGNITION - FEDERAL MOGUL Enquire To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.58 To Order
Photo Part No Description Price (each) Stock
16FB472CP MOTOR - ENGINE STARTER VALEO $1,359.96 To Order
Photo Part No Description Price (each) Stock
16FB218CP CABLE TIE-FTREE- HTYTON 150-31098 $7.56 To Order
Photo Part No Description Price (each) Stock
13F0872CP FUEL PRESSURE AND TEMP SENSOR $155.41 To Order
Photo Part No Description Price (each) Stock
16FB257CP EDGE CLIP-HTYTON 156-04602 $10.63 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.27 To Order
Photo Part No Description Price (each) Stock
16MB213CP MAIN ENGINE HARNESS $5,085.23 To Order
Photo Part No Description Price (each) Stock
16FB532CP BOLT M8X125-TX-30 8.8 STARTER - MOTOR $12.60 To Order
Photo Part No Description Price (each) Stock
16FB707CP ADAPTOR-WASHER-OPS M10X1.5X14 $8.22 To Order
Photo Part No Description Price (each) Stock
16FA610CP SENSOR - KNOCK - FLY-LEAD $72.84 To Order
View All

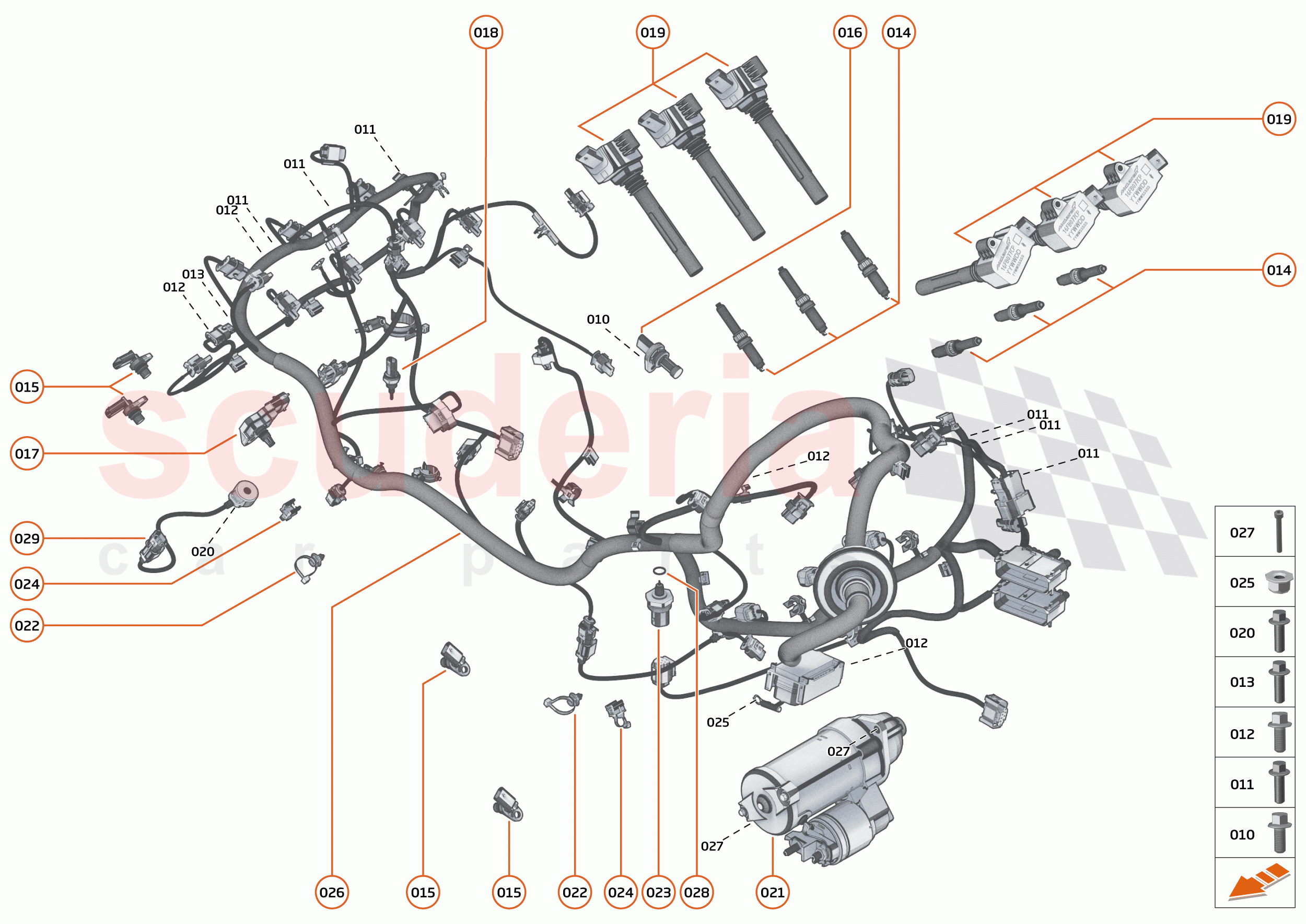

22 - ENGINE - 22.4 - IC ENGINE - ELECTRICAL of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1792CP
BOLT - M6X16 - ENGINE 		$12.60 1
011 11F1781CP
BOLT - M6X35 - ENGINE 		$10.67 6
012 16FC135CP
BOLT- M6X12- FL HX HD 		$8.56 4
013 11F1793CP
BOLT - M6X20 - HEX 		$10.67 1
014 16F0173CP
SPARK PLUG - M12X1.25 		$31.45 6
015 16FB290CP
SENSOR - CAM POSITION BOSCH 		$53.40 4
016 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$57.89 1
017 16FA640CP
SENSOR - TEMPERATURE AND - PRESSURE - AIR 		$82.54 1
018 16F0186CP
SENSOR-HEAD TEMP 		$38.84 1
019 16FB077CP
COIL-IGNITION - FEDERAL MOGUL 		- 6 Enquire
020 11F1783CP
BOLT - M8X30 - HEX 		$13.58 1
021 16FB472CP
MOTOR - ENGINE STARTER VALEO 		$1,359.96 1
022 16FB218CP
CABLE TIE-FTREE- HTYTON 150-31098 		$7.56 2
023 13F0872CP
FUEL PRESSURE AND TEMP SENSOR 		$155.41 1
024 16FB257CP
EDGE CLIP-HTYTON 156-04602 		$10.63 2
025 11F1904CP
NUT - M6
NUT - M6; 		$4.27 1
026 16MB213CP
MAIN ENGINE HARNESS 		$5,085.23 1
027 16FB532CP
BOLT M8X125-TX-30 8.8 STARTER - MOTOR 		$12.60 2
028 16FB707CP
ADAPTOR-WASHER-OPS M10X1.5X14 		$8.22 1
029 16FA610CP
SENSOR - KNOCK - FLY-LEAD 		$72.84 2
