22 - Engine - 22.8 - Ic Engine - Cylinder Block

McLaren Artura

Find Your Part

McLaren Artura - 22 - ENGINE - 22.8 - IC ENGINE - CYLINDER BLOCK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA750CP PLUG - M22 $53.15 To Order
Photo Part No Description Price (each) Stock
16FB366CP WASHER M14-DIN 7603 $4.22 To Order
Photo Part No Description Price (each) Stock
16FC704CP REAR COVER KIT INC. SEAL AND BOLTS $489.05 To Order
Photo Part No Description Price (each) Stock
16FA735CP ASSY - COVER - BALANCE SHAFT - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
16FA737CP SEAL - BALANCE SHAFT COVER $125.67 To Order
Photo Part No Description Price (each) Stock
16FA437CP SCREW- M8X30 FL TX HD $7.31 To Order
Photo Part No Description Price (each) Stock
16FA739CP SCREW - M5X0.8X12 - ALU $28.98 To Order
Photo Part No Description Price (each) Stock
16FA884CP SEAL - BALANCE SHAFT $251.38 To Order
Photo Part No Description Price (each) Stock
16FA874CP RTV - SEAL - REAR COVER $193.35 To Order
Photo Part No Description Price (each) Stock
16FB231CP PLUG - M14 $38.65 To Order
View All

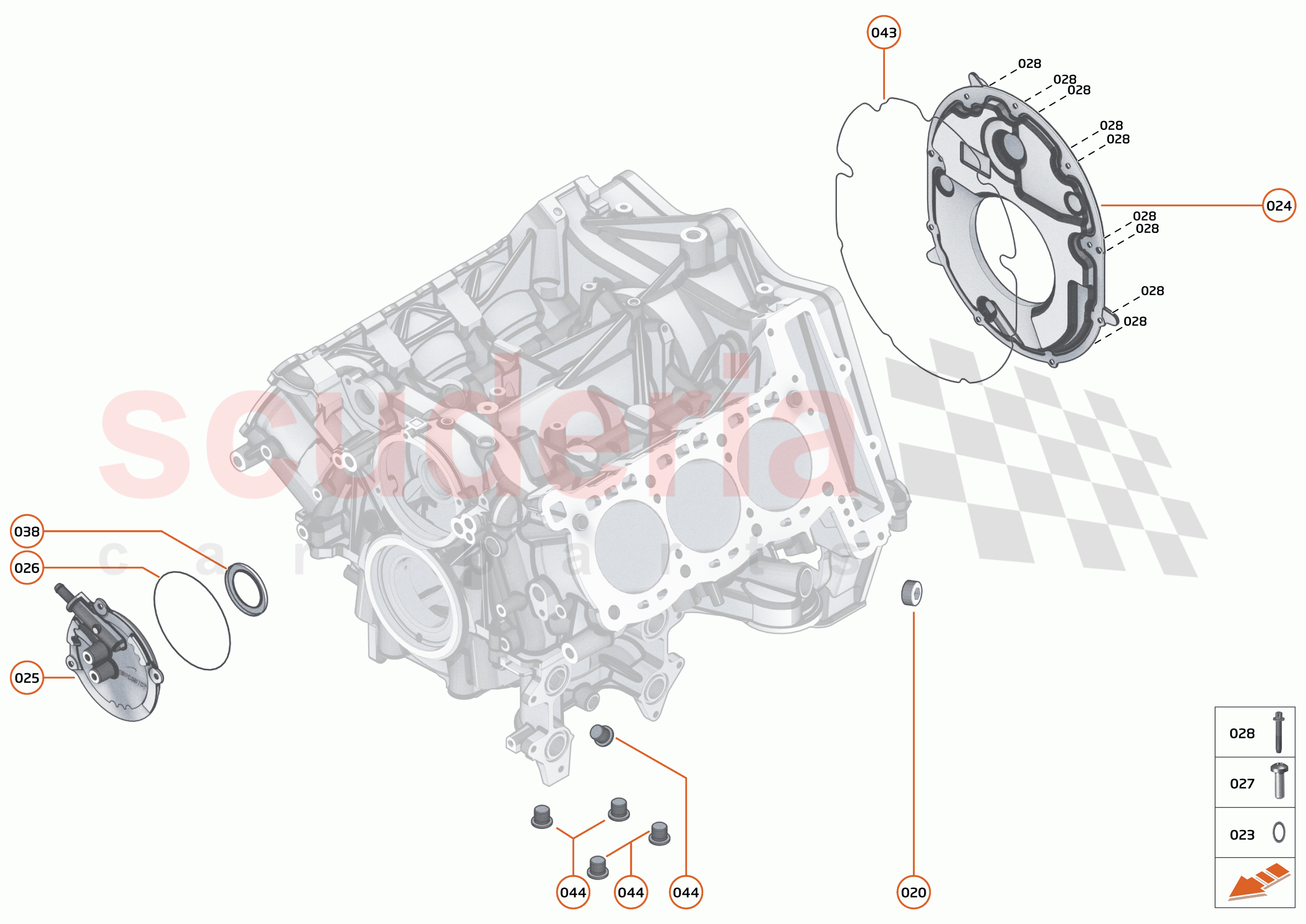

22 - ENGINE - 22.8 - IC ENGINE - CYLINDER BLOCK of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
020 16FA750CP
PLUG - M22
PLUG - M22; 		$53.15 1
023 16FB366CP
WASHER M14-DIN 7603 		$4.22 5
024 16FC704CP
REAR COVER KIT INC. SEAL AND BOLTS 		$489.05 1
025 16FA735CP
ASSY - COVER - BALANCE SHAFT - FRONT 		- 1 Enquire
026 16FA737CP
SEAL - BALANCE SHAFT COVER 		$125.67 1
027 16FA437CP
SCREW- M8X30 FL TX HD 		$7.31 12
028 16FA739CP
SCREW - M5X0.8X12 - ALU 		$28.98 12
038 16FA884CP
SEAL - BALANCE SHAFT 		$251.38 1
043 16FA874CP
RTV - SEAL - REAR COVER 		$193.35 1
044 16FB231CP
PLUG - M14
PLUG - M14; 		$38.65 5
