22 - Engine - 22.9 - Ic Engine - Cylinder Head

McLaren Artura

Find Your Part

McLaren Artura - 22 - ENGINE - 22.9 - IC ENGINE - CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16FA068CP EXHAUST STUD $19.31 To Order
Photo Part No Description Price (each) Stock
16FB775CP SEAL-CAM COVER-RH $144.97 To Order
Photo Part No Description Price (each) Stock
16FB506CP SEAL FUEL PUMP $33.82 To Order
Photo Part No Description Price (each) Stock
16FC494CP ASSY CAM COVER LH - INC. CAM COVER AND FUEL PUMP - SEALS $492.69 To Order
Photo Part No Description Price (each) Stock
16FB776CP SEAL-CAM COVER-LH $144.97 To Order
Photo Part No Description Price (each) Stock
16FB025CP GASKET-CYLINDER HEAD RH $96.63 To Order
Photo Part No Description Price (each) Stock
16FB027CP GASKET-CYLINDER HEAD LH $96.63 To Order
Photo Part No Description Price (each) Stock
16FC492CP ASSY CAM COVER RH - INC. CAM COVER AND FUEL PUMP - SEALS Enquire To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $9.66 To Order
Photo Part No Description Price (each) Stock
16FB944CP HEAD BOLT M11 $13.27 To Order
Photo Part No Description Price (each) Stock
11F1876CP DOWEL- RING- 6.1 X 8 X 6 LG $24.15 To Order
Photo Part No Description Price (each) Stock
16FB533CP BOLT - M6X30 FL 10MM HX HD $16.76 To Order
Photo Part No Description Price (each) Stock
11F1781CP BOLT - M6X35 - ENGINE $10.62 To Order
View All

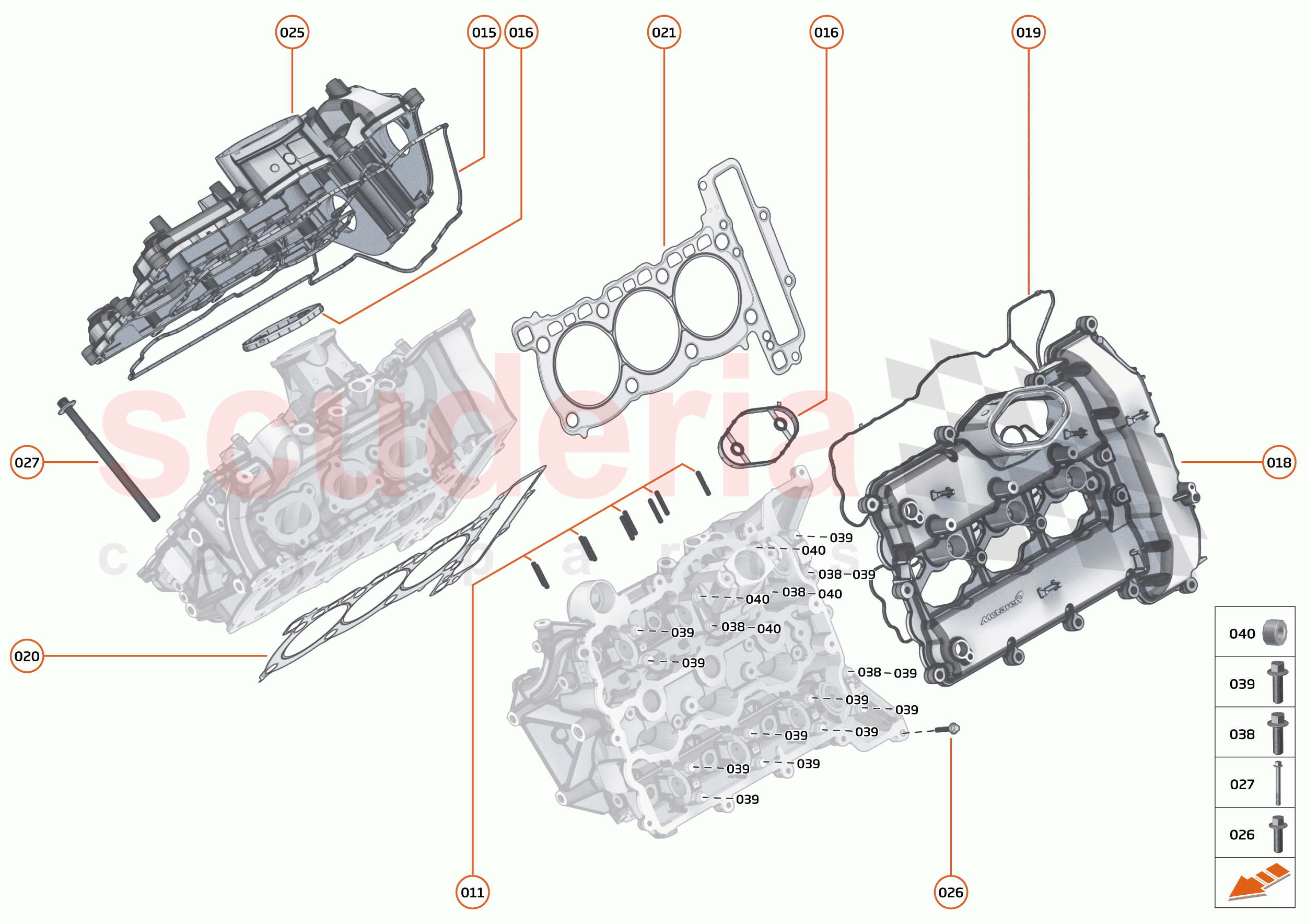

22 - ENGINE - 22.9 - IC ENGINE - CYLINDER HEAD of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 16FA068CP
EXHAUST STUD 		$19.31 18
015 16FB775CP
SEAL-CAM COVER-RH 		$144.97 1
016 16FB506CP
SEAL FUEL PUMP 		$33.82 2
018 16FC494CP
ASSY CAM COVER LH - INC. CAM COVER AND FUEL PUMP - SEALS 		$492.69 1
019 16FB776CP
SEAL-CAM COVER-LH 		$144.97 1
020 16FB025CP
GASKET-CYLINDER HEAD RH 		$96.63 1
021 16FB027CP
GASKET-CYLINDER HEAD LH 		$96.63 1
025 16FC492CP
ASSY CAM COVER RH - INC. CAM COVER AND FUEL PUMP - SEALS 		- 1 Enquire
026 11F1776CP
BOLT - M6X30 - HEX 		$9.66 42
027 16FB944CP
HEAD BOLT M11 		$13.27 16
038 11F1876CP
DOWEL- RING- 6.1 X 8 X 6 LG 		$24.15 8
039 16FB533CP
BOLT - M6X30 FL 10MM HX HD 		$16.76 24
040 11F1781CP
BOLT - M6X35 - ENGINE 		$10.62 8
041 11F0803CP
Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser 		$6.75 1
