20 - Brakes - 20.9 - Brake Pipes

McLaren Artura

Find Your Part

McLaren Artura - 20 - BRAKES - 20.9 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16CA283CP PIPE-BRAKE-ABS MOD-HOSE-FR-LH $62.83 To Order
Photo Part No Description Price (each) Stock
16CA217CP BRAKE PIPE TUB RETAINING BLOCK $7.75 To Order
Photo Part No Description Price (each) Stock
00RB263 CLIP-PIPE-DBL-5X5X12-NYL-BLK Enquire To Order
Photo Part No Description Price (each) Stock
00RB272 CLIP-PIPE-DBL-4-6-X7.2-NYL-BLK Enquire To Order
Photo Part No Description Price (each) Stock
16CA284CP PIPE-BRAKE-ABS MOD-HOSE-FR-RH $67.84 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
16CA237CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH - RR $77.34 To Order
Photo Part No Description Price (each) Stock
16CA238CP PIPE-BRAKE-ABS MOD-HOSE-RR-RH - RR $29.32 To Order
Photo Part No Description Price (each) Stock
16CA069CP BRKT-BRAKE PIPES-RR-RH $42.44 To Order
Photo Part No Description Price (each) Stock
00RB211 CLIP - PIPE - WINDSCREEN WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16CA072CP BRKT-BRAKE PIPES-RR-LH $42.44 To Order
Photo Part No Description Price (each) Stock
16CA076CP PIPE-BRAKE-ABS MOD-HOSE-RR-RH - FR $46.67 To Order
Photo Part No Description Price (each) Stock
00RB177 CLIP - HOSE - TRIPLE Enquire To Order
Photo Part No Description Price (each) Stock
16CA268CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH - FR $72.50 To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
16CA229CP PIPE-BRAKE-TMC-ABS MOD-PRIMARY - RHD $65.31 To Order
16CA080CP PIPE-BRAKE-TMC-ABS MOD-PRIMARY - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP-DOUBLE-DIA 6 24 Enquire To Order
Photo Part No Description Price (each) Stock
16CA230CP PIPE-BRAKE-TMC-ABS MOD - SECONDRY-RHD $50.11 To Order
16CA082CP PIPE-BRAKE-TMC-ABS MOD - SECONDRY-LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
16CA098CP HOSE BRAKE CCM RR LH $53.15 To Order
Photo Part No Description Price (each) Stock
16CA099CP HOSE BRAKE CCM RR-RH $53.15 To Order
Photo Part No Description Price (each) Stock
11C0040CP BRAKE HOSE - IRON - CARBON - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
11C0592CP WASHER - COPPER - BRAKE HOSE $4.25 To Order
16CA424CP BRKT BRAKE PIPES FRT RH Enquire To Order
Photo Part No Description Price (each) Stock
16CA425CP BRKT BRAKE PIPES FRT LH Enquire To Order
View All

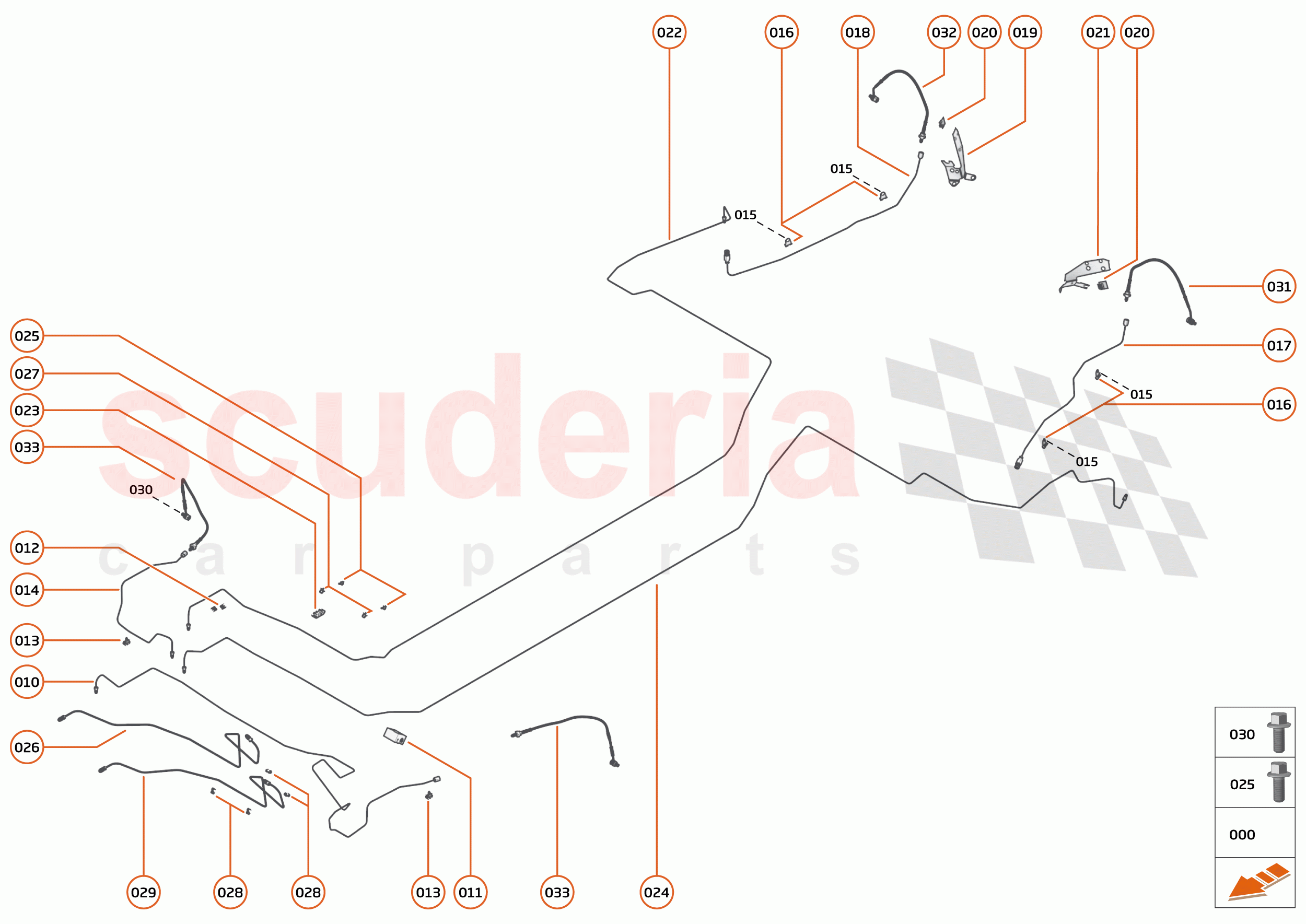

20 - BRAKES - 20.9 - BRAKE PIPES of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16CA283CP
PIPE-BRAKE-ABS MOD-HOSE-FR-LH 		$62.83 1
011 16CA217CP
BRAKE PIPE TUB RETAINING BLOCK 		$7.75 1
012 00RB263
CLIP-PIPE-DBL-5X5X12-NYL-BLK 		- 2 Enquire
013 00RB272
CLIP-PIPE-DBL-4-6-X7.2-NYL-BLK 		- 2 Enquire
014 16CA284CP
PIPE-BRAKE-ABS MOD-HOSE-FR-RH 		$67.84 1
015 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
016 00RB063
P CLIP - DIA 6 (M6) 		- 4 Enquire
017 16CA237CP
PIPE-BRAKE-ABS MOD-HOSE-RR-LH - RR 		$77.34 1
018 16CA238CP
PIPE-BRAKE-ABS MOD-HOSE-RR-RH - RR 		$29.32 1
019 16CA069CP
BRKT-BRAKE PIPES-RR-RH 		$42.44 1
020 00RB211
CLIP - PIPE - WINDSCREEN WASHER 		- 2 Enquire
021 16CA072CP
BRKT-BRAKE PIPES-RR-LH 		$42.44 1
022 16CA076CP
PIPE-BRAKE-ABS MOD-HOSE-RR-RH - FR 		$46.67 1
023 00RB177
CLIP - HOSE - TRIPLE 		- 1 Enquire
024 16CA268CP
PIPE-BRAKE-ABS MOD-HOSE-RR-LH - FR 		$72.50 1
025 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 2 Enquire
026 16CA229CP
PIPE-BRAKE-TMC-ABS MOD-PRIMARY - RHD 		$65.31 1
026 16CA080CP
PIPE-BRAKE-TMC-ABS MOD-PRIMARY - LHD 		- 1 Enquire
027 00RB045
CLIP - 9.5-10MM - MALE 		- 2 Enquire
028 00RB043
CLIP-DOUBLE-DIA 6 24 		- 4 Enquire
029 16CA230CP
PIPE-BRAKE-TMC-ABS MOD - SECONDRY-RHD 		$50.11 1
029 16CA082CP
PIPE-BRAKE-TMC-ABS MOD - SECONDRY-LHD 		- 1 Enquire
030 00RA083
SCREW - M6X20 - FLANGE HEX 		- 1 Enquire
031 16CA098CP
HOSE BRAKE CCM RR LH 		$53.15 1
032 16CA099CP
HOSE BRAKE CCM RR-RH 		$53.15 1
033 11C0040CP
BRAKE HOSE - IRON - CARBON - FRONT 		- 1 Enquire
034 11C0592CP
WASHER - COPPER - BRAKE HOSE 		$4.25 1
034 16CA424CP
BRKT BRAKE PIPES FRT RH 		- 1 Enquire
035 16CA425CP
BRKT BRAKE PIPES FRT LH 		- 1 Enquire
