19 - SUSPENSION - 19.10 - SUSPENSION FLUID SYSTEMS of McLaren McLaren Artura

View All

McLaren Artura - 19 - SUSPENSION - 19.10 - SUSPENSION FLUID SYSTEMS

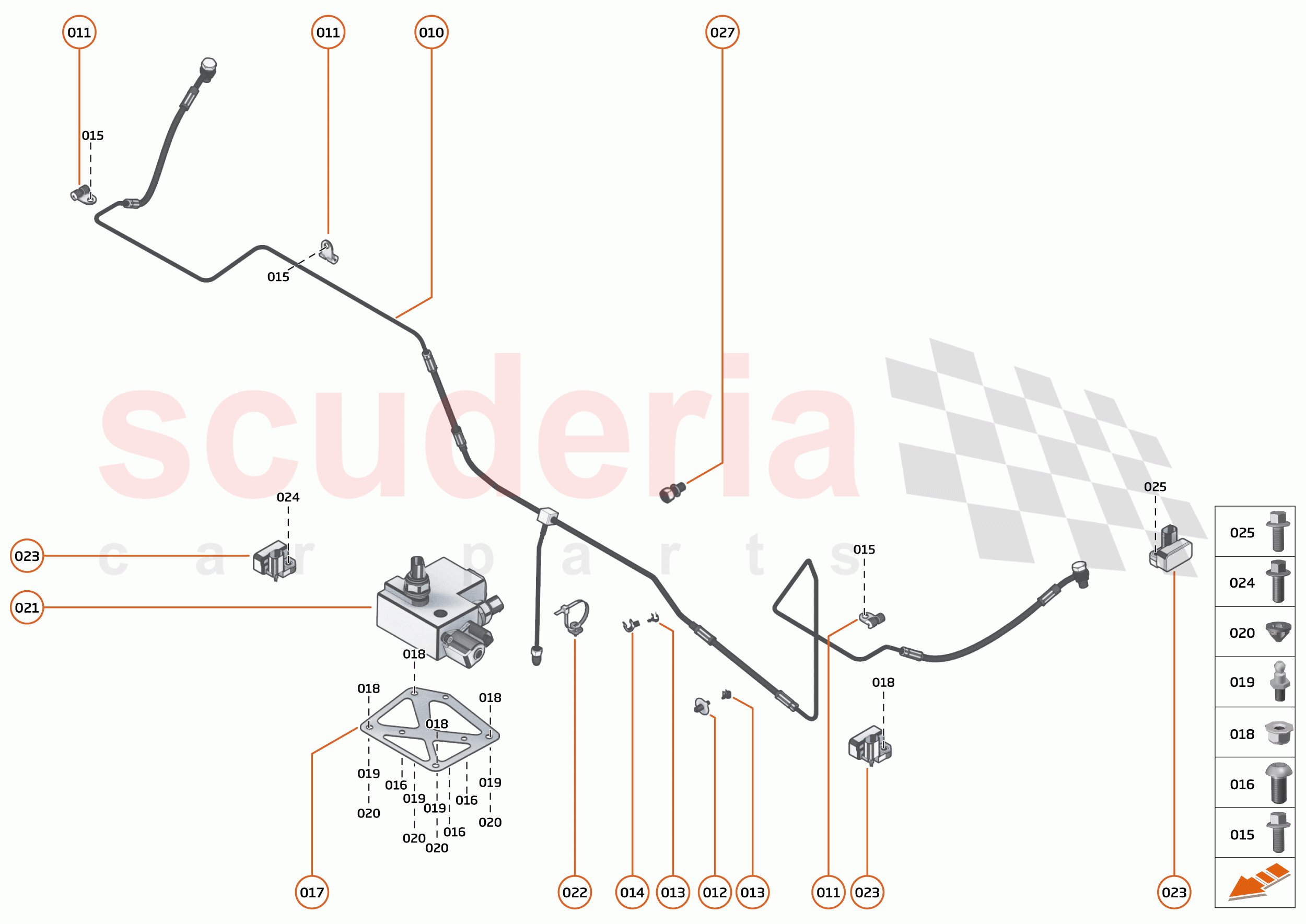

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	16BA534CP	ASSY-HOSE-PIPE-LIFT-FR-RHD	$226.96	To Order
	16BA533CP	ASSY-HOSE-PIPE-LIFT-FR-LHD	Enquire	To Order
	16BB094CP	ASSY-HOSE-PIPE-LIFT-FR-RHD - MY24 ONWARDS	$213.72	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	00RB063	P CLIP - DIA 6 (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB042	SWIVEL PIPE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB024	CLIP - 6.0-6.5MM - FEMALE	Enquire	To Order
	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	Enquire	To Order
	00RB046	CLIP - 8-9MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX001	BOLT - M5X16 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA097	SCREW - M5X10 8.8 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA458CP	BRKT-VALVE BLOCK-NOSE LIFT	$30.90	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA585	STUD BALL - M6X9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB187	CLIP - SNAPLOC - 14X7	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA549CP	VALVE BLOCK-NOSE LIFT	$1,146.34	To Order
	16BB076CP	VALVE BLOCK-NOSE LIFT - MY25 ONWARDS	$1,146.34	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16MB092CP	SENSOR - ACCELEROMETER	$193.02	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0501CP	BRAKE HOSE BANJO BOLT INC WASHERS	$24.27	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16BA534CP	ASSY-HOSE-PIPE-LIFT-FR-RHD	16BA534CP ASSY-HOSE-PIPE-LIFT-FR-RHD	$226.96	1
010	16BA533CP	ASSY-HOSE-PIPE-LIFT-FR-LHD	16BA533CP ASSY-HOSE-PIPE-LIFT-FR-LHD	-	1	Enquire
010	16BB094CP	ASSY-HOSE-PIPE-LIFT-FR-RHD - MY24 ONWARDS	16BB094CP ASSY-HOSE-PIPE-LIFT-FR-RHD - MY24 ONWARDS	$213.72	1
010	16BB093CP	ASSY-HOSE-PIPE-LIFT-FR-LHD - MY24 ONWARDS	16BB093CP ASSY-HOSE-PIPE-LIFT-FR-LHD - MY24 ONWARDS	-	1	Enquire
011	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6)	-	3	Enquire
012	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	1	Enquire
013	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP	-	2	Enquire
014	00RB024	CLIP - 6.0-6.5MM - FEMALE	00RB024 CLIP - 6.0-6.5MM - FEMALE	-	1	Enquire
014	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM	-	1	Enquire
014	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE	-	1	Enquire
015	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX	-	3	Enquire
016	00RA097	SCREW - M5X10 8.8 - BUTTON HEAD	00RA097 SCREW - M5X10 8.8 - BUTTON HEAD	-	3	Enquire
017	16BA458CP	BRKT-VALVE BLOCK-NOSE LIFT	16BA458CP BRKT-VALVE BLOCK-NOSE LIFT	$30.90	1
018	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	4	Enquire
019	00RA585	STUD BALL - M6X9	00RA585 STUD BALL - M6X9	-	4	Enquire
020	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7	-	4	Enquire
021	16BA549CP	VALVE BLOCK-NOSE LIFT	16BA549CP VALVE BLOCK-NOSE LIFT	$1,146.34	1
021	16BB076CP	VALVE BLOCK-NOSE LIFT - MY25 ONWARDS	16BB076CP VALVE BLOCK-NOSE LIFT - MY25 ONWARDS	$1,146.34	1
022	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	1	Enquire
023	16MB092CP	SENSOR - ACCELEROMETER	16MB092CP SENSOR - ACCELEROMETER	$193.02	3
024	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	1	Enquire
025	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	1	Enquire
026	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE	-	1	Enquire
027	11C0501CP	BRAKE HOSE BANJO BOLT INC WASHERS	11C0501CP BRAKE HOSE BANJO BOLT INC WASHERS	$24.27	1
