19 - Suspension - 19.3 - Transverse Links Front

McLaren Artura

Find Your Part

McLaren Artura - 19 - SUSPENSION - 19.3 - TRANSVERSE LINKS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.33 To Order
Photo Part No Description Price (each) Stock
00RX053 BOLT - WISHBONE - M10X1.5X35 Enquire To Order
Photo Part No Description Price (each) Stock
16BA454CP BRKT SENSOR DISPLACEMENT FR LH $33.97 To Order
Photo Part No Description Price (each) Stock
16BA457CP BRKT SENSOR DISPLACEMENT FR RH $33.97 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.62 To Order
Photo Part No Description Price (each) Stock
13B0681CP SENSOR - DISPLACEMENT $116.47 To Order
Photo Part No Description Price (each) Stock
16BA885CP ASSY-WISHBONE -LWR-FR-LH $524.22 To Order
16BA885CP ASSY-WISHBONE -LWR-FR-LH $524.22 To Order
Photo Part No Description Price (each) Stock
13BA208RP WISHBONE - LOWER - FRONT - RH $1,060.96 To Order
16BA886CP ASSY WISHBONE LWR FR RH $524.22 To Order
Photo Part No Description Price (each) Stock
16BA669CP ASSY -WISHBONE-UPR-FR-LH $524.22 To Order
Photo Part No Description Price (each) Stock
16BA670CP ASSY-WISHBONE-UPR-FR-RH $524.22 To Order
Photo Part No Description Price (each) Stock
22BA174GP BALL SCKT SENSOR DISPLACEMENT $38.81 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $48.53 To Order
View All

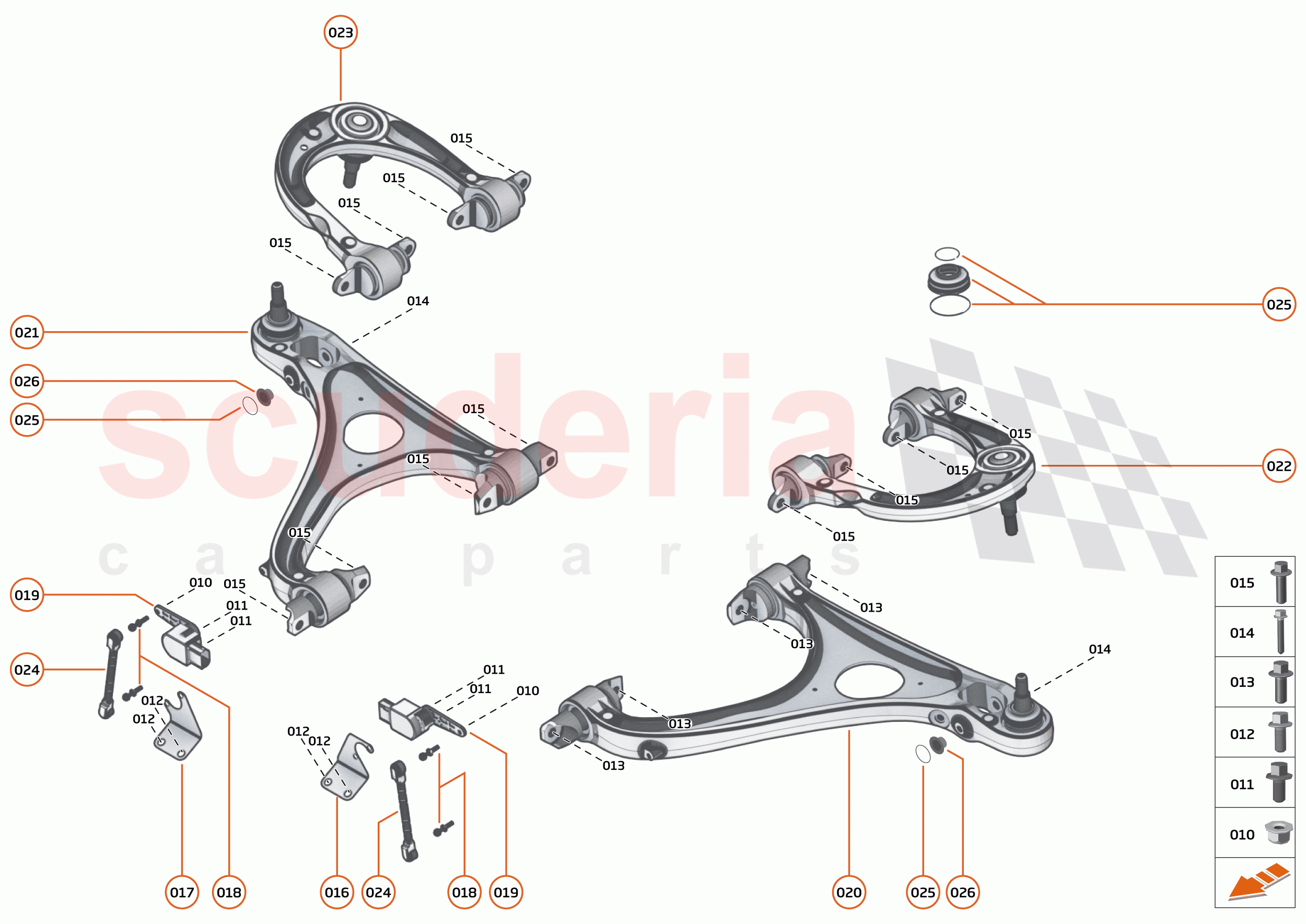

19 - SUSPENSION - 19.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
011 00RA087
SCREW - M5X10 - HEX 		- 4 Enquire
012 00RA083
SCREW - M6X20 - FLANGE HEX 		- 4 Enquire
013 00RA457
SCREW - M10X30-10.9 - HEX 		- 4 Enquire
014 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.33 2
015 00RX053
BOLT - WISHBONE - M10X1.5X35 		- 12 Enquire
016 16BA454CP
BRKT SENSOR DISPLACEMENT FR LH 		$33.97 1
017 16BA457CP
BRKT SENSOR DISPLACEMENT FR RH 		$33.97 1
018 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$11.62 4
019 13B0681CP
SENSOR - DISPLACEMENT 		$116.47 2
020 16BA885CP
ASSY-WISHBONE -LWR-FR-LH 		$524.22 1
020 16BA885CP
ASSY-WISHBONE -LWR-FR-LH 		$524.22 1
021 13BA208RP
WISHBONE - LOWER - FRONT - RH 		$1,060.96 1
021 16BA886CP
ASSY WISHBONE LWR FR RH 		$524.22 1
022 16BA669CP
ASSY -WISHBONE-UPR-FR-LH 		$524.22 1
023 16BA670CP
ASSY-WISHBONE-UPR-FR-RH 		$524.22 1
024 22BA174GP
BALL SCKT SENSOR DISPLACEMENT 		$38.81 2
025 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1 Enquire
026 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$48.53 1
027 11B1552CP
Ball Joint - Gaiter - Kit 		$48.21 1
028 14BA039CP
BALL JOINT - GAITER - LOWER - KIT 		$4.04 1
029 14BA246CP
WISHBONE BUSH 		$155.31 1
030 14BA255CP
WISHBONE BUSH - 3.5MM 		$155.31 1
