Name: 19 - SUSPENSION - 19.4 - ROAD SPRINGS FRONT
Rating: 4.5 (1 reviews)

View All

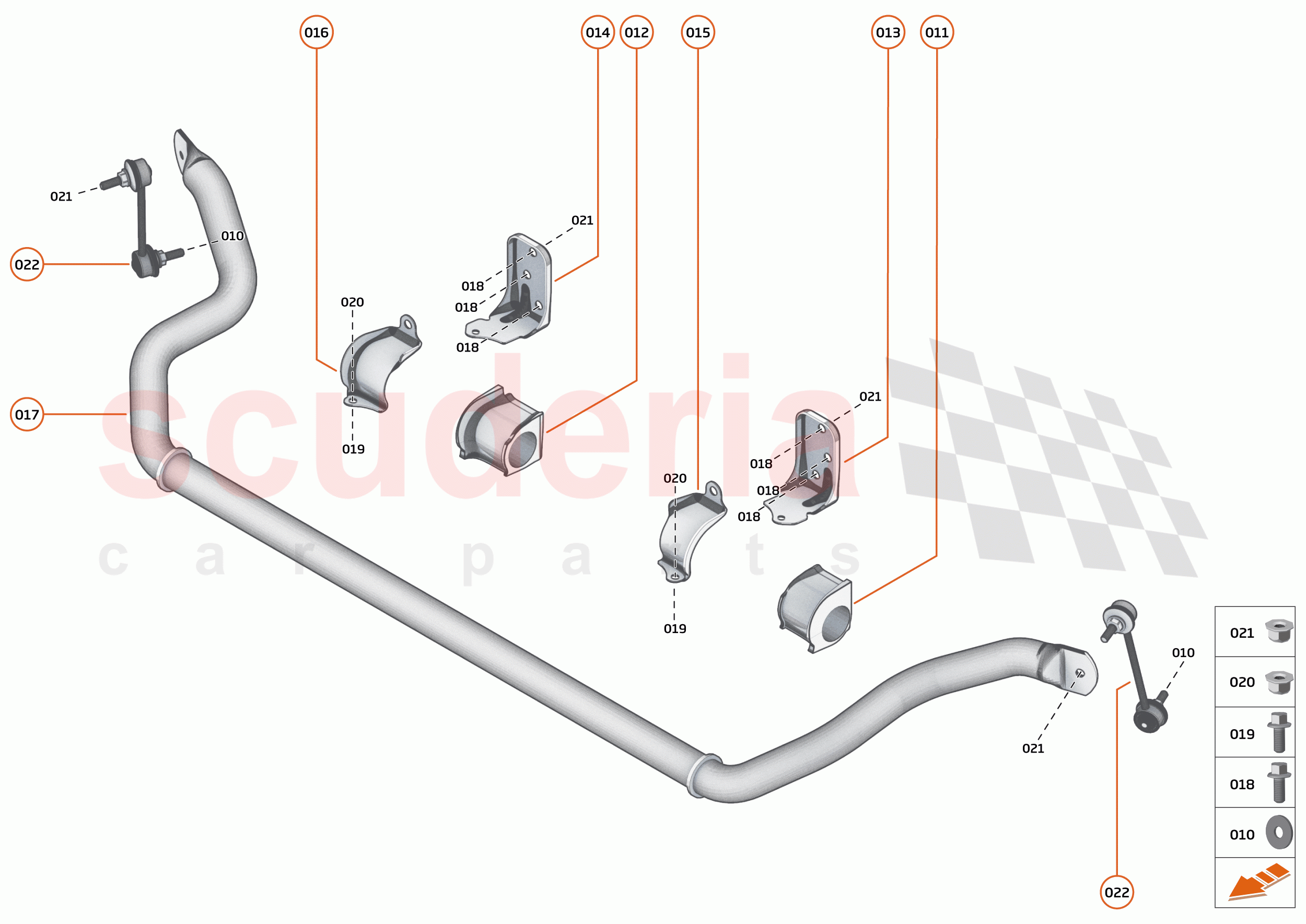

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA612CP	BRKT-ARB-BUSH-FRAME -LH	$63.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA613CP	BRKT-ARB-BUSH-FRAME-RH	$63.79	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA614CP	BRKT-ARB-BUSH -LH	$63.97	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA615CP	BRKT-ARB-BUSH-RH	$63.97	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA711CP	FRONT ANTI ROLL BAR	$619.88	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA440	BOLT - HEX HEAD - FLANGE - M10X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA053	Nut - M10 - Lock Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0352CP	DROP LINK - FRONT	$82.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0	-	4	Enquire
011	16BA610CP	ARB BUSH FR LH	16BA610CP ARB BUSH FR LH	$113.84	1
011	16BB128CP	ARB BUSH FR LH	16BB128CP ARB BUSH FR LH	$50.38	1
012	16BA611CP	ARB BUSH FR RH	16BA611CP ARB BUSH FR RH	$113.84	1
012	16BB129CP	ARB BUSH FR RH	16BB129CP ARB BUSH FR RH	$50.38	1
013	16BA612CP	BRKT-ARB-BUSH-FRAME -LH	16BA612CP BRKT-ARB-BUSH-FRAME -LH	$63.79	1
014	16BA613CP	BRKT-ARB-BUSH-FRAME-RH	16BA613CP BRKT-ARB-BUSH-FRAME-RH	$63.79	1
015	16BA614CP	BRKT-ARB-BUSH -LH	16BA614CP BRKT-ARB-BUSH -LH	$63.97	1
016	16BA615CP	BRKT-ARB-BUSH-RH	16BA615CP BRKT-ARB-BUSH-RH	$63.97	1
017	16BA711CP	FRONT ANTI ROLL BAR	16BA711CP FRONT ANTI ROLL BAR	$619.88	1
018	00RA440	BOLT - HEX HEAD - FLANGE - M10X20	00RA440 BOLT - HEX HEAD - FLANGE - M10X20	-	6	Enquire
019	00RA484	BOLT - HEX HEAD - FLANGED - M8X20	00RA484 BOLT - HEX HEAD - FLANGED - M8X20	-	2	Enquire
019	00RX043	BOLT - HEX HEAD - FLANGE - M8X20	00RX043 BOLT - HEX HEAD - FLANGE - M8X20	-	2	Enquire
020	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX	-	2	Enquire
021	00RA053	Nut - M10 - Lock Hex	00RA053 Nut - M10 - Lock Hex	-	4	Enquire
022	13B0352CP	DROP LINK - FRONT	13B0352CP DROP LINK - FRONT	$82.30	2

19 - Suspension - 19.4 - Road Springs Front

McLaren Artura
