6 - B1 - Front Suspension - 6.2 - 02 - Front Suspension Lh

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 6 - B1 - FRONT SUSPENSION - 6.2 - 02 - FRONT SUSPENSION LH

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11B0814CP Harness - Tenneco - Damper $81.47 To Order
11B0804CP Sleeve - Silicone - Protection - 130mm $72.35 To Order
Photo Part No Description Price (each) Stock
11B1552CP Ball Joint - Gaiter - Kit $47.91 To Order
Photo Part No Description Price (each) Stock
00RX031 BOLT - M10X35 - HEX HEAD - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
12B0503CP Wishbone - Front - Lower - LH $17,802.03 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
12B0269CP LINK ROD - SENSOR - DISPLACEMENT - 92MM $212.27 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC044 Spacer - M6xOD10-X4LG Enquire To Order
Photo Part No Description Price (each) Stock
11B1554RP Bracket - Sensor - Displacement - Front - LH - 675LT $48.23 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $144.72 To Order
Photo Part No Description Price (each) Stock
12B0761CP BOLT - M10X72 - HEX - FLANGE $135.06 To Order
Photo Part No Description Price (each) Stock
11B1769RP Suspension Unit - Tenneco - Nose Lift - Front - LH $3,971.44 To Order
11B0942RP Suspension Unit - Tenneco - Front - LH $4,322.63 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B1683RP Wishbone - Front - Upper - LH $2,579.64 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.70 To Order
Photo Part No Description Price (each) Stock
14B0373CP Stub Axle - Front $115.76 To Order
Photo Part No Description Price (each) Stock
11B0595CP Bolt - M12x30 - Hex $38.57 To Order
Photo Part No Description Price (each) Stock
11B0596CP Washer - M12x23x2 $33.77 To Order
Photo Part No Description Price (each) Stock
11B1515RP TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT $48.23 To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $12.52 To Order
Photo Part No Description Price (each) Stock
28BA474CP WHEEL HUB ASSY - BEARING $616.85 To Order
Photo Part No Description Price (each) Stock
11B0566CP NUT - M26 - 12POINT - HEX $11.55 To Order
Photo Part No Description Price (each) Stock
11B1513RP Upright - Suspension - Front - LH - 675LT $4,861.33 To Order
Photo Part No Description Price (each) Stock
11B0626CP Sensor - APMU Pressure $191.71 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.32 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.40 To Order
Photo Part No Description Price (each) Stock
11B1516RP Heatshield - Lower - Front - Balljoint - LH $33.54 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11S5457CP TOP MOUNT - ACTUATOR - KIT $154.37 To Order
Photo Part No Description Price (each) Stock
11B1538CP ACCUMULATOR-SOP-STD $366.62 To Order
View All

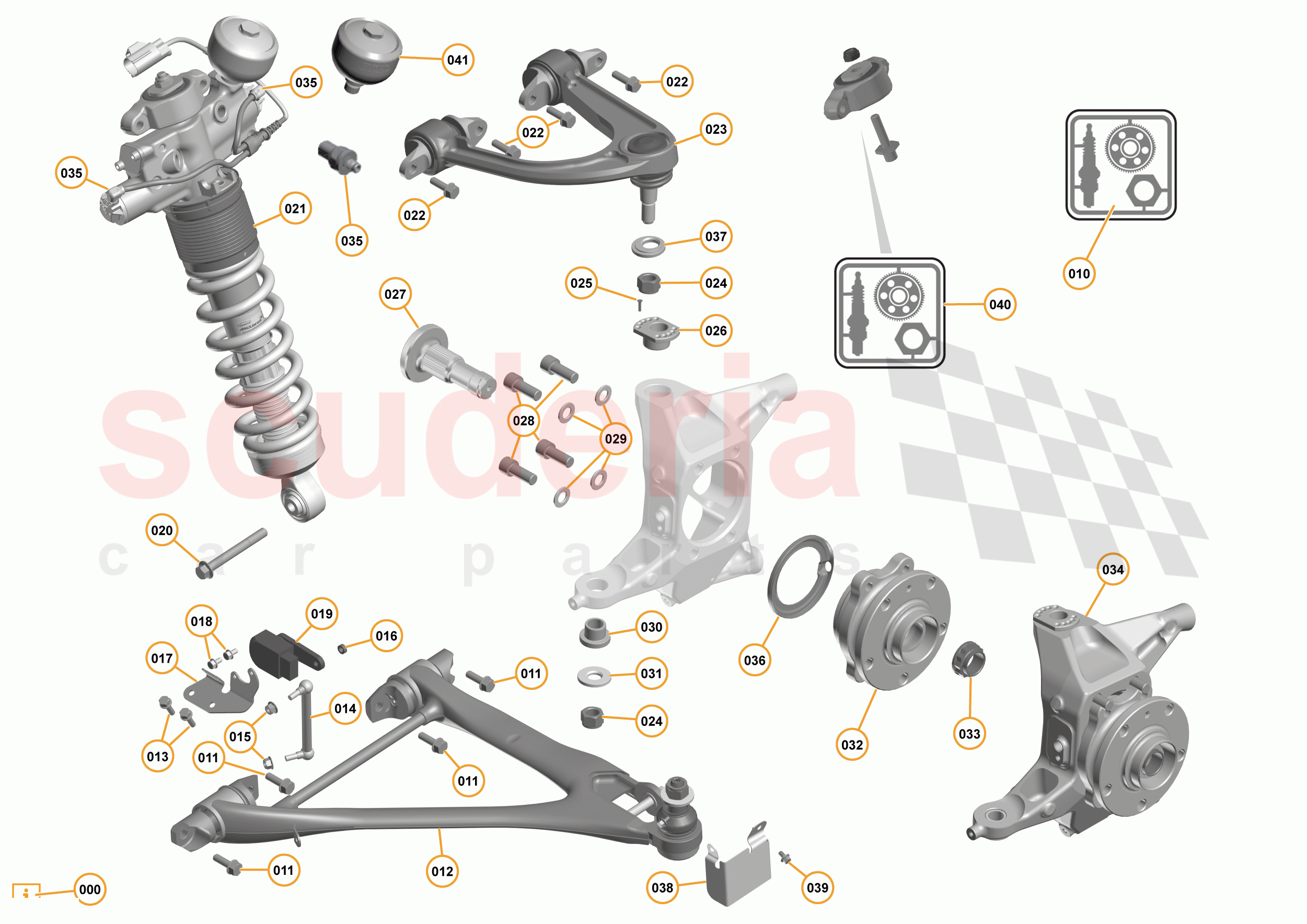

6 - B1 - FRONT SUSPENSION - 6.2 - 02 - FRONT SUSPENSION LH of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B0814CP
Harness - Tenneco - Damper 		$81.47 1
000 11B0804CP
Sleeve - Silicone - Protection - 130mm 		$72.35 1
010 11B1552CP
Ball Joint - Gaiter - Kit 		$47.91 2
011 00RX031
BOLT - M10X35 - HEX HEAD - FLANGE 		- 4 Enquire
012 12B0503CP
Wishbone - Front - Lower - LH 		$17,802.03 1
013 00RA061
Screw - M6x16 - Flange Hex 		- 2 Enquire
014 12B0269CP
LINK ROD - SENSOR - DISPLACEMENT - 92MM 		$212.27 1
015 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
016 00RC044
Spacer - M6xOD10-X4LG 		- 1 Enquire
017 11B1554RP
Bracket - Sensor - Displacement - Front - LH - 675LT 		$48.23 1
018 00RA087
SCREW - M5X10 - HEX 		- 2 Enquire
019 11M0253CP
Sensor - Displacement 		$144.72 1
020 12B0761CP
BOLT - M10X72 - HEX - FLANGE 		$135.06 1
021 11B1769RP
Suspension Unit - Tenneco - Nose Lift - Front - LH
Superseded parts: 11B0944RP; 		$3,971.44 1
021 11B0942RP
Suspension Unit - Tenneco - Front - LH 		$4,322.63 1
022 00RA457
SCREW - M10X30-10.9 - HEX 		- 4 Enquire
023 11B1683RP
Wishbone - Front - Upper - LH 		$2,579.64 1
024 00RA229
NUT - M14X1.5 - LOCKED HEX 		- 2 Enquire
025 RA250
SCREW - M3X12 - HEX
Superseded parts: 00RA250; 		- 1 Enquire
026 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.70 1
027 14B0373CP
Stub Axle - Front 		$115.76 1
028 11B0595CP
Bolt - M12x30 - Hex 		$38.57 4
029 11B0596CP
Washer - M12x23x2 		$33.77 4
030 11B1515RP
TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT 		$48.23 2
031 11B0320CP
WASHER - DIA 35X3.9X14.5 		$12.52 1
032 28BA474CP
WHEEL HUB ASSY - BEARING 		$616.85 1
033 11B0566CP
NUT - M26 - 12POINT - HEX 		$11.55 1
034 11B1513RP
Upright - Suspension - Front - LH - 675LT 		$4,861.33 1
035 11B0626CP
Sensor - APMU Pressure 		$191.71 1
036 15BA315CP
PROTECTOR CAP - HUB 		$38.32 1
037 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.40 1
038 11B1516RP
Heatshield - Lower - Front - Balljoint - LH 		$33.54 2
039 00RA165
BOLT - M5X8 - HEX 		- 2 Enquire
040 11S5457CP
TOP MOUNT - ACTUATOR - KIT 		$154.37 1
041 11B1538CP
ACCUMULATOR-SOP-STD
Accumulator; 		$366.62 1
