6 - B1 - Front Suspension - 6.1 - 01 - Damping Front Pipes Kinetic H2

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 6 - B1 - FRONT SUSPENSION - 6.1 - 01 - DAMPING FRONT PIPES KINETIC H2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11B1615CP QUICK RELEASE - SUSPENSION BLEED CONNECTOR $366.22 To Order
Photo Part No Description Price (each) Stock
11C0045CP Mount - Anti-Vibration - Rubber $38.53 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0383CP Bracket - APMU $134.92 To Order
Photo Part No Description Price (each) Stock
11B1302CP Color codes: APMU $3,064.35 To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
11M0252CP Sensor - Accelerometer $191.50 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0699CP Pipe - Suspension - APMU - LH Tunnel & Lateral Lower Pipe - Front - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11B1272CP Pipe - Suspension - APMU RH to Lateral Lower Pipe - Front - RHD $1,233.69 To Order
11B0698CP Pipe - Suspension - APMU - RH Tunnel & Lateral Lower Pipe - Front - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11B1287CP Hose - Suspension - Lateral - Front - Upper - RHD $2,621.59 To Order
11B1140CP Hose - Suspension - Lateral - Front - Upper - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB050 Saddle Clamp - 13-15 Enquire To Order
Photo Part No Description Price (each) Stock
11B0622CP BRKT-SUSPENSION PI24 $43.07 To Order
Photo Part No Description Price (each) Stock
11B1143CP Hose - Suspension - Lateral - Front - Lower - RHD $771.03 To Order
11B1141CP Hose - Suspension - Lateral - Front - Lower - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11B0216CP ASSY-PIPE-LINE-LONGI-FR-RH-FR $655.39 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
11B1346CP Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH $1,426.46 To Order
Photo Part No Description Price (each) Stock
11B1345CP Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear $1,407.17 To Order
Photo Part No Description Price (each) Stock
11B0217CP ASSY-PIPE-LINE-LONGI-FR-LH-FR $366.22 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB022 Clip - 4-4.8mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
11B0956CP Bracket - Pipe - Suspension - Nose Lift Enquire To Order
Photo Part No Description Price (each) Stock
00RB098 P-CLIP - DIA 10 - SILICONE Enquire To Order
Photo Part No Description Price (each) Stock
00RA054 Nut - M5 - Lock Hex Enquire To Order
Photo Part No Description Price (each) Stock
11B0998CP Clip - Double - DIA 10mm - Moulded - A Ray $4.59 To Order
Photo Part No Description Price (each) Stock
11B1104CP Clip - Single - DIA 10mm - Moulded $17.32 To Order
Photo Part No Description Price (each) Stock
11B1111CP Hose - Suspension - Front - Centre - Nose Lift $578.27 To Order
Photo Part No Description Price (each) Stock
11B1109CP Hose - Suspension - Front - Left - Nose Lift $443.34 To Order
Photo Part No Description Price (each) Stock
11B1110CP Hose - Suspension - Front - Right - Nose Lift Enquire To Order
Photo Part No Description Price (each) Stock
11B1103CP Valve Block - Nose lift $402.17 To Order
Photo Part No Description Price (each) Stock
00RL004 FELT TAPE Enquire To Order
Photo Part No Description Price (each) Stock
11B0989CP Bracket - Valve Block - Nose Lift Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0988CP Bracket - Bodyside to Valve Block - Nose Lift Enquire To Order
Photo Part No Description Price (each) Stock
11D0124CP MOUNT - AV - RUBBER $33.73 To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $43.35 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $9.63 To Order
Photo Part No Description Price (each) Stock
11F1277SP Washer - M10 x 1.27 x 14.8 $1.14 To Order
View All

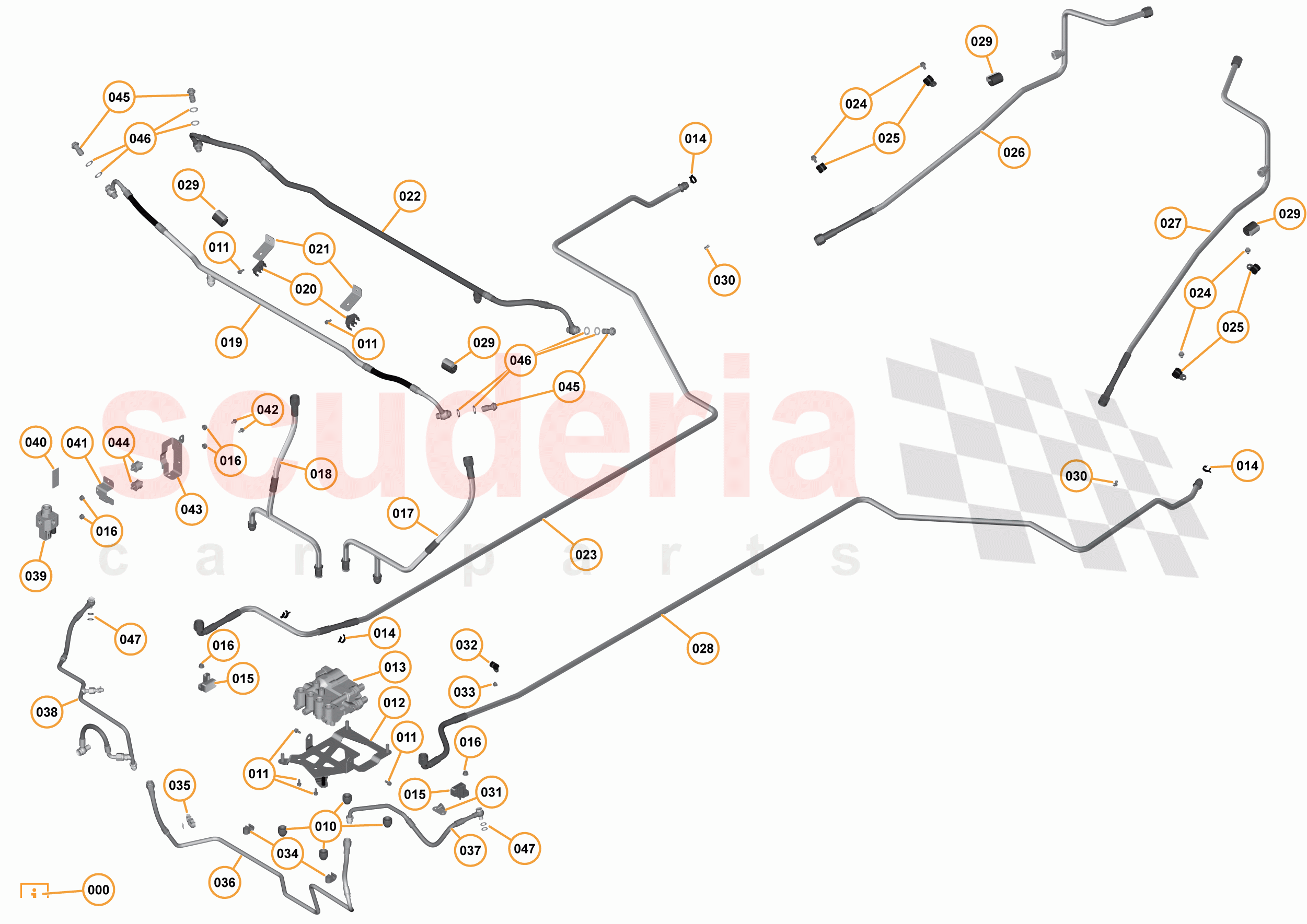

6 - B1 - FRONT SUSPENSION - 6.1 - 01 - DAMPING FRONT PIPES KINETIC H2 of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11B1615CP
QUICK RELEASE - SUSPENSION BLEED CONNECTOR 		$366.22 2
010 11C0045CP
Mount - Anti-Vibration - Rubber 		$38.53 4
011 00RA064
BOLT - M5X12 - HEX 		- 5 Enquire
012 11B0383CP
Bracket - APMU 		$134.92 1
013 11B1302CP
Color codes: APMU
Color codes: APMU; 		$3,064.35 1
014 00RB044
SWIVEL PIPE CLIP - 16MM 		- 3 Enquire
015 11M0252CP
Sensor - Accelerometer 		$191.50 2
016 00RA055
NUT - M6 - LOCKING - HEX 		- 6 Enquire
017 11B0699CP
Pipe - Suspension - APMU - LH Tunnel & Lateral Lower Pipe - Front - LHD 		- 1 Enquire
018 11B1272CP
Pipe - Suspension - APMU RH to Lateral Lower Pipe - Front - RHD 		$1,233.69 1
018 11B0698CP
Pipe - Suspension - APMU - RH Tunnel & Lateral Lower Pipe - Front - LHD 		- 1 Enquire
019 11B1287CP
Hose - Suspension - Lateral - Front - Upper - RHD 		$2,621.59 1
019 11B1140CP
Hose - Suspension - Lateral - Front - Upper - LHD 		- 1 Enquire
020 00RB050
Saddle Clamp - 13-15 		- 2 Enquire
021 11B0622CP
BRKT-SUSPENSION PI24 		$43.07 2
022 11B1143CP
Hose - Suspension - Lateral - Front - Lower - RHD 		$771.03 1
022 11B1141CP
Hose - Suspension - Lateral - Front - Lower - LHD 		- 1 Enquire
023 11B0216CP
ASSY-PIPE-LINE-LONGI-FR-RH-FR 		$655.39 1
024 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
025 00RB003
P Clip - DIA 14 		- 4 Enquire
026 11B1346CP
Pipe - Suspension - Frame to Lateral Upper Pipe - Rear - RH 		$1,426.46 1
027 11B1345CP
Pipe - Suspension - LH Frame to Lateral Lower Pipe - Rear 		$1,407.17 1
028 11B0217CP
ASSY-PIPE-LINE-LONGI-FR-LH-FR 		$366.22 1
029 00RA357
PIPE PROTECTOR 		- 6 Enquire
030 00RB022
Clip - 4-4.8mm - Female 		- 2 Enquire
031 11B0956CP
Bracket - Pipe - Suspension - Nose Lift
Superseded parts: 11B0956CP; 		- 1 Enquire
032 00RB098
P-CLIP - DIA 10 - SILICONE 		- 1 Enquire
033 00RA054
Nut - M5 - Lock Hex 		- - Enquire
034 11B0998CP
Clip - Double - DIA 10mm - Moulded - A Ray 		$4.59 2
035 11B1104CP
Clip - Single - DIA 10mm - Moulded 		$17.32 1
036 11B1111CP
Hose - Suspension - Front - Centre - Nose Lift 		$578.27 1
037 11B1109CP
Hose - Suspension - Front - Left - Nose Lift 		$443.34 1
038 11B1110CP
Hose - Suspension - Front - Right - Nose Lift
Superseded parts: 11B1110CP; 		- 1 Enquire
039 11B1103CP
Valve Block - Nose lift
Superseded parts: 11B0954CP; 		$402.17 1
040 00RL004
FELT TAPE
Felt Tape; 		- 3 Enquire
041 11B0989CP
Bracket - Valve Block - Nose Lift
Superseded parts: 11B0989CP; 		- 1 Enquire
042 00RA087
SCREW - M5X10 - HEX 		- 2 Enquire
043 11B0988CP
Bracket - Bodyside to Valve Block - Nose Lift
Superseded parts: 11B0988CP; 		- 1 Enquire
044 11D0124CP
MOUNT - AV - RUBBER 		$33.73 1
045 12F0684CP
Banjo Bolt - M14x1.5 		$43.35 4
046 12F0685CP
Washer - Sealing - M14 		$9.63 8
047 11F1277SP
Washer - M10 x 1.27 x 14.8 		$1.14 4
