McLaren 675LT Coupe - 14 - L1 - COOLING SYSTEM - 14.1 - 01 - LOW TEMPERATURE CIRCUIT & PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB113 Hose Clamp - 22.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA458 BOLT - M6X10 - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB003 P Clip - DIA 14 Enquire To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
11L0354CP Hose - Low Temperature Radiator - Return - Outer - MY2015 $1,131.79 To Order
Photo Part No Description Price (each) Stock
11L0285CP PIPE - LTR RETURN LH $182.23 To Order
Photo Part No Description Price (each) Stock
11L0266CP Hose - LTR - Return - Outer - LH $124.67 To Order
Photo Part No Description Price (each) Stock
11L0353CP Hose - Low Temperature Radiator -Feed - MY2015 $613.86 To Order
Photo Part No Description Price (each) Stock
11L0264CP Hose - LTR - Feed - Inner - LH $124.67 To Order
Photo Part No Description Price (each) Stock
11L0276CP Hose - LTR - Feed - Inner - RH $123.88 To Order
Photo Part No Description Price (each) Stock
11L0283CP PIPE - LTR FEED LH $381.17 To Order
Photo Part No Description Price (each) Stock
11L0265CP Hose - LTR - Feed - Outer - LH $114.34 To Order
Photo Part No Description Price (each) Stock
11L0350CP Hose - Low Temperature Radiator - Return - MY2015 $1,131.79 To Order
Photo Part No Description Price (each) Stock
11L0268CP Hose - LTR - Return - Outer - RH $115.08 To Order
Photo Part No Description Price (each) Stock
11L0286CP Pipe - LTR - Return - RH $381.17 To Order
Photo Part No Description Price (each) Stock
11L0267CP Hose - LTR - Return - Inner - LH $105.49 To Order
Photo Part No Description Price (each) Stock
11L0269CP Hose - LTR - Return - Inner - RH $105.49 To Order
Photo Part No Description Price (each) Stock
11L0351CP Hose - Low Temperature Radiator - Front - MY2015 $978.32 To Order
Photo Part No Description Price (each) Stock
11L0277CP Hose - LTR - Feed - Outer - RH $114.34 To Order
Photo Part No Description Price (each) Stock
11L0284CP PIPE - LTR FEED RH $163.03 To Order
Photo Part No Description Price (each) Stock
11L0203CP HOSE - LTR CIRCUIT - FEED - CENTRE $460.38 To Order
Photo Part No Description Price (each) Stock
11L0309CP CLIP - 2 WAY - LH $11.48 To Order
Photo Part No Description Price (each) Stock
11L0204CP HOSE RETURN-LTR CIRCUIT-CTR $422.01 To Order
Photo Part No Description Price (each) Stock
11L0306CP CLIP-7 WAY RH 24 $16.29 To Order
Photo Part No Description Price (each) Stock
11L0345CP CLIP - HVAC TUNNEL $47.95 To Order
Photo Part No Description Price (each) Stock
11L0525RP Hose - Water Charge Air Cooler Return - LH - 675LT $441.20 To Order
Photo Part No Description Price (each) Stock
11L0308CP Clip - Chassis Tunnel $19.16 To Order
Photo Part No Description Price (each) Stock
11L0303CP PIPE CLIP-RR-LH 24 $13.41 To Order
Photo Part No Description Price (each) Stock
11L0305CP Pipe Clip - 5 Way $14.37 To Order
Photo Part No Description Price (each) Stock
11L0524RP Hose - Water Charge Air Cooler Return - RH - 675LT $460.38 To Order
Photo Part No Description Price (each) Stock
11L0346CP Pipe Clip - 8 Way $38.35 To Order
Photo Part No Description Price (each) Stock
11L0347CP Pipe Clip - Rear - Right $43.14 To Order
Photo Part No Description Price (each) Stock
13L0190CP HOSE - WATER CHARGE AIR COOLER - OUTLET $882.43 To Order
Photo Part No Description Price (each) Stock
11L0298CP PIPE-INC BRKTS-FEED-WCAC $422.01 To Order
Photo Part No Description Price (each) Stock
11L0294CP Hose - Engine Front - Low Temperature Radiator - LH $115.08 To Order
Photo Part No Description Price (each) Stock
11L0275CP Hose - Header to LTR Pump - Feed $91.10 To Order
Photo Part No Description Price (each) Stock
11L0297CP Hose - Header - Y-Piece - Low Temperature Radiator $105.49 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
View All

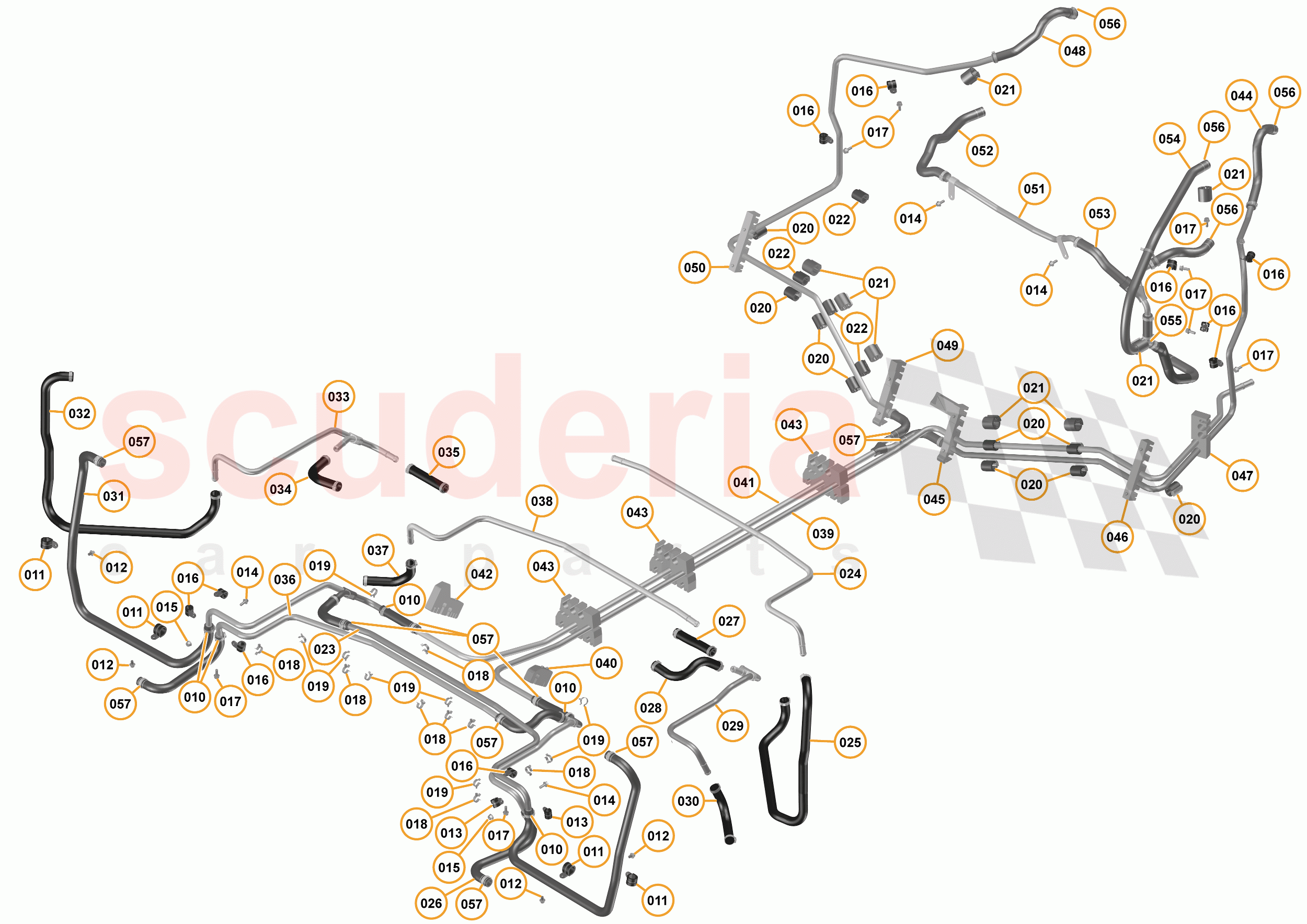

14 - L1 - COOLING SYSTEM - 14.1 - 01 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB113
Hose Clamp - 22.6-706R 		- 14 Enquire
011 00RB060
P CLIP - DIA 20 		- 4 Enquire
012 00RA458
BOLT - M6X10 - FLANGED 		- 4 Enquire
013 00RB027
P-CLIP - DIAMETER 13 - M6 		- 2 Enquire
014 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
015 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
016 00RB003
P Clip - DIA 14 		- 9 Enquire
017 00RA061
Screw - M6x16 - Flange Hex 		- 10 Enquire
018 00RB032
CLIP - 13-14MM - FEMALE 		- 9 Enquire
019 00RB044
SWIVEL PIPE CLIP - 16MM 		- 7 Enquire
020 00RA357
PIPE PROTECTOR 		- 9 Enquire
021 00RA367
PIPE PROTECTOR - 19MM ID 		- 9 Enquire
022 00RA366
PIPE PROTECTOR - 13MM ID 		- 4 Enquire
023 11L0354CP
Hose - Low Temperature Radiator - Return - Outer - MY2015 		$1,131.79 1
024 11L0285CP
PIPE - LTR RETURN LH 		$182.23 1
025 11L0266CP
Hose - LTR - Return - Outer - LH 		$124.67 1
026 11L0353CP
Hose - Low Temperature Radiator -Feed - MY2015 		$613.86 1
027 11L0264CP
Hose - LTR - Feed - Inner - LH 		$124.67 1
028 11L0276CP
Hose - LTR - Feed - Inner - RH 		$123.88 1
029 11L0283CP
PIPE - LTR FEED LH 		$381.17 1
030 11L0265CP
Hose - LTR - Feed - Outer - LH 		$114.34 1
031 11L0350CP
Hose - Low Temperature Radiator - Return - MY2015 		$1,131.79 1
032 11L0268CP
Hose - LTR - Return - Outer - RH 		$115.08 1
033 11L0286CP
Pipe - LTR - Return - RH 		$381.17 1
034 11L0267CP
Hose - LTR - Return - Inner - LH 		$105.49 1
035 11L0269CP
Hose - LTR - Return - Inner - RH 		$105.49 1
036 11L0351CP
Hose - Low Temperature Radiator - Front - MY2015 		$978.32 1
037 11L0277CP
Hose - LTR - Feed - Outer - RH 		$114.34 1
038 11L0284CP
PIPE - LTR FEED RH 		$163.03 1
039 11L0203CP
HOSE - LTR CIRCUIT - FEED - CENTRE 		$460.38 1
040 11L0309CP
CLIP - 2 WAY - LH 		$11.48 1
041 11L0204CP
HOSE RETURN-LTR CIRCUIT-CTR 		$422.01 1
042 11L0306CP
CLIP-7 WAY RH 24 		$16.29 1
043 11L0345CP
CLIP - HVAC TUNNEL 		$47.95 3
044 11L0525RP
Hose - Water Charge Air Cooler Return - LH - 675LT 		$441.20 -
045 11L0308CP
Clip - Chassis Tunnel 		$19.16 1
046 11L0303CP
PIPE CLIP-RR-LH 24 		$13.41 1
047 11L0305CP
Pipe Clip - 5 Way 		$14.37 1
048 11L0524RP
Hose - Water Charge Air Cooler Return - RH - 675LT 		$460.38 -
049 11L0346CP
Pipe Clip - 8 Way 		$38.35 1
050 11L0347CP
Pipe Clip - Rear - Right 		$43.14 1
051 13L0190CP
HOSE - WATER CHARGE AIR COOLER - OUTLET 		$882.43 1
052 11L0298CP
PIPE-INC BRKTS-FEED-WCAC 		$422.01 1
053 11L0294CP
Hose - Engine Front - Low Temperature Radiator - LH 		$115.08 1
054 11L0275CP
Hose - Header to LTR Pump - Feed 		$91.10 1
055 11L0297CP
Hose - Header - Y-Piece - Low Temperature Radiator 		$105.49 1
056 00RB202
CLAMP - SPRING BAND - 23X12 		- 4 Enquire
057 00RB201
CLAMP - SPRING BAND - 21X12 		- 10 Enquire
