12 - D1 - Steering System - 12.1 - 01 - Steering System

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 12 - D1 - STEERING SYSTEM - 12.1 - 01 - STEERING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11D0091CP Gaiter Kit - Steering Rack $28.96 To Order
Photo Part No Description Price (each) Stock
11D0116CP Nut & Bolt - Steering Column - Intermediate $8.86 To Order
Photo Part No Description Price (each) Stock
11D0233CP Hose - Pipe - Filter to Steering Rack - RHD - 675LT $386.43 To Order
11D0232CP Hose - Pipe - Filter to Steering Rack - LHD - 675LT Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA570 BOLT - M10X1.5X75 Enquire To Order
Photo Part No Description Price (each) Stock
11D0113CP HOSE-RESERVOIR TO 24LTER + PUM $483.05 To Order
11D0111CP Hose - PAS Reservoir - Filter - EHPAS - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RB143 CLAMP - 25.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
11D0249RP HEATSHIELD - TRACKROD - 675LT $53.98 To Order
Photo Part No Description Price (each) Stock
13DA034CP RESERVOIR - PAS FLUID $77.28 To Order
Photo Part No Description Price (each) Stock
11C0502CP CAP-EHPAS RESERVOIR $124.77 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
11D0103CP Bracket - PAS Fluid Reservoir $81.57 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11D0181CP Hose - PAS Pump to APMU - RHD - Noselift $825.49 To Order
11D0137CP ASSY HOSE-FEED-PUM24TO MANIFOL Enquire To Order
11D0145CP Hose - PAS Pump to APMU - LHD - Noselift Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11D0074CP Pump - PAS - Steering $2,457.30 To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
11D0129CP Cover - Pump - PAS - Steering $144.91 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11D0126CP Bracket - Power Steering Pump - RHD $537.52 To Order
11D0125CP Bracket - Power Steering Pump - LHD Enquire To Order
Photo Part No Description Price (each) Stock
11D0245RP STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S - 540C - 720S $227.24 To Order
11D0244RP STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S - 540C - 720S Enquire To Order
Photo Part No Description Price (each) Stock
11D0254CP GAITER-STEERING CO24MN $28.96 To Order
Photo Part No Description Price (each) Stock
00RB049 HOSE CLAMP - 40-60MM Enquire To Order
Photo Part No Description Price (each) Stock
11D0273RP Steering Rack - LHD - 675LT Enquire To Order
11D0274RP Steering Rack - RHD - 675LT $5,783.85 To Order
Photo Part No Description Price (each) Stock
00RA572 LOCK NUT - TRACKROD Enquire To Order
Photo Part No Description Price (each) Stock
11D0250RP WASHER - TRACKROD - OUTER BALL JOINT - 675LT $18.34 To Order
Photo Part No Description Price (each) Stock
11D0231CP Hose - APMU to Steering Rack - RHD - Tedrive Rack $268.75 To Order
11D0230CP Hose - APMU to Steering Rack - LHD - Tedrive Rack Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11D0127CP BRKT-ANGLE-POWER S24ER BRKT TO $62.78 To Order
Photo Part No Description Price (each) Stock
11D0124CP MOUNT - AV - RUBBER $33.81 To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11D0095CP FILTER - PAS - STEERING $541.01 To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
11D0100CP O-ring - Hose - EHPAS Pump $5.58 To Order
Photo Part No Description Price (each) Stock
11D0102CP Back-up Ring - Hose - EHPAS Pump $4.60 To Order
Photo Part No Description Price (each) Stock
11D0081RP Ball Joint - Steering Rack - Outer - 675LT $135.24 To Order
View All

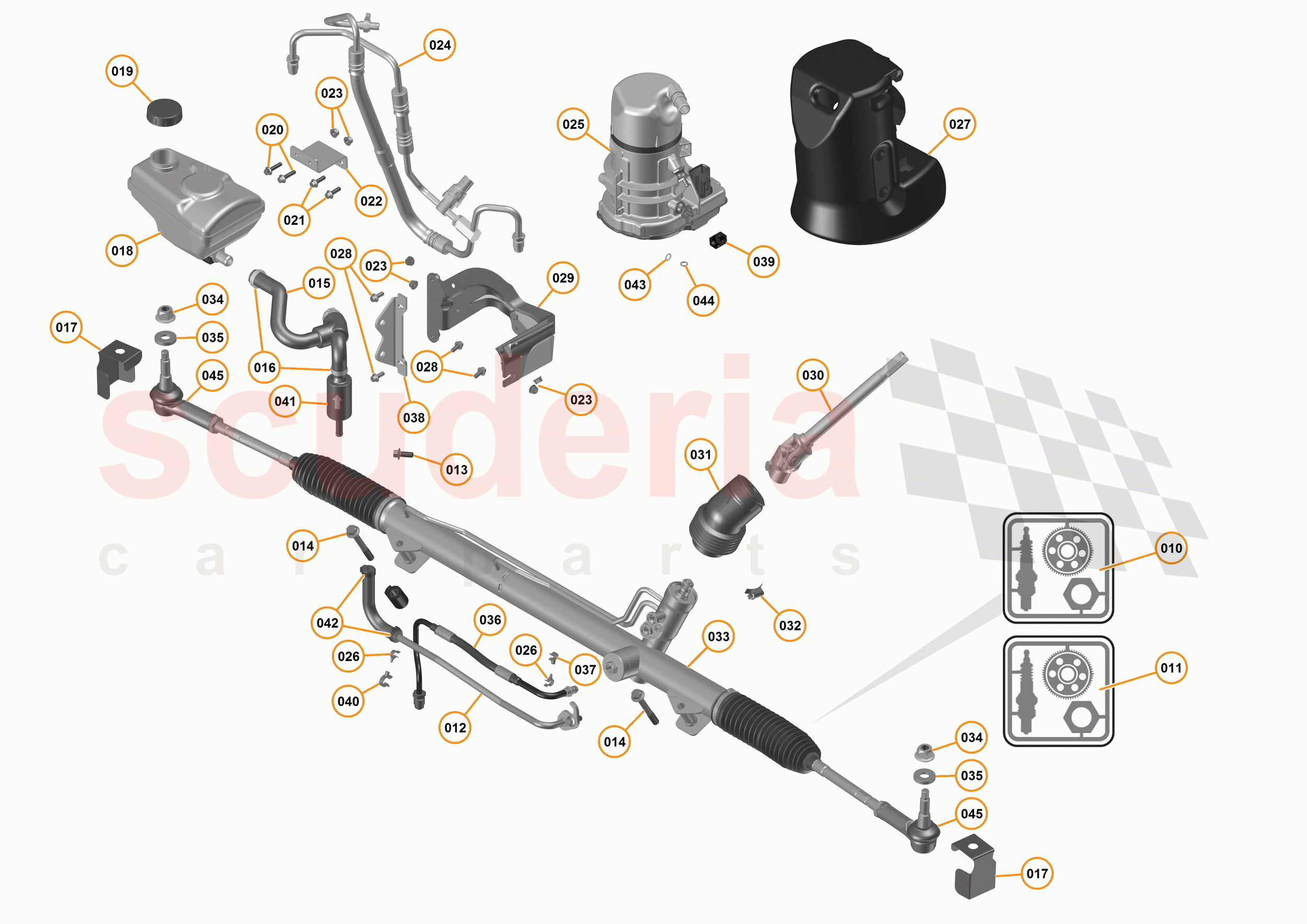

12 - D1 - STEERING SYSTEM - 12.1 - 01 - STEERING SYSTEM of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11D0091CP
Gaiter Kit - Steering Rack 		$28.96 1
011 11D0116CP
Nut & Bolt - Steering Column - Intermediate 		$8.86 1
012 11D0233CP
Hose - Pipe - Filter to Steering Rack - RHD - 675LT 		$386.43 1
012 11D0232CP
Hose - Pipe - Filter to Steering Rack - LHD - 675LT 		- 1 Enquire
013 00RA002
BOLT - M8X20 - HEX 		- 2 Enquire
014 00RA570
BOLT - M10X1.5X75 		- 2 Enquire
015 11D0113CP
HOSE-RESERVOIR TO 24LTER + PUM 		$483.05 1
015 11D0111CP
Hose - PAS Reservoir - Filter - EHPAS - LHD 		- 1 Enquire
016 00RB143
CLAMP - 25.6-706R 		- 2 Enquire
017 11D0249RP
HEATSHIELD - TRACKROD - 675LT 		$53.98 4
018 13DA034CP
RESERVOIR - PAS FLUID 		$77.28 2
019 11C0502CP
CAP-EHPAS RESERVOIR 		$124.77 1
020 00RA120
SCREW - M6X25 - HEX 		- 2 Enquire
021 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
022 11D0103CP
Bracket - PAS Fluid Reservoir 		$81.57 2
023 00RA055
NUT - M6 - LOCKING - HEX 		- 6 Enquire
024 11D0181CP
Hose - PAS Pump to APMU - RHD - Noselift 		$825.49 1
024 11D0137CP
ASSY HOSE-FEED-PUM24TO MANIFOL
Superseded parts: 11D0137CP; 		- 1 Enquire
024 11D0145CP
Hose - PAS Pump to APMU - LHD - Noselift 		- 1 Enquire
024 11D0149CP
Hose - PAS Pump to APMU - LHD
Superseded parts: 11D0136CP; 		- 1 Enquire
025 11D0074CP
Pump - PAS - Steering 		$2,457.30 2
026 00RB045
CLIP - 9.5-10MM - MALE 		- 2 Enquire
027 11D0129CP
Cover - Pump - PAS - Steering 		$144.91 2
028 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
029 11D0126CP
Bracket - Power Steering Pump - RHD 		$537.52 1
029 11D0125CP
Bracket - Power Steering Pump - LHD 		- 1 Enquire
030 11D0245RP
STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S - 540C - 720S 		$227.24 1
030 11D0244RP
STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S - 540C - 720S 		- 1 Enquire
031 11D0254CP
GAITER-STEERING CO24MN
Superseded parts: 11D0045CP; 		$28.96 2
032 00RB049
HOSE CLAMP - 40-60MM 		- 1 Enquire
033 11D0273RP
Steering Rack - LHD - 675LT 		- 1 Enquire
033 11D0274RP
Steering Rack - RHD - 675LT 		$5,783.85 1
034 00RA572
LOCK NUT - TRACKROD 		- 2 Enquire
035 11D0250RP
WASHER - TRACKROD - OUTER BALL JOINT - 675LT 		$18.34 2
036 11D0231CP
Hose - APMU to Steering Rack - RHD - Tedrive Rack 		$268.75 1
036 11D0230CP
Hose - APMU to Steering Rack - LHD - Tedrive Rack 		- 1 Enquire
037 00RB046
CLIP - 8-9MM - FEMALE 		- 1 Enquire
038 11D0127CP
BRKT-ANGLE-POWER S24ER BRKT TO 		$62.78 1
039 11D0124CP
MOUNT - AV - RUBBER 		$33.81 4
040 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
041 11D0095CP
FILTER - PAS - STEERING 		$541.01 1
042 00RB110
OETIKER CLIP - 19.2 		- 2 Enquire
043 11D0100CP
O-ring - Hose - EHPAS Pump 		$5.58 1
044 11D0102CP
Back-up Ring - Hose - EHPAS Pump 		$4.60 1
045 11D0081RP
Ball Joint - Steering Rack - Outer - 675LT 		$135.24 1
