17 - Suspension - Rear - 17.3 - Transverse Links Rear

McLaren 620R

Find Your Part

McLaren 620R - 17 - SUSPENSION - REAR - 17.3 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14BA018CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH $19.30 To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $144.88 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.56 To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $33.80 To Order
Photo Part No Description Price (each) Stock
14BA020CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH $19.30 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
31BA083CP WISHBONE - UPPER - REAR - LH $1,642.09 To Order
Photo Part No Description Price (each) Stock
31BA084CP WISHBONE - UPPER - REAR - RH $1,642.09 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.29 To Order
Photo Part No Description Price (each) Stock
31BA080CP WISHBONE - LOWER - REAR - LH $1,642.09 To Order
Photo Part No Description Price (each) Stock
11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID $48.29 To Order
Photo Part No Description Price (each) Stock
31BA085CP WISHBONE - LOWER - REAR - RH $1,642.09 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
View All

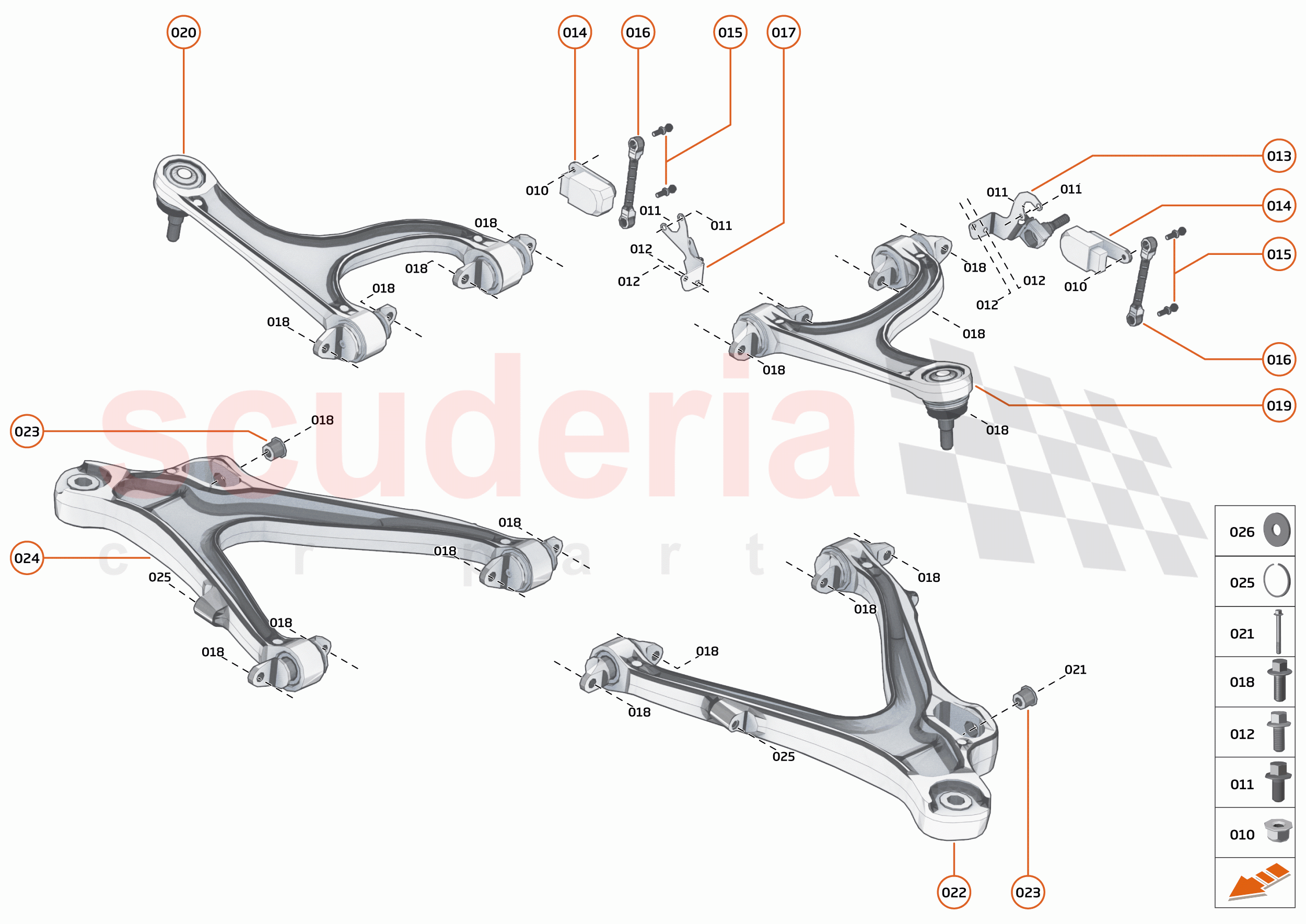

17 - SUSPENSION - REAR - 17.3 - TRANSVERSE LINKS REAR of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
011 00RA087
SCREW - M5X10 - HEX 		- 3 Enquire
012 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
013 14BA018CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH 		$19.30 1
014 11M0253CP
Sensor - Displacement 		$144.88 1
015 14B0545CP
BALL STUD - DISPLACEMENT SENSOR 		$11.56 2
016 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL 		$33.80 1
017 14BA020CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH 		$19.30 1
018 00RA457
SCREW - M10X30-10.9 - HEX 		- 4 Enquire
019 31BA083CP
WISHBONE - UPPER - REAR - LH 		$1,642.09 1
020 31BA084CP
WISHBONE - UPPER - REAR - RH 		$1,642.09 1
021 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER 		$8.29 1
022 31BA080CP
WISHBONE - LOWER - REAR - LH 		$1,642.09 1
023 11B0800CP
Tophat - Spacer - Diameter 20 - 10.2 ID 		$48.29 1
024 31BA085CP
WISHBONE - LOWER - REAR - RH 		$1,642.09 1
025 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- 1 Enquire
026 00RC065
WASHER - M10X21X2.0 		- 4 Enquire
