17 - Suspension - Rear - 17.2 - Uprights Rear

McLaren 620R

Find Your Part

McLaren 620R - 17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $12.52 To Order
Photo Part No Description Price (each) Stock
31BA008CP ASSY UPRIGHT RR-RH $5,309.04 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.34 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $43.41 To Order
Photo Part No Description Price (each) Stock
31BA006CP ASSY UPRIGHT RR-LH $5,405.57 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.72 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.88 To Order
Photo Part No Description Price (each) Stock
00RA759 BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER $15.41 To Order
Photo Part No Description Price (each) Stock
14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER $15.41 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.43 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
Photo Part No Description Price (each) Stock
15BA256CP HUB WHEEL BEARING - CENTRE LOCK - LH - REAR $4,181.47 To Order
Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA257CP HUB WHEEL BEARING - CENTRE LOCK - RH - REAR $4,181.47 To Order
View All

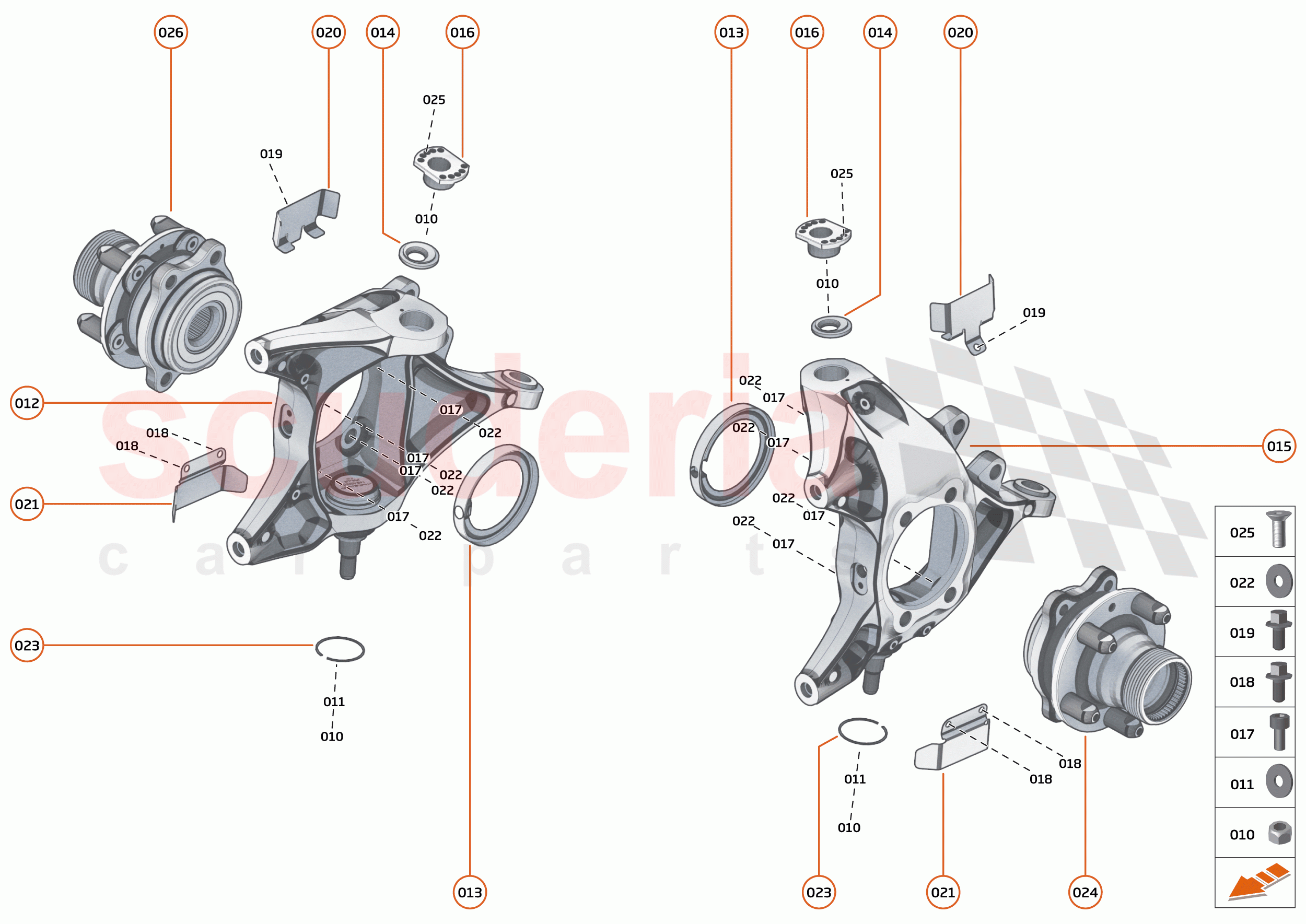

17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA229
NUT - M14X1.5 - LOCKED HEX 		- - Enquire
011 11B0320CP
WASHER - DIA 35X3.9X14.5 		$12.52 -
012 31BA008CP
ASSY UPRIGHT RR-RH 		$5,309.04 1
013 15BA315CP
PROTECTOR CAP - HUB 		$38.34 -
014 11B0739CP
WASHER - CAMBER ADJUSTMENT 		$43.41 -
015 31BA006CP
ASSY UPRIGHT RR-LH 		$5,405.57 1
016 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.72 -
017 14B0714CP
WASHER - M12X23 		$2.88 -
018 00RA759
BLT-HX HD-FL-M5X0.8X8-8.8-81-L - M5X8 - HEX 		- - Enquire
019 00RA165
BOLT - M5X8 - HEX 		- - Enquire
020 14B0631CP
HEATSHIELD - BALL JOINT - REAR - UPPER 		$15.41 -
021 14B0632CP
HEATSHIELD - BALL JOINT - REAR - LOWER 		$15.41 -
022 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.43 -
023 00RA218
RING-PLAIN EXTERNAL-M2400-0400 		- - Enquire
024 15BA256CP
HUB WHEEL BEARING - CENTRE LOCK - LH - REAR 		$4,181.47 1
025 RA250
SCREW - M3X12 - HEX 		- 1 Enquire
026 15BA257CP
HUB WHEEL BEARING - CENTRE LOCK - RH - REAR 		$4,181.47 1
