McLaren 620R - 23 - BRAKES - SYSTEMS - 23.4 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
13C0166CP BRAKE PIPE - ABS MODULATOR TO HOSE - REAR - LH $67.69 To Order
Photo Part No Description Price (each) Stock
13C0167CP BRAKE PIPE - ABS MODULATOR TO HOSE - REAR - RH $67.69 To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13C0186CP BRACKET - BRAKE PIPE - REAR - RH $16.43 To Order
Photo Part No Description Price (each) Stock
13C0185CP BRACKET - BRAKE PIPE - REAR - LH $15.45 To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13C0203CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH $91.88 To Order
Photo Part No Description Price (each) Stock
11C0392CP PIPE CLIP - 5 WAY - BRAKE PIPE $24.17 To Order
Photo Part No Description Price (each) Stock
13C0202CP BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH $96.71 To Order
Photo Part No Description Price (each) Stock
11C0237CP CLAMP - CHASSIS TUNNEL $38.67 To Order
Photo Part No Description Price (each) Stock
11CA014CP FOAM PAD-PIPE-VAC-BRAKE $23.29 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14C0118CP BRACKET - BRAKE PIPE - FRONT - RH $28.82 To Order
Photo Part No Description Price (each) Stock
14C0119CP BRACKET - BRAKE PIPE - FRONT - LH $28.82 To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
13CA171RP BRAKE PIPE - ABS MODULATOR TO FRAME - FRONT - LH $67.69 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB024 CLIP - 6.0-6.5MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
13CA184RP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - FRONT-RHD $19.26 To Order
13CA173RP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - FRONT-LHD $58.01 To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP-DOUBLE-DIA 6 24 Enquire To Order
Photo Part No Description Price (each) Stock
13CA186RP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - FRONT-RHD $15.98 To Order
13CA177RP BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - FRONT-LHD $58.01 To Order
Photo Part No Description Price (each) Stock
13C0188CP BRAKE HOSE - CARBON - REAR $81.68 To Order
Photo Part No Description Price (each) Stock
11C0040CP BRAKE HOSE - IRON - CARBON - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
00RB177 CLIP - HOSE - TRIPLE Enquire To Order
Photo Part No Description Price (each) Stock
11C0391CP Clip - Single - DIA 6mm - Moulded $5.79 To Order
Photo Part No Description Price (each) Stock
13CA175RP BRAKE PIPE - ABS MODULATOR TO FRAME - FRONT - RH $28.99 To Order
View All

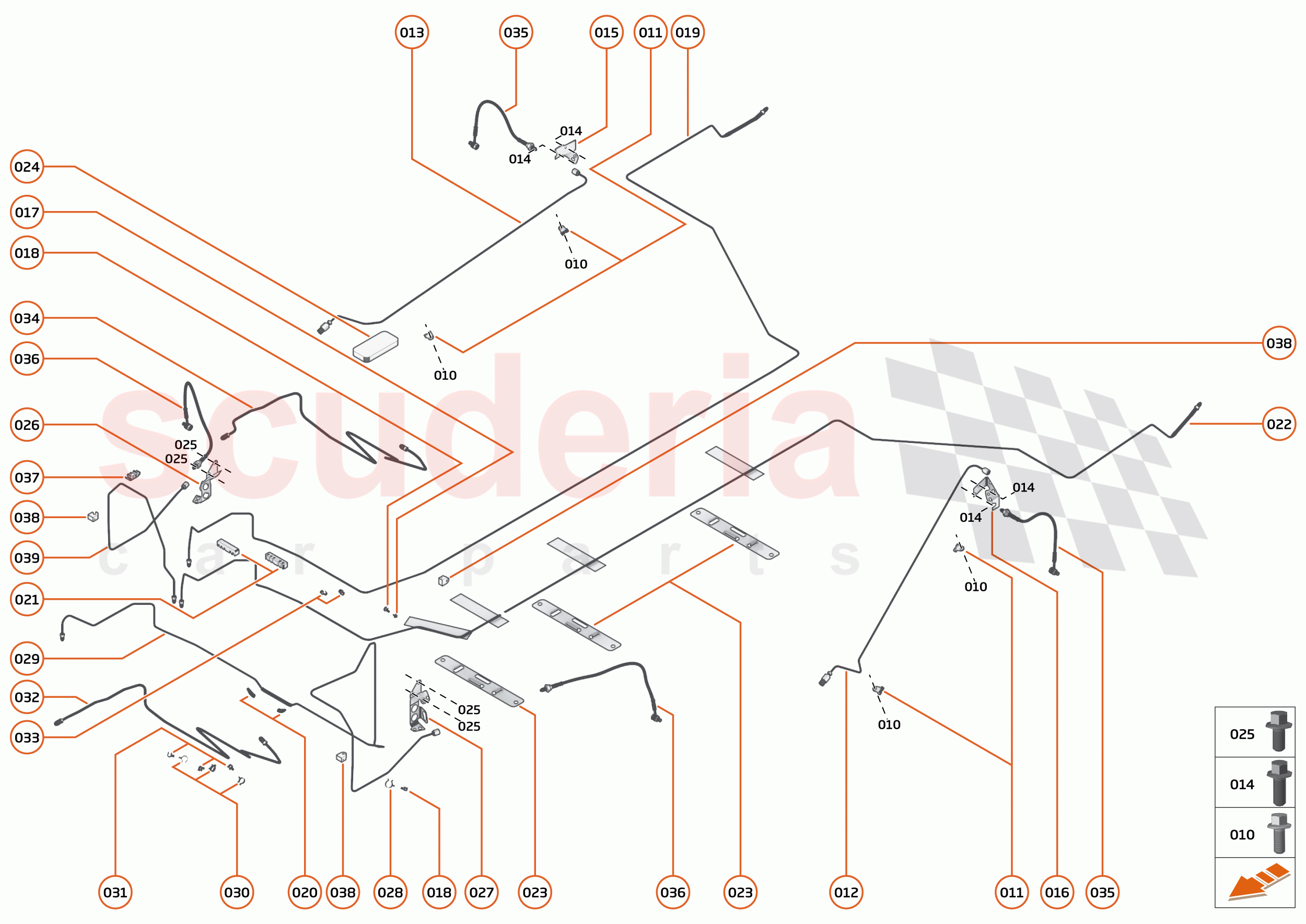

23 - BRAKES - SYSTEMS - 23.4 - BRAKE PIPES of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
011 00RB063
P CLIP - DIA 6 (M6) 		- 2 Enquire
012 13C0166CP
BRAKE PIPE - ABS MODULATOR TO HOSE - REAR - LH 		$67.69 1
013 13C0167CP
BRAKE PIPE - ABS MODULATOR TO HOSE - REAR - RH 		$67.69 1
014 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
015 13C0186CP
BRACKET - BRAKE PIPE - REAR - RH 		$16.43 1
016 13C0185CP
BRACKET - BRAKE PIPE - REAR - LH 		$15.45 1
017 00RB042
SWIVEL PIPE CLIP 		- 1 Enquire
018 00RB168
SWIVEL CLIP - 4.3-5.2 - FEMALE 		- 1 Enquire
019 13C0203CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - RH 		$91.88 1
021 11C0392CP
PIPE CLIP - 5 WAY - BRAKE PIPE 		$24.17 2
022 13C0202CP
BRAKE PIPE - ABS MODULATOR TO FRAME - REAR - LH 		$96.71 1
023 11C0237CP
CLAMP - CHASSIS TUNNEL 		$38.67 3
024 11CA014CP
FOAM PAD-PIPE-VAC-BRAKE 		$23.29 1
025 00RA087
SCREW - M5X10 - HEX 		- 2 Enquire
026 14C0118CP
BRACKET - BRAKE PIPE - FRONT - RH 		$28.82 1
027 14C0119CP
BRACKET - BRAKE PIPE - FRONT - LH 		$28.82 1
028 00RB044
SWIVEL PIPE CLIP - 16MM 		- 1 Enquire
029 13CA171RP
BRAKE PIPE - ABS MODULATOR TO FRAME - FRONT - LH 		$67.69 1
030 00RB018
CLIP - 11-13MM - MALE 		- 3 Enquire
031 00RB024
CLIP - 6.0-6.5MM - FEMALE 		- 3 Enquire
032 13CA184RP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - FRONT-RHD 		$19.26 1
032 13CA173RP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER PRIMARY - FRONT-LHD 		$58.01 1
033 00RB043
CLIP-DOUBLE-DIA 6 24 		- 2 Enquire
034 13CA186RP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - FRONT-RHD 		$15.98 1
034 13CA177RP
BRAKE PIPE - ABS MODULATOR - MASTER CYLINDER SECONDARY - FRONT-LHD 		$58.01 1
035 13C0188CP
BRAKE HOSE - CARBON - REAR 		$81.68 1
036 11C0040CP
BRAKE HOSE - IRON - CARBON - FRONT 		- 1 Enquire
037 00RB177
CLIP - HOSE - TRIPLE 		- 1 Enquire
038 11C0391CP
Clip - Single - DIA 6mm - Moulded 		$5.79 2
039 13CA175RP
BRAKE PIPE - ABS MODULATOR TO FRAME - FRONT - RH 		$28.99 1
