McLaren 620R - 30 - FLUIDS - HVAC - 30.1 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $444.01 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4262CP ASSY HOSE RECIEVER DRIER-HVAC- $366.77 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC008 WASHER - M6X12.5X0.9 Enquire To Order
Photo Part No Description Price (each) Stock
13LA034CP BRACKET - SUPPORT - HVAC $76.60 To Order
11A4587CP Bracket - Heater Pipe - Support - Non-Federal $33.78 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $62.72 To Order
Photo Part No Description Price (each) Stock
13A2974CP ASSY-TUNNEL IHX UNIT $347.49 To Order
Photo Part No Description Price (each) Stock
28LA001CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $91.68 To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A4103CP HOSE - CONDENSER TO RECEIVER DRIER $250.96 To Order
Photo Part No Description Price (each) Stock
28LA002CP HOSE - RECEIVER DRIER - HVAC - REAR $345.24 To Order
Photo Part No Description Price (each) Stock
13A3613CP HOSE - CONDENSER LATERAL - LH - HVAC $231.64 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
13AB201CP HOSE - COMPRESSOR TO CONDENSER - HVAC - R1234YF $522.44 To Order
13A3619CP HOSE - COMPRESSOR TO CONDENSER - HVAC $183.39 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
13AA234CP HOSE - COMPRESSOR - REAR - HVAC - R1234YF Enquire To Order
13AA233CP HOSE - COMPRESSOR - REAR - HVAC $270.26 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
13AB200CP HOSE - CONDENSER LATERAL - RH - HVAC $522.44 To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
00RB130 CLIP - SPRING BAND - 22/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 BOLT - M5X16 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4593CP SPACER-HVAC PIPE $24.12 To Order
Photo Part No Description Price (each) Stock
13AB202CP HOSE - HEATER TO PUMP - HVAC $659.48 To Order
Photo Part No Description Price (each) Stock
13AA400CP HOSE - HEATER TO ENGINE - INCLUDING VALVE $231.64 To Order
View All

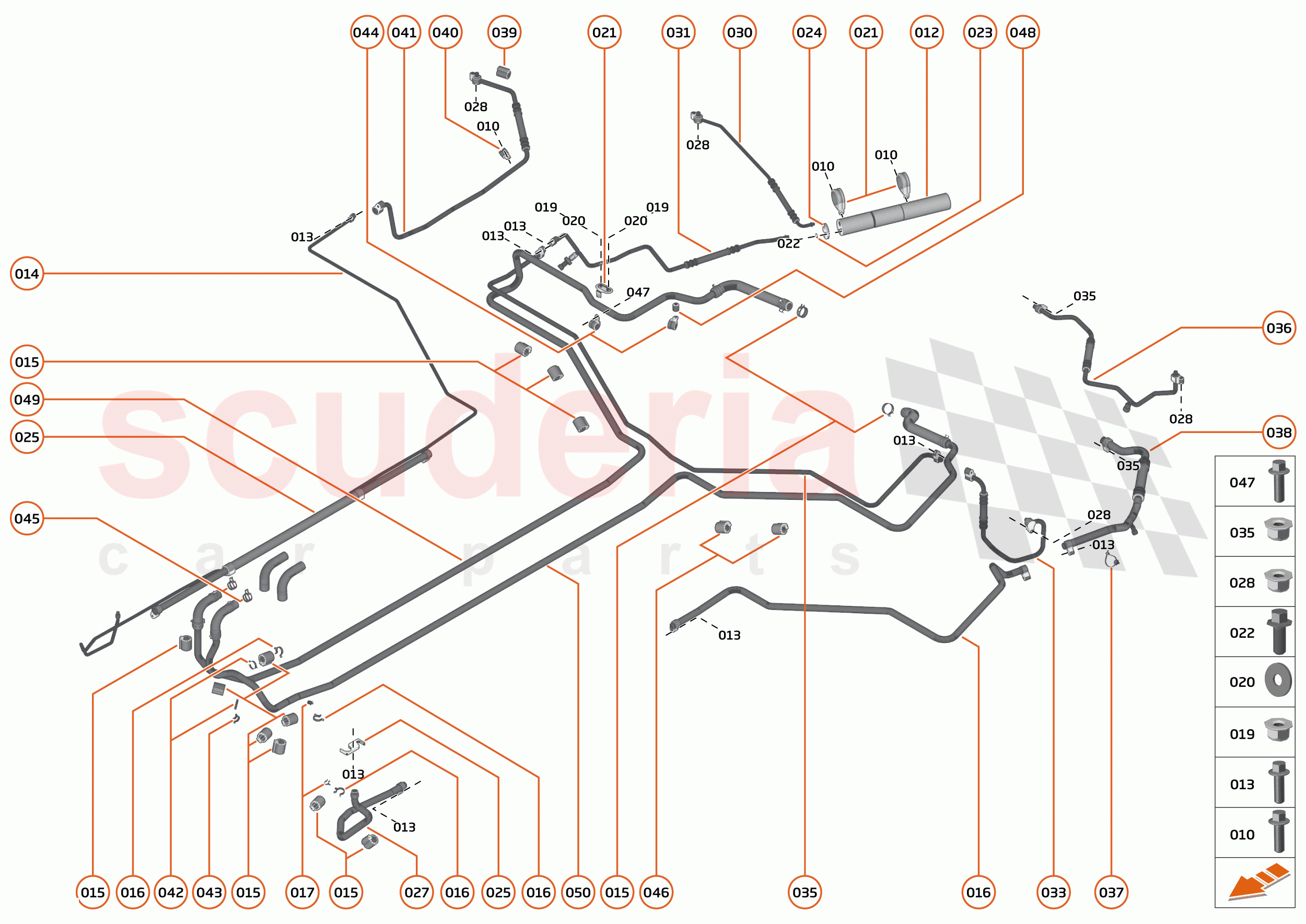

30 - FLUIDS - HVAC - 30.1 - HVAC FLUIDS CIRCUIT of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 2 Enquire
011 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
012 12A2757CP
RECEIVER DRIER - HVAC 		$444.01 1
013 00RA120
SCREW - M6X25 - HEX 		- 1 Enquire
014 11A4262CP
ASSY HOSE RECIEVER DRIER-HVAC- 		$366.77 1
015 00RA367
PIPE PROTECTOR - 19MM ID 		- 2 Enquire
016 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
017 00RB045
CLIP - 9.5-10MM - MALE 		- 1 Enquire
018 13A3309CP
PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR 		$135.12 1
018 11A4263CP
Hose - Compressor - Front - HVAC 		$482.63 1
019 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
020 00RC008
WASHER - M6X12.5X0.9 		- 2 Enquire
021 13LA034CP
BRACKET - SUPPORT - HVAC 		$76.60 1
021 11A4587CP
Bracket - Heater Pipe - Support - Non-Federal 		$33.78 1
022 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
023 00RC038
WASHER - WAVE M8 		- 1 Enquire
024 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$62.72 1
025 13A2974CP
ASSY-TUNNEL IHX UNIT 		$347.49 1
026 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.38 1
027 28LA001CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER 		$91.68 1
028 00RA075
NUT - M8-8 - HEX 		- 1 Enquire
029 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
030 13A4103CP
HOSE - CONDENSER TO RECEIVER DRIER 		$250.96 1
031 28LA002CP
HOSE - RECEIVER DRIER - HVAC - REAR 		$345.24 1
032 11A6627CP
SENSOR - PRESSURE - HVAC 		$306.89 1
033 13A3613CP
HOSE - CONDENSER LATERAL - LH - HVAC 		$231.64 1
034 13A3615CP
HOSE - CONDENSER LATERAL - CENTRE - HVAC 		$135.12 1
035 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 1 Enquire
036 13AB201CP
HOSE - COMPRESSOR TO CONDENSER - HVAC - R1234YF 		$522.44 1
036 13A3619CP
HOSE - COMPRESSOR TO CONDENSER - HVAC 		$183.39 1
037 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
038 13AA234CP
HOSE - COMPRESSOR - REAR - HVAC - R1234YF 		- 1 Enquire
038 13AA233CP
HOSE - COMPRESSOR - REAR - HVAC 		$270.26 1
039 00RA357
PIPE PROTECTOR 		- 1 Enquire
040 00RB005
P CLIP - DIA 16 		- 1 Enquire
041 13AB200CP
HOSE - CONDENSER LATERAL - RH - HVAC 		$522.44 1
042 00RB008
CLIP - 18-20MM - MALE 		- 2 Enquire
043 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
044 00RB060
P CLIP - DIA 20 		- 2 Enquire
045 00RB130
CLIP - SPRING BAND - 22/12 		- 1 Enquire
046 00RB202
CLAMP - SPRING BAND - 23X12 		- 1 Enquire
046 00RB145
CLAMP - SPRING BAND - 26/12 		- 1 Enquire
047 00RX001
BOLT - M5X16 - HEX 		- 1 Enquire
048 11A4593CP
SPACER-HVAC PIPE 		$24.12 1
049 13AB202CP
HOSE - HEATER TO PUMP - HVAC 		$659.48 1
050 13AA400CP
HOSE - HEATER TO ENGINE - INCLUDING VALVE 		$231.64 1
