McLaren 620R - 32 - ENGINE - 32.1 - CYLINDER HEAD & VALVE TRAIN

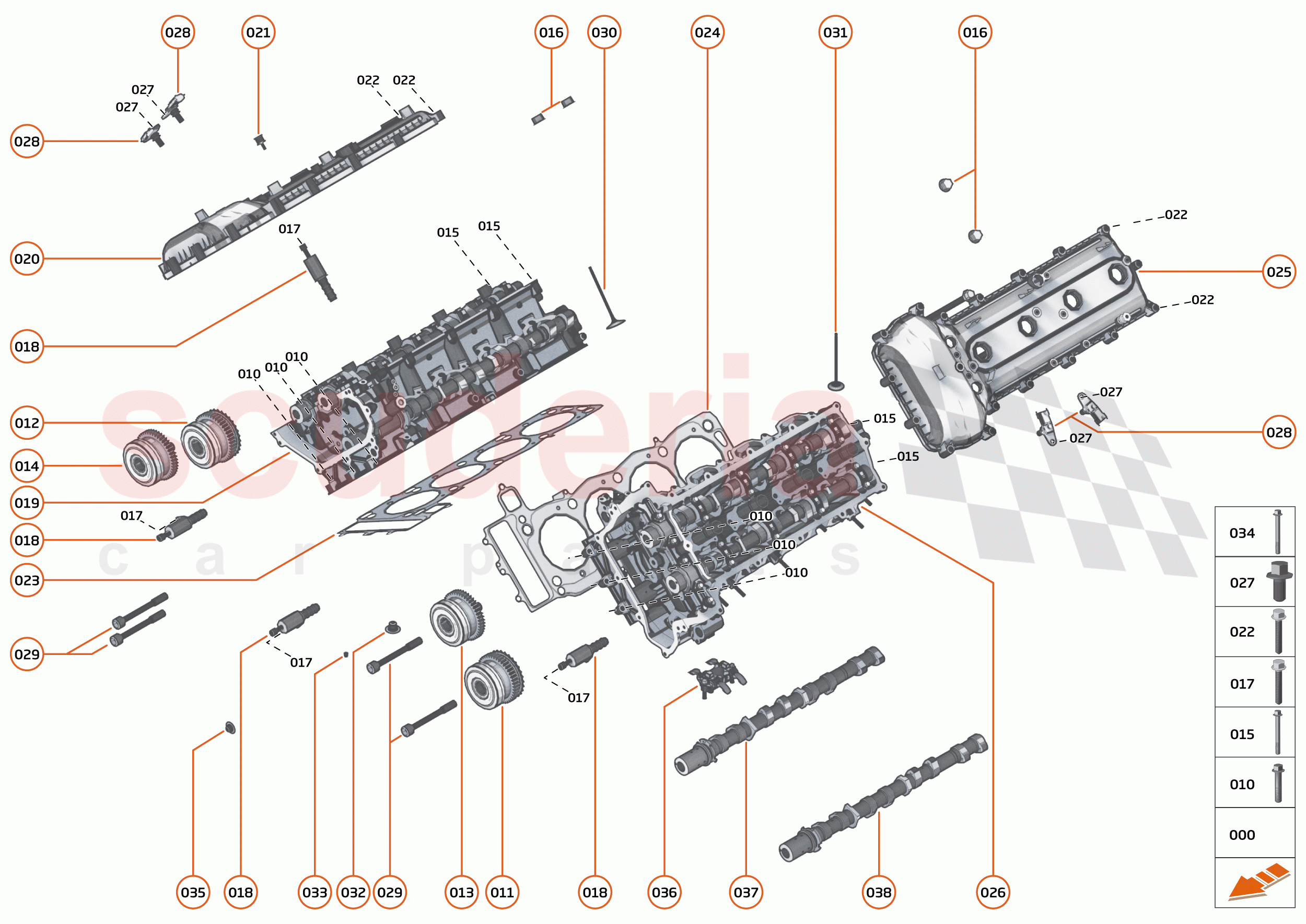

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11FA026CP VALVE SHIM - REPAIR KIT $2,678.69 To Order
11F2741CP SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.505 Enquire To Order
11F2740CP SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.49 Enquire To Order
...and 70 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $9.69 To Order
Photo Part No Description Price (each) Stock
13F0341CP VCT - EXHAUST - LH $620.68 To Order
Photo Part No Description Price (each) Stock
13F0343CP VCT - INTAKE - RH $620.68 To Order
Photo Part No Description Price (each) Stock
13F0345CP VCT - INTAKE - LH $523.69 To Order
Photo Part No Description Price (each) Stock
13F0347CP VCT - EXHAUST - RH $523.69 To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $10.65 To Order
Photo Part No Description Price (each) Stock
13F0812CP CAP - HEAD BOLT $7.75 To Order
Photo Part No Description Price (each) Stock
11F0803CP Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser $6.78 To Order
Photo Part No Description Price (each) Stock
11F2459CP Solenoid - Engine Cam Phaser $192.69 To Order
Photo Part No Description Price (each) Stock
11F2636RP Cylinder Head - Engine - Assy - RH - 675LT - Sports Series $10,333.30 To Order
Photo Part No Description Price (each) Stock
14FA263CP ASSY CAM COVER RH $290.93 To Order
Photo Part No Description Price (each) Stock
11F1060CP Mount - Anti-Vibration - Ignition Coil - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.43 To Order
Photo Part No Description Price (each) Stock
13FA042CP GASKET-CYLINDER HEAD-LH $310.33 To Order
13FA049CP Head Gasket Kit - Inc. Bolts - Engine - RH $368.50 To Order
Photo Part No Description Price (each) Stock
13FA043CP GASKET-CYLINDER HEAD- RH $310.33 To Order
13FA048CP Head Gasket Kit - Inc. Bolts - Engine - LH $368.50 To Order
Photo Part No Description Price (each) Stock
14FA262CP ASSY CAM COVER LH $290.93 To Order
Photo Part No Description Price (each) Stock
11F2635RP Cylinder Head - Engine - Assy - LH - 675LT - Sports Series $10,333.30 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.58 To Order
Photo Part No Description Price (each) Stock
11F0740CP ENGINE CAM PHASE SENSOR $231.24 To Order
Photo Part No Description Price (each) Stock
11F2595CP Bolt - VCT Enquire To Order
Photo Part No Description Price (each) Stock
11F1459CP INTAKE VALVE-STD $29.07 To Order
Photo Part No Description Price (each) Stock
11F1452CP EXHAUST VALVE-STD $63.02 To Order
Photo Part No Description Price (each) Stock
11F1979CP SEAL- VALVE STEM $12.58 To Order
Photo Part No Description Price (each) Stock
11F1975CP Color codes: COLLET $8.32 To Order
Photo Part No Description Price (each) Stock
11F1685CP BOLT - CYLINDER HEAD INC. WASHER $10.65 To Order
Photo Part No Description Price (each) Stock
11F1977CP RETAINER SPRING $12.58 To Order
Photo Part No Description Price (each) Stock
11F2684CP ROCKER MOUNTING $462.50 To Order
Photo Part No Description Price (each) Stock
11F1123RP CAMSHAFT-INLET LH $443.22 To Order
Photo Part No Description Price (each) Stock
11F1166RP CAMSHAFT-INLET RH $481.77 To Order
View All
32 - ENGINE - 32.1 - CYLINDER HEAD & VALVE TRAIN of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11FA026CP
VALVE SHIM - REPAIR KIT 		$2,678.69 -
000 11F2741CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.505 		- - Enquire
000 11F2740CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.49 		- - Enquire
000 11F2739CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.475 		- - Enquire
000 11F2738CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.46 		- - Enquire
000 11F2737CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.445 		- - Enquire
000 11F2736CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.43 		- - Enquire
000 11F2735CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.415 		- - Enquire
000 11F2734CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.4 		- - Enquire
000 11F2733CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.385 		- - Enquire
000 11F2732CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.37 		- - Enquire
000 11F2731CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.355 		- - Enquire
000 11F2730CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.34 		- - Enquire
000 11F2729CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.325 		- - Enquire
000 11F2728CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.31 		- - Enquire
000 11F2727CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.295 		- - Enquire
000 11F2726CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.28 		- - Enquire
000 11F2725CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.265 		- - Enquire
000 11F2724CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.25 		- - Enquire
000 11F2723CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.235 		- - Enquire
000 11F2722CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.22 		- - Enquire
000 11F2721CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.205 		- - Enquire
000 11F2720CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.19 		- - Enquire
000 11F2719CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.175 		- - Enquire
000 11F2718CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.16 		- - Enquire
000 11F2717CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.145 		- - Enquire
000 11F2716CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.13 		- - Enquire
000 11F2715CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.115 		- - Enquire
000 11F2714CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.1 		- - Enquire
000 11F2713CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.085 		- - Enquire
000 11F2712CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.07 		- - Enquire
000 11F2711CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.055 		- - Enquire
000 11F2710CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.04 		- - Enquire
000 11F2709CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.025 		- - Enquire
000 11F2708CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 3.01 		- - Enquire
000 11F2707CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.995 		- - Enquire
000 11F2706CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.98 		- - Enquire
000 11F2705CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.965 		- - Enquire
000 11F2704CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.95 		- - Enquire
000 11F2703CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.665 		- - Enquire
000 11F2702CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.65 		$135.76 -
000 11F2701CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.635 		$135.76 -
000 11F2700CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.62 		$135.76 -
000 11F2699CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.605 		- - Enquire
000 11F2698CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.59 		$135.76 -
000 11F2697CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.575 		- - Enquire
000 11F2696CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.56 		$135.76 -
000 11F2695CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.545 		$135.76 -
000 11F2694CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.53 		- - Enquire
000 11F2693CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.515 		- - Enquire
000 11F2692CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.5 		- - Enquire
000 11F2691CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.485 		- - Enquire
000 11F2690CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.47 		- - Enquire
000 11F2689CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.455 		- - Enquire
000 11F2688CP
SHIM VALVE LASH - CYLINDER HEAD - PACK OF 10 - 2.44 		- - Enquire
000 11F1510CP
SHIM - VALVE LASH - 2.935 		$183.06 -
000 11F1509CP
SHIM - VALVE LASH - 2.92 		$183.06 -
000 11F1508CP
SHIM - VALVE LASH - 2.905 		$183.06 -
000 11F1507CP
SHIM - VALVE LASH - 2.89 		$183.06 -
000 11F1506CP
SHIM - VALVE LASH - 2.875 		$183.06 -
000 11F1505CP
SHIM - VALVE LASH - 2.86 		$183.06 -
000 11F1504CP
SHIM - VALVE LASH - 2.845 		$183.06 -
000 11F1503CP
SHIM - VALVE LASH - 2.83 		$183.06 -
000 11F1502CP
SHIM - VALVE LASH - 2.815 		$183.06 -
000 11F1501CP
SHIM - VALVE LASH - 2.8 		$183.06 -
000 11F1500CP
SHIM - VALVE LASH - 2.785 		$183.06 -
000 11F1499CP
SHIM - VALVE LASH - 2.77 		$183.06 -
000 11F1498CP
SHIM - VALVE LASH - 2.755 		$183.06 -
000 11F1497CP
SHIM - VALVE LASH - 2.74 		$183.06 -
000 11F1496CP
SHIM - VALVE LASH - 2.725 		$183.06 -
000 11F1495CP
SHIM - VALVE LASH - 2.71 		$183.06 -
000 11F1494CP
SHIM - VALVE LASH - 2.695 		$183.06 -
000 11F1493CP
SHIM - VALVE LASH - 2.68 		$183.06 -
010 11F1776CP
BOLT - M6X30 - HEX 		$9.69 -
011 13F0341CP
VCT - EXHAUST - LH 		$620.68 -
012 13F0343CP
VCT - INTAKE - RH 		$620.68 -
013 13F0345CP
VCT - INTAKE - LH 		$523.69 -
014 13F0347CP
VCT - EXHAUST - RH 		$523.69 -
015 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER 		$10.65 -
016 13F0812CP
CAP - HEAD BOLT 		$7.75 -
017 11F0803CP
Bolt - M5x16 - Engine - Solenoid - Engine Cam Phaser 		$6.78 -
018 11F2459CP
Solenoid - Engine Cam Phaser 		$192.69 -
019 11F2636RP
Cylinder Head - Engine - Assy - RH - 675LT - Sports Series 		$10,333.30 -
020 14FA263CP
ASSY CAM COVER RH 		$290.93 -
021 11F1060CP
Mount - Anti-Vibration - Ignition Coil - Engine 		- - Enquire
022 11F1777CP
BOLT - M6X40 - HEX 		$4.43 -
023 13FA042CP
GASKET-CYLINDER HEAD-LH 		$310.33 -
023 13FA049CP
Head Gasket Kit - Inc. Bolts - Engine - RH 		$368.50 -
024 13FA043CP
GASKET-CYLINDER HEAD- RH 		$310.33 -
024 13FA048CP
Head Gasket Kit - Inc. Bolts - Engine - LH 		$368.50 -
025 14FA262CP
ASSY CAM COVER LH 		$290.93 -
026 11F2635RP
Cylinder Head - Engine - Assy - LH - 675LT - Sports Series 		$10,333.30 -
027 11F1792CP
BOLT - M6X16 - ENGINE 		$12.58 -
028 11F0740CP
ENGINE CAM PHASE SENSOR 		$231.24 -
029 11F2595CP
Bolt - VCT
Bolt - VCT; 		- - Enquire
030 11F1459CP
INTAKE VALVE-STD 		$29.07 -
031 11F1452CP
EXHAUST VALVE-STD 		$63.02 -
032 11F1979CP
SEAL- VALVE STEM 		$12.58 -
033 11F1975CP
Color codes: COLLET
Color codes: COLLET; 		$8.32 -
034 11F1685CP
BOLT - CYLINDER HEAD INC. WASHER 		$10.65 -
035 11F1977CP
RETAINER SPRING 		$12.58 -
036 11F2684CP
ROCKER MOUNTING 		$462.50 -
037 11F1123RP
CAMSHAFT-INLET LH 		$443.22 -
038 11F1166RP
CAMSHAFT-INLET RH 		$481.77 -
040 13F0649CP
CYLINDER HEAD - ENGINE - BARE - RH 		- - Enquire
041 13F0648CP
CYLINDER HEAD - ENGINE - BARE - LH 		- - Enquire

Haven't found what you're looking for?

More: McLaren Engines Tuning Parts Need help? Call us

View Cart / Checkout
