39 - DRIVESHAFTS - 39.1 - DRIVESHAFTS parts for McLaren 620R

Find Your Part

39 - DRIVESHAFTS - 39.1 - DRIVESHAFTS of McLaren McLaren 620R

View All

McLaren 620R - 39 - DRIVESHAFTS - 39.1 - DRIVESHAFTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11B0566CP	NUT - M26 - 12POINT - HEX	$11.56	To Order

Photo	Part No	Description	Price (each)	Stock
	11G0296CP	DRIVESHAFT - COMPLETE	$1,042.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11G0163CP	OUTPUT SHAFT SEAL-LH	$72.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11G0164CP	Seal - Driveshaft Output - RH	$72.40	To Order

View All

39 - DRIVESHAFTS - 39.1 - DRIVESHAFTS of McLaren McLaren 620R

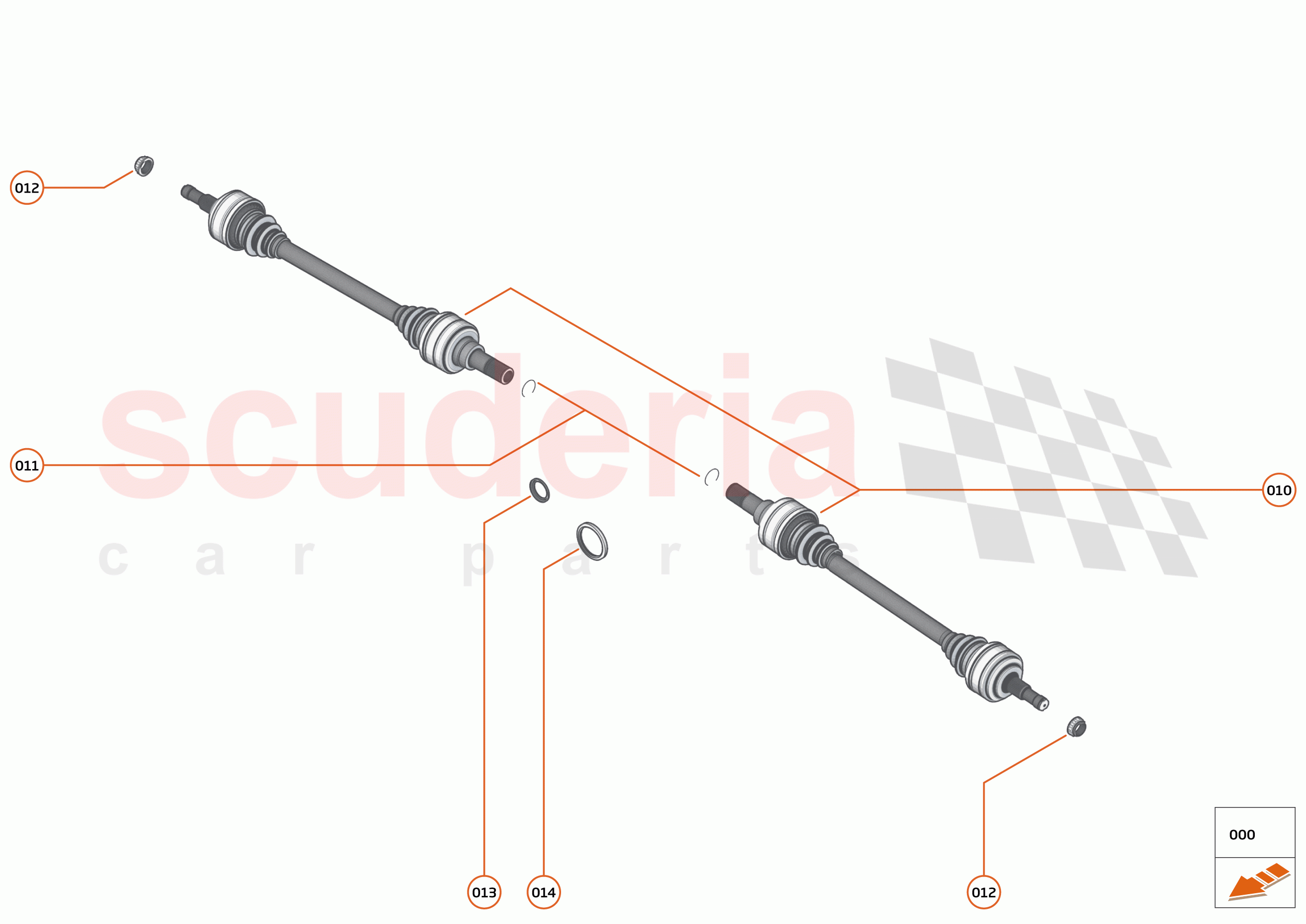

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	11B0566CP	NUT - M26 - 12POINT - HEX	11B0566CP NUT - M26 - 12POINT - HEX	$11.56	1
	012	11G0296CP	DRIVESHAFT - COMPLETE	11G0296CP DRIVESHAFT - COMPLETE	$1,042.70	1
	013	11G0163CP	OUTPUT SHAFT SEAL-LH	11G0163CP OUTPUT SHAFT SEAL-LH	$72.40	-
	014	11G0164CP	Seal - Driveshaft Output - RH	11G0164CP Seal - Driveshaft Output - RH	$72.40	-
