34 - Engine Oil System - 34.1 - Engine Oil Tank

McLaren 620R

Find Your Part

McLaren 620R - 34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $361.62 To Order
Photo Part No Description Price (each) Stock
11M1179CP Link Harness - Sensor - Oil $161.76 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $33.52 To Order
Photo Part No Description Price (each) Stock
11F0146CP BRKT MOUNT-OIL TAN24 $80.87 To Order
Photo Part No Description Price (each) Stock
11F0429CP BRKT-SWIRL POT MOUNT $80.87 To Order
Photo Part No Description Price (each) Stock
11F0430CP Spacer - Oil Tank $28.71 To Order
Photo Part No Description Price (each) Stock
11F1119CP Oil Tank - Engine Enquire To Order
View All

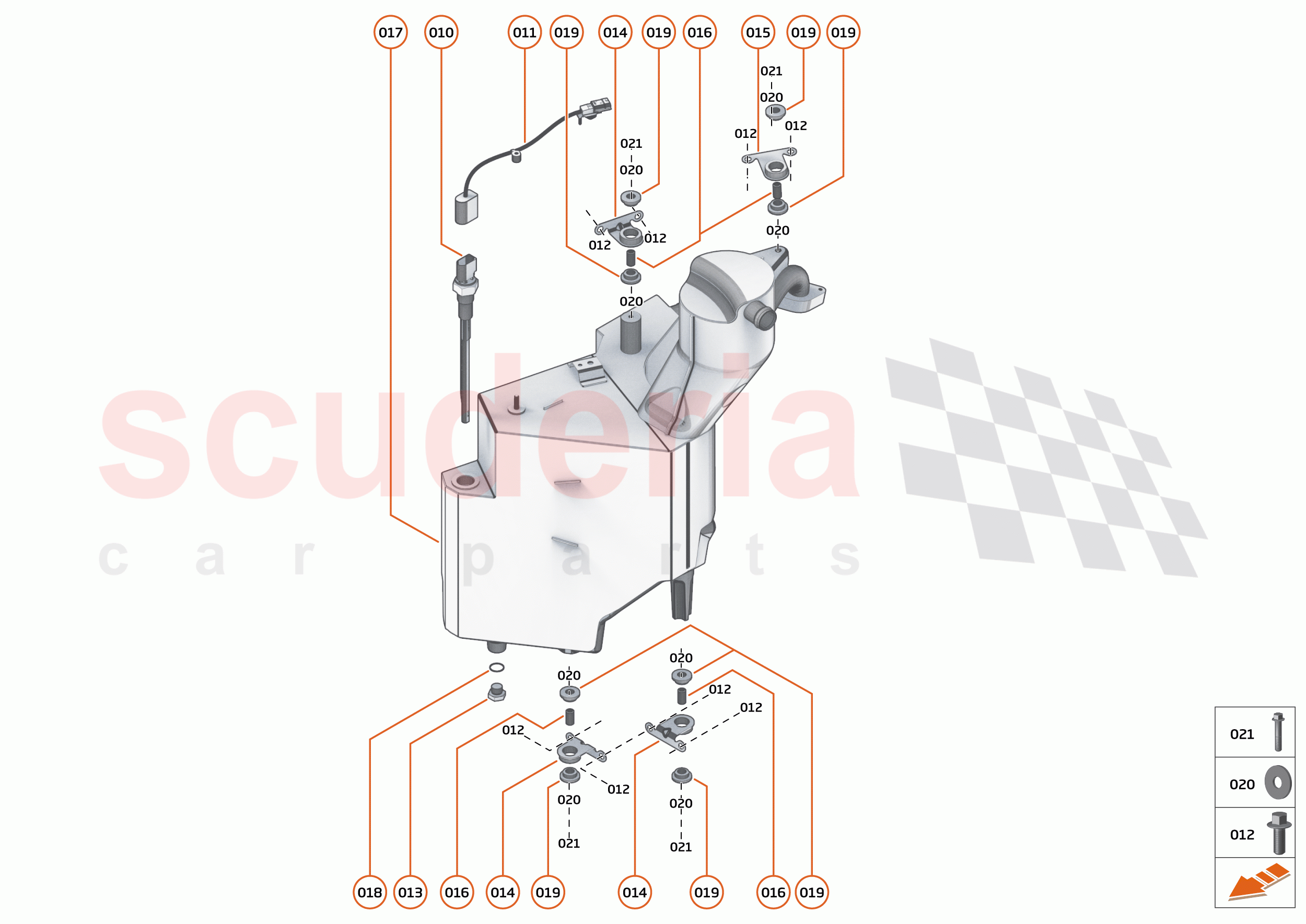

34 - ENGINE OIL SYSTEM - 34.1 - ENGINE OIL TANK of McLaren McLaren 620R Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$361.62 1
011 11M1179CP
Link Harness - Sensor - Oil 		$161.76 1
012 00RA313
SCREW - M6X16 - HEX - SILVER 		- 8 Enquire
013 11F0021CP
Drain Plug - Oil Tank - M14 		$33.52 1
014 11F0146CP
BRKT MOUNT-OIL TAN24 		$80.87 3
015 11F0429CP
BRKT-SWIRL POT MOUNT 		$80.87 1
016 11F0430CP
Spacer - Oil Tank 		$28.71 4
017 11F1119CP
Oil Tank - Engine 		- 1 Enquire
