31 - HEAT INSULATION - 31.2 - HEATSHIELDS - VEHICLE MOUNTED parts for McLaren 620R

Find Your Part

31 - HEAT INSULATION - 31.2 - HEATSHIELDS - VEHICLE MOUNTED of McLaren McLaren 620R

View All

McLaren 620R - 31 - HEAT INSULATION - 31.2 - HEATSHIELDS - VEHICLE MOUNTED

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13EA001CP	HEATSHIELD - HATCH - BULKHEAD	$38.52	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA146	SCRIVET - DIA 8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13E0142CP	HEATSHIELD - BULKHEAD	$163.78	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG003	FIRTREE 7.2X15X24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13E0143CP	HEATSHIELD - OIL TANK	$211.97	To Order

View All

31 - HEAT INSULATION - 31.2 - HEATSHIELDS - VEHICLE MOUNTED of McLaren McLaren 620R

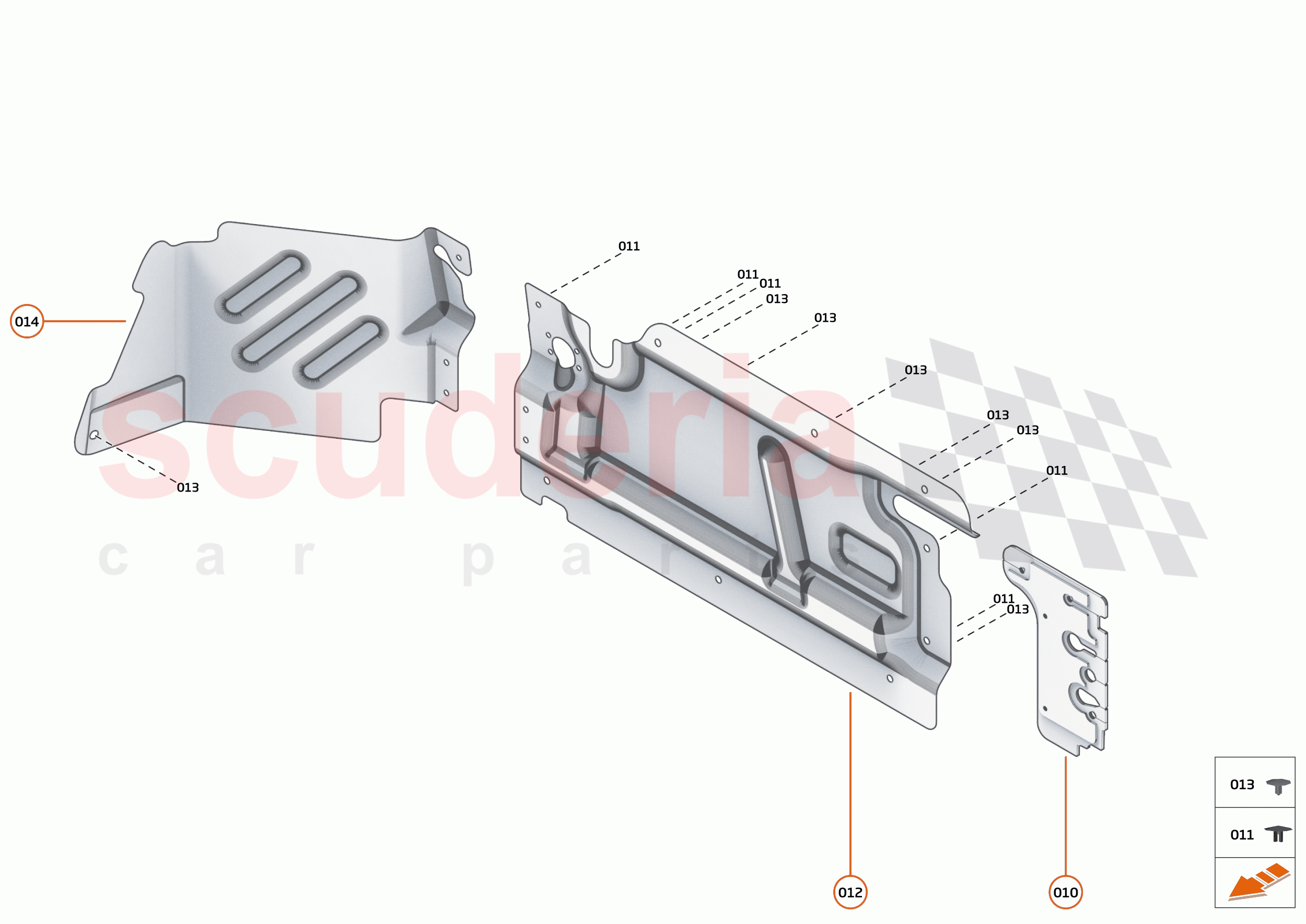

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	010	13EA001CP	HEATSHIELD - HATCH - BULKHEAD	13EA001CP HEATSHIELD - HATCH - BULKHEAD	$38.52	1
	011	00RA146	SCRIVET - DIA 8 X 14	00RA146 SCRIVET - DIA 8 X 14	-	5		Enquire
	012	13E0142CP	HEATSHIELD - BULKHEAD	13E0142CP HEATSHIELD - BULKHEAD	$163.78	1
	013	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24	-	7		Enquire
	014	13E0143CP	HEATSHIELD - OIL TANK	13E0143CP HEATSHIELD - OIL TANK	$211.97	1
