Fuel Vapour Recirculation System

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 01441

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - FUEL VAPOUR RECIRCULATION SYSTEM (01441)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670033287 FUEL VAPOUR FILTER $188.42 To Order
Photo Part No Description Price (each) Stock
675000114 NUT $1.31 To Order
675000095 NUT M6 $0.81 IN STOCK
Photo Part No Description Price (each) Stock
670033294 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR $33.06 To Order
Photo Part No Description Price (each) Stock
670033289 CLIP $3.18 To Order
Photo Part No Description Price (each) Stock
675000790 CLIP $1.31 To Order
Photo Part No Description Price (each) Stock
670100038 BRACKET $3.26 To Order
Photo Part No Description Price (each) Stock
670031947 CLIP $10.41 To Order
Photo Part No Description Price (each) Stock
675000132 CLIP $1.20 To Order
Photo Part No Description Price (each) Stock
675000191 SCREWM6X14 $2.06 To Order
Photo Part No Description Price (each) Stock
670033572 VAPOUR PIPE $36.16 To Order
Photo Part No Description Price (each) Stock
670034699 REAR BRACKET $18.83 To Order
670217138 REAR BRACKET $15.83 To Order
Photo Part No Description Price (each) Stock
670033274 VENT PIPE $94.13 To Order
Photo Part No Description Price (each) Stock
670105047 PIPE BETWEEN UNION AND INTAKE MANIFOLD $41.47 To Order
Photo Part No Description Price (each) Stock
675000576 RIVET $1.23 To Order
Photo Part No Description Price (each) Stock
670104126 BRACKET ASSEMBLY $7.41 To Order
Photo Part No Description Price (each) Stock
675000242 SCREWM6X25 $3.48 To Order
Photo Part No Description Price (each) Stock
670162028 SOLENOID VALVE $42.36 IN STOCK
Photo Part No Description Price (each) Stock
670033129 PIPE FROM SOLENOID VALVE TO ENGINE $32.96 To Order
Photo Part No Description Price (each) Stock
670033130 PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE $52.34 To Order
Photo Part No Description Price (each) Stock
670105048 VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE $32.76 To Order
Photo Part No Description Price (each) Stock
670033127 BRACKET $12.18 To Order
View All

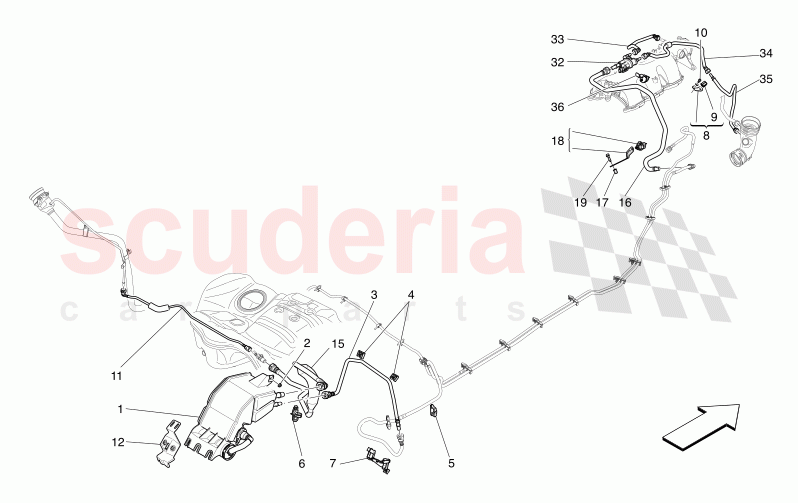

FUEL VAPOUR RECIRCULATION SYSTEM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670033287
FUEL VAPOUR FILTER
Not available with: CHINA 6B EMISSION; EU AU CN UK JP ME JRH IN SA; 		$188.42 1
2 675000114
NUT
Bespoke Assembly Number 0 - 6097168; 		$1.31 1
2 675000095
NUT M6
Bespoke Assembly Number 6097169 - 99999999;
IN STOCK 		$0.81 5
3 670033294
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR 		$33.06 1
4 670033289
CLIP 		$3.18 2
5 675000790
CLIP
Bespoke Assembly Number 6053787 - 99999999; 		$1.31 1
6 670100038
BRACKET 		$3.26 1
7 670031947
CLIP 		$10.41 1
9 675000132
CLIP 		$1.20 1
10 675000191
SCREWM6X14 		$2.06 1
11 670033572
VAPOUR PIPE 		$36.16 1
12 670034699
REAR BRACKET
Bespoke Assembly Number 0 - 6097168; 		$18.83 1
12 670217138
REAR BRACKET
Bespoke Assembly Number 6097169 - 99999999; 		$15.83 1
15 670033274
VENT PIPE 		$94.13 1
16 670105047
PIPE BETWEEN UNION AND INTAKE MANIFOLD
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$41.47 1
17 675000576
RIVET 		$1.23 2
18 670104126
BRACKET ASSEMBLY
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$7.41 1
19 675000242
SCREWM6X25 		$3.48 2
32 670162028
SOLENOID VALVE
IN STOCK 		$42.36 1
33 670033129
PIPE FROM SOLENOID VALVE TO ENGINE 		$32.96 1
34 670033130
PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE 		$52.34 1
35 670105048
VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE
Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$32.76 1
36 670033127
BRACKET 		$12.18 1
