Fuel Pumps And Connection Lines

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 01434

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - FUEL PUMPS AND CONNECTION LINES (01434)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
815679 RH FUEL PIPE WITH INJECTORS $700.46 To Order
Photo Part No Description Price (each) Stock
815680 LH FUEL PIPE WITH INJECTORS $764.89 To Order
Photo Part No Description Price (each) Stock
285494 SCREWM8X50 $4.94 IN STOCK
Photo Part No Description Price (each) Stock
329202 HIGH PRESSURE FUEL PUMP $879.16 To Order
Photo Part No Description Price (each) Stock
14305434 SCREWM6X25 $1.38 To Order
Photo Part No Description Price (each) Stock
12639724 WASHERD.6.15-11X1 $1.38 To Order
Photo Part No Description Price (each) Stock
309114 CPL. ACOUSTIC COVER $211.70 To Order
Photo Part No Description Price (each) Stock
270601 HIG PRESSURE PUMP BUCKET $52.83 To Order
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.73 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.60 IN STOCK
Photo Part No Description Price (each) Stock
296209 RH CABLE $263.59 To Order
Photo Part No Description Price (each) Stock
311644 LH CABLE $81.64 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.60 IN STOCK
Photo Part No Description Price (each) Stock
310550 HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR $110.98 To Order
Photo Part No Description Price (each) Stock
298649 DISTRIBUTOR $157.53 To Order
298649 DISTRIBUTOR $157.53 To Order
Photo Part No Description Price (each) Stock
282572 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $104.03 To Order
Photo Part No Description Price (each) Stock
282571 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE $88.18 To Order
Photo Part No Description Price (each) Stock
302810 SOUNDPROOFING ELEMENT $58.07 To Order
Photo Part No Description Price (each) Stock
303438 CLIP $11.10 To Order
Photo Part No Description Price (each) Stock
303438 CLIP $11.10 To Order
Photo Part No Description Price (each) Stock
670030185 PLATE $29.44 To Order
Photo Part No Description Price (each) Stock
675000173 SCREWM6X16 $2.10 To Order
Photo Part No Description Price (each) Stock
333908 DAMPER GDI PUMP $14.82 IN STOCK
Photo Part No Description Price (each) Stock
341083 INJECTOR ASSEMBLY $172.21 To Order
Photo Part No Description Price (each) Stock
673015589 INJECTOR SEAL KIT $56.62 To Order
View All

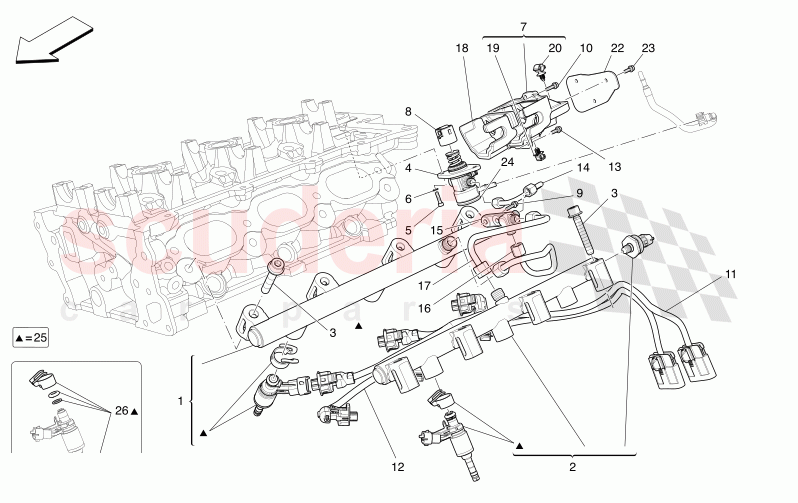

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 815679
RH FUEL PIPE WITH INJECTORS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$700.46 1
2 815680
LH FUEL PIPE WITH INJECTORS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; Bespoke Assembly Number 6072512 - 99999999; Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$764.89 1
3 285494
SCREWM8X50
IN STOCK 		$4.94 8
4 329202
HIGH PRESSURE FUEL PUMP
PLEASE, ORDER ALSO PN 333908; 		$879.16 1
5 14305434
SCREWM6X25 		$1.38 2
6 12639724
WASHERD.6.15-11X1 		$1.38 2
7 309114
CPL. ACOUSTIC COVER 		$211.70 1
8 270601
HIG PRESSURE PUMP BUCKET
Diameter 26; 		$52.83 1
9 231620
SCREW M6 X 25
IN STOCK 		$1.73 2
10 231619
SCREW M6 X 22MM
IN STOCK 		$2.60 2
11 296209
RH CABLE 		$263.59 1
12 311644
LH CABLE 		$81.64 1
13 231617
SCREW M6 X 18
IN STOCK 		$2.60 2
14 310550
HIGH-PRESSURE FUEL PIPE BETWEEN PUMP AND DISTRIBUTOR
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; 		$110.98 1
15 298649
DISTRIBUTOR
Bespoke Engine Number 0 - 208324; 		$157.53 1
15 298649
DISTRIBUTOR 		$157.53 1
16 282572
RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; 		$104.03 1
17 282571
LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION; 		$88.18 1
18 302810
SOUNDPROOFING ELEMENT 		$58.07 1
19 303438
CLIP 		$11.10 1
20 303438
CLIP 		$11.10 1
22 670030185
PLATE 		$29.44 1
23 675000173
SCREWM6X16 		$2.10 3
24 333908
DAMPER GDI PUMP
PLEASE, ORDER ONLY IF YOU NEED REPLACE GDI HIGH PRESSURE FUEL PUMP;
IN STOCK 		$14.82 1
25 341083
INJECTOR ASSEMBLY
Available with: EU6D Final Not available with: EU6D Final specific Korea / USA, EURO 6.4, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$172.21 6
26 673015589
INJECTOR SEAL KIT 		$56.62 6
