Crank Mechanism

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 01102

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - CRANK MECHANISM (01102)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
868821 CRANKSHAFT $2,626.89 IN STOCK
Photo Part No Description Price (each) Stock
275617 UPPER HALF-BEARING $24.96 IN STOCK
275618 UPPER HALF-BEARING $24.96 IN STOCK
280323 UPPER HALF-BEARING $24.96 IN STOCK
Photo Part No Description Price (each) Stock
275620 LOWER HALF-BEARING $24.96 IN STOCK
275621 LOWER HALF-BEARING $24.96 IN STOCK
280321 LOWER HALF-BEARING $24.96 IN STOCK
Photo Part No Description Price (each) Stock
304033 CRANKSHAFT SHIM WASHER $20.35 To Order
Photo Part No Description Price (each) Stock
279503 TAB $12.44 To Order
Photo Part No Description Price (each) Stock
280609 TORSION DAMPER $297.90 IN STOCK
Photo Part No Description Price (each) Stock
305711 WASHER $24.35 IN STOCK
282723 WASHER $24.34 To Order
Photo Part No Description Price (each) Stock
305704 SCREW FOR DAMPER FIXING $98.70 IN STOCK
305704 SCREW FOR DAMPER FIXING $98.70 IN STOCK
Photo Part No Description Price (each) Stock
287177 OIL SCRAPER RING $61.87 IN STOCK
Photo Part No Description Price (each) Stock
275339 GASKET, CRANK SHAFT $32.25 IN STOCK
Photo Part No Description Price (each) Stock
318342 LH SIDE ENGINE PISTON WITH RINGS $404.68 IN STOCK
318342 LH SIDE ENGINE PISTON WITH RINGS $404.68 IN STOCK
Photo Part No Description Price (each) Stock
326368 CONNECTING ROD SHAFT AND CAP ASSEMBLY $203.54 IN STOCK
326368 CONNECTING ROD SHAFT AND CAP ASSEMBLY $203.54 IN STOCK
Photo Part No Description Price (each) Stock
318341 RH SIDE ENGINE PISTON WITH RINGS $394.03 To Order
318341 RH SIDE ENGINE PISTON WITH RINGS $394.03 To Order
Photo Part No Description Price (each) Stock
286954 SEAL RING $83.92 IN STOCK
Photo Part No Description Price (each) Stock
296139 SEAL RING $30.79 IN STOCK
299797 SEAL RING $22.18 To Order
Photo Part No Description Price (each) Stock
282814 SPACER $230.53 To Order
Photo Part No Description Price (each) Stock
270275 LOCK RING $11.51 To Order
Photo Part No Description Price (each) Stock
270274 PIN $35.10 To Order
Photo Part No Description Price (each) Stock
280576 CONNECTING ROD TIGHTENING SCREW $66.31 To Order
Photo Part No Description Price (each) Stock
280327 CONNECTING ROD HALF-BEARING $16.64 IN STOCK
280326 CONNECTING ROD HALF-BEARING $16.64 IN STOCK
280325 CONNECTING ROD HALF-BEARING $16.64 IN STOCK
Photo Part No Description Price (each) Stock
283507 CENTRING PIN FOR CONNECTING RODS $1.43 To Order
292751 CENTRING PIN FOR CONNECTING RODS $34.60 To Order
Photo Part No Description Price (each) Stock
303031 PISTONS COOLING NOZZLE $62.23 To Order
Photo Part No Description Price (each) Stock
294780 SCREWM5X16 $2.51 To Order
Photo Part No Description Price (each) Stock
310101 DIAMOND WASHER $68.03 To Order
Photo Part No Description Price (each) Stock
310102 DIAMOND WASHER $65.79 IN STOCK
Photo Part No Description Price (each) Stock
281836 SCREWM6X18 $23.19 To Order
View All
CRANK MECHANISM of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 868821
CRANKSHAFT
IN STOCK 		$2,626.89 1
2 275617
UPPER HALF-BEARING
Blue;
IN STOCK 		$24.96 4
2 275618
UPPER HALF-BEARING
Yellow;
IN STOCK 		$24.96 4

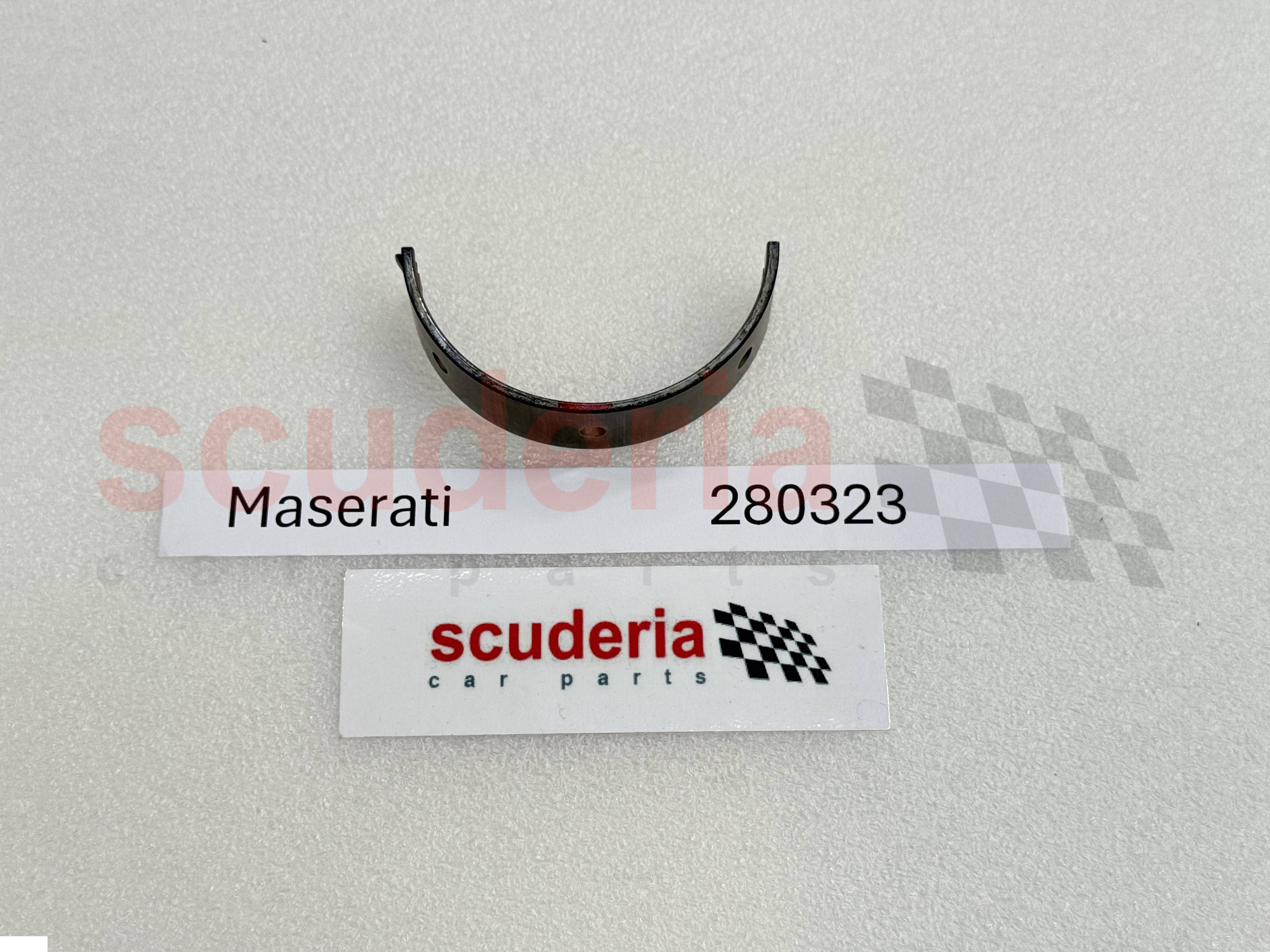

2 280323
UPPER HALF-BEARING
Red;
IN STOCK 		$24.96 4
3 275620
LOWER HALF-BEARING
Blue;
IN STOCK 		$24.96 4
3 275621
LOWER HALF-BEARING
Yellow;
IN STOCK 		$24.96 4
3 280321
LOWER HALF-BEARING
Red;
IN STOCK 		$24.96 4

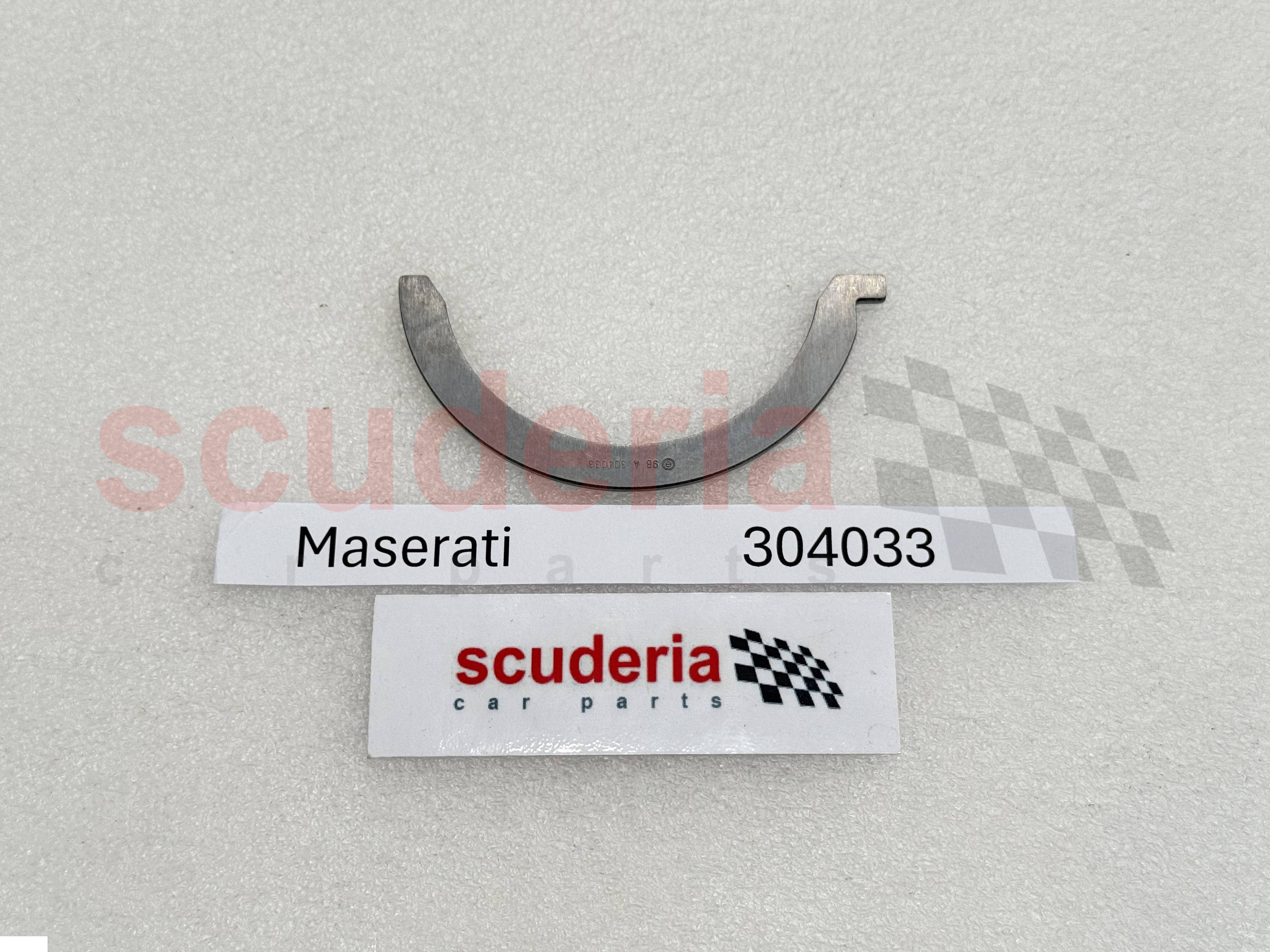

4 304033
CRANKSHAFT SHIM WASHER 		$20.35 2
5 279503
TAB 		$12.44 1
6 280609
TORSION DAMPER
IN STOCK 		$297.90 1
7 305711
WASHER
Bespoke Engine Number 279678 - ZZZZZZZZ;
IN STOCK 		$24.35 1
7 282723
WASHER
If not available, please order new parts 305704 and 305711; Bespoke Engine Number 0 - 279677; 		$24.34 1
8 305704
SCREW FOR DAMPER FIXING
IN STOCK 		$98.70 1
8 305704
SCREW FOR DAMPER FIXING
If not available, please order new parts 305704 and 305711; Bespoke Engine Number 0 - 279677;
IN STOCK 		$98.70 1
9 287177
OIL SCRAPER RING
IN STOCK 		$61.87 6
10 275339
GASKET, CRANK SHAFT
IN STOCK 		$32.25 1
11 318342
LH SIDE ENGINE PISTON WITH RINGS
IN STOCK 		$404.68 3
11 318342
LH SIDE ENGINE PISTON WITH RINGS
IN STOCK 		$404.68 3

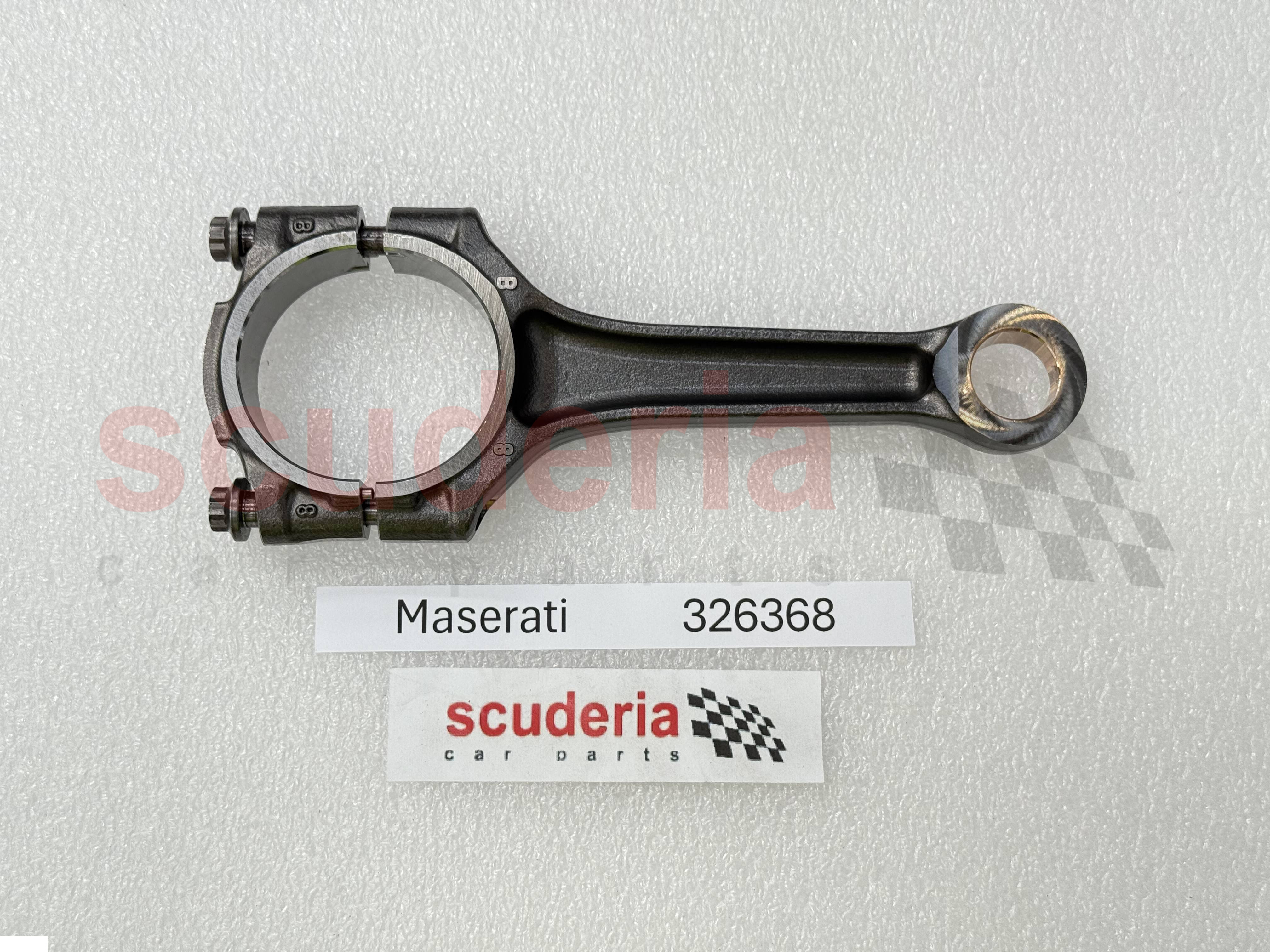

12 326368
CONNECTING ROD SHAFT AND CAP ASSEMBLY
Bespoke Engine Number 0 - 290346;
IN STOCK 		$203.54 6
12 326368
CONNECTING ROD SHAFT AND CAP ASSEMBLY
IN STOCK 		$203.54 6
13 318341
RH SIDE ENGINE PISTON WITH RINGS 		$394.03 3
13 318341
RH SIDE ENGINE PISTON WITH RINGS 		$394.03 3
14 286954
SEAL RING
1st groove;
IN STOCK 		$83.92 6
15 296139
SEAL RING
2nd groove; Bespoke Engine Number 0 - 316067;
IN STOCK 		$30.79 6
15 299797
SEAL RING
2nd groove; Bespoke Engine Number 316068 - ZZZZZZZZ; 		$22.18 6
16 282814
SPACER 		$230.53 1
17 270275
LOCK RING 		$11.51 12
18 270274
PIN 		$35.10 6
20 280576
CONNECTING ROD TIGHTENING SCREW 		$66.31 12

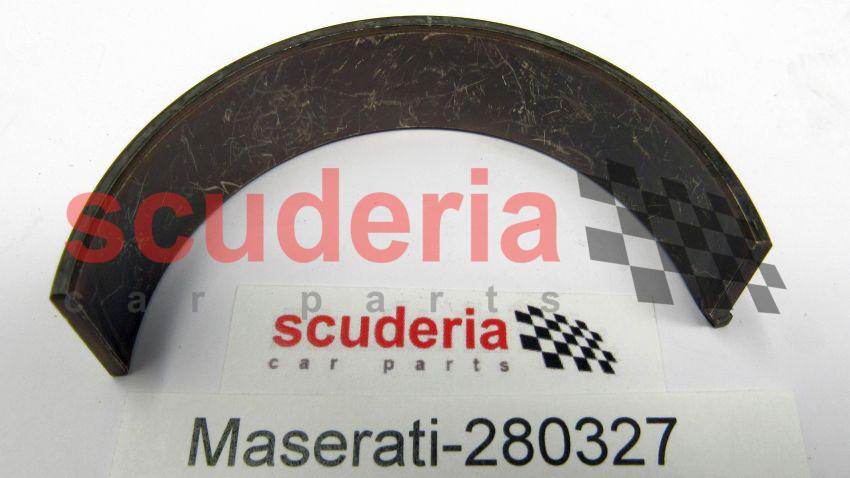

21 280327
CONNECTING ROD HALF-BEARING
Blue;
IN STOCK 		$16.64 12
21 280326
CONNECTING ROD HALF-BEARING
Red;
IN STOCK 		$16.64 12
21 280325
CONNECTING ROD HALF-BEARING
Pink;
IN STOCK 		$16.64 12
22 283507
CENTRING PIN FOR CONNECTING RODS
Bespoke Engine Number 0 - 290346; 		$1.43 12
22 292751
CENTRING PIN FOR CONNECTING RODS
Bespoke Engine Number 290347 - ZZZZZZZZ; 		$34.60 12
23 303031
PISTONS COOLING NOZZLE 		$62.23 3
24 294780
SCREWM5X16 		$2.51 3

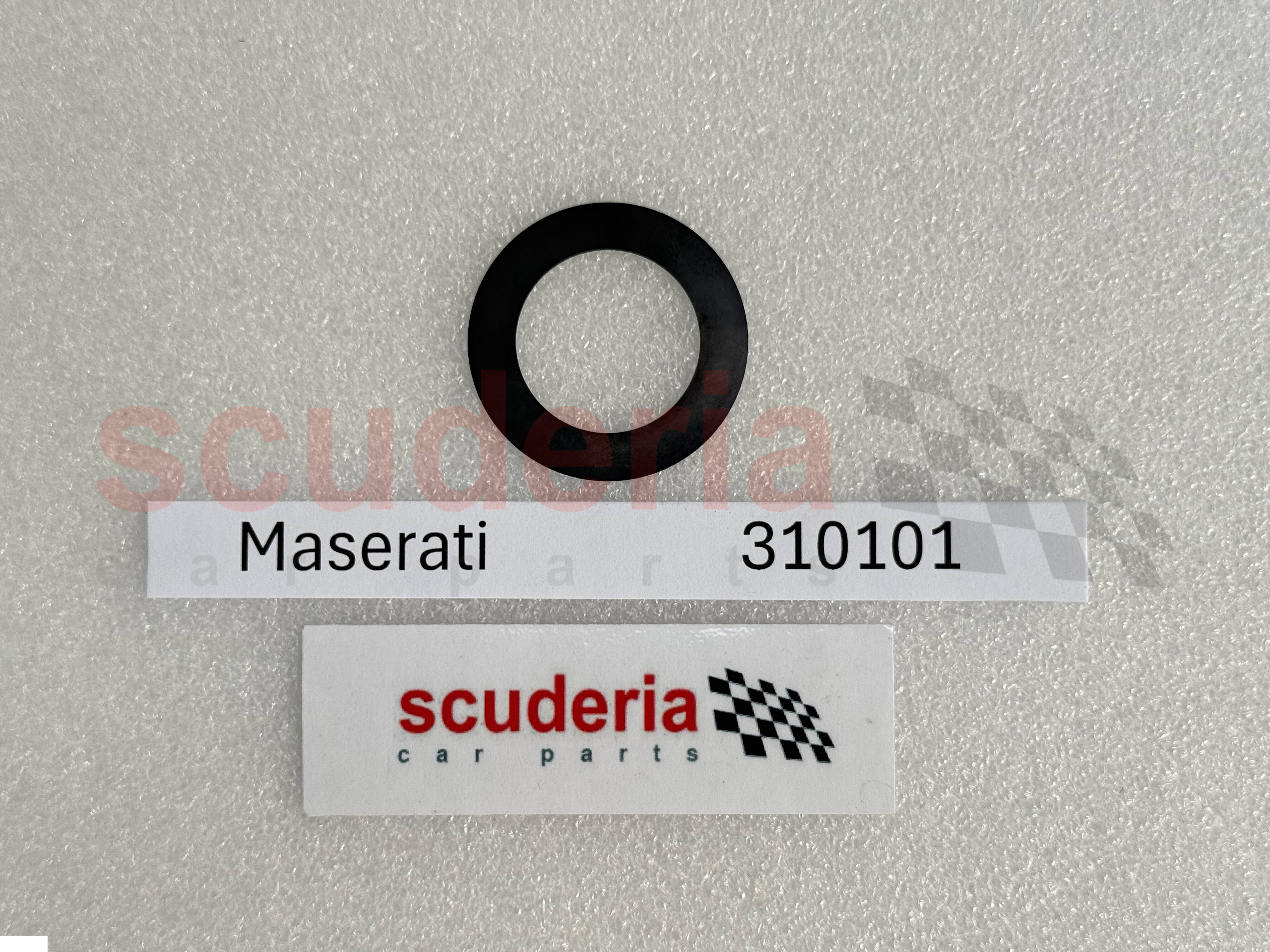

25 310101
DIAMOND WASHER 		$68.03 1

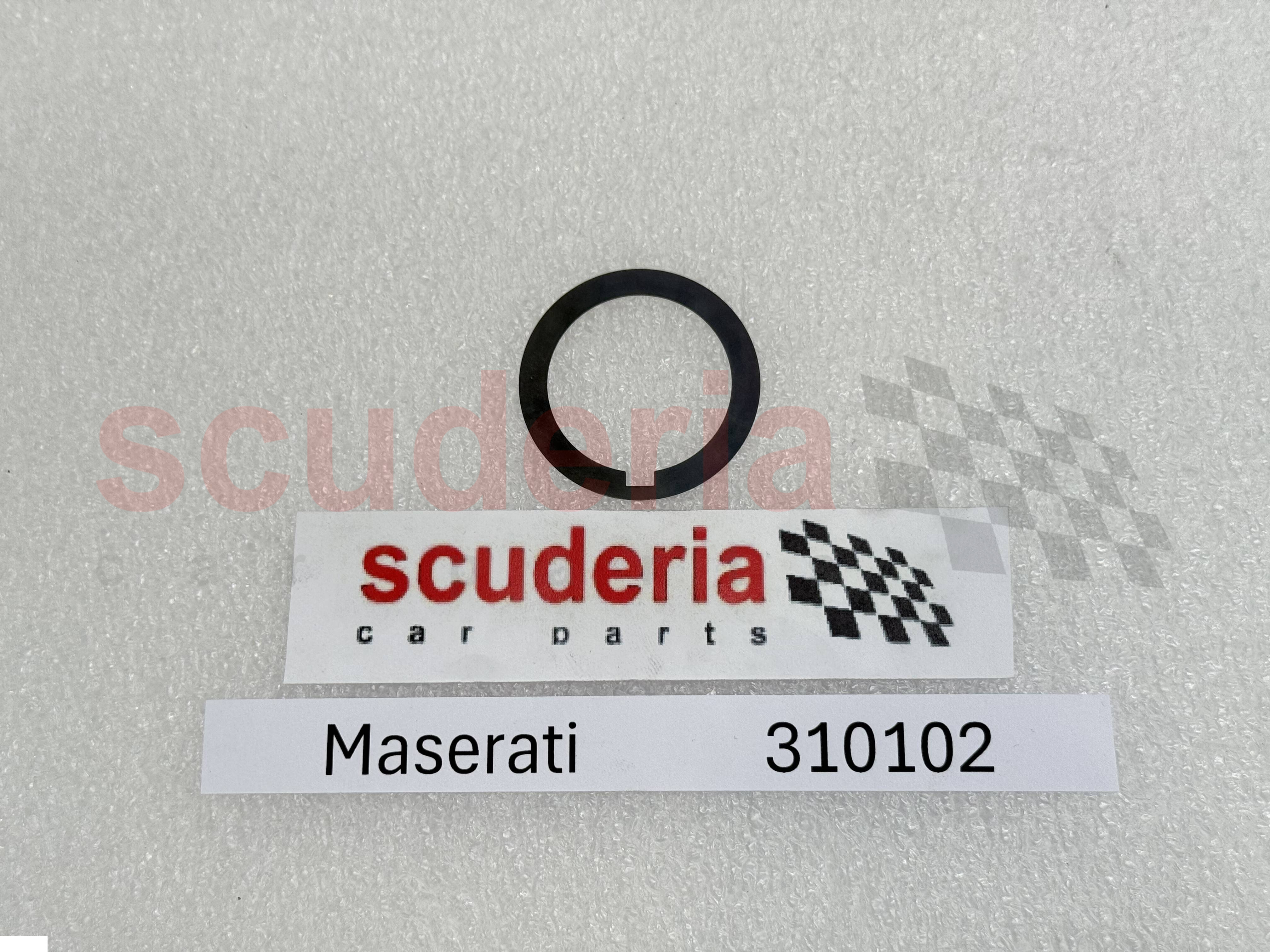

26 310102
DIAMOND WASHER
IN STOCK 		$65.79 1
28 281836
SCREWM6X18 		$23.19 4
