Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - TIMING (01242)

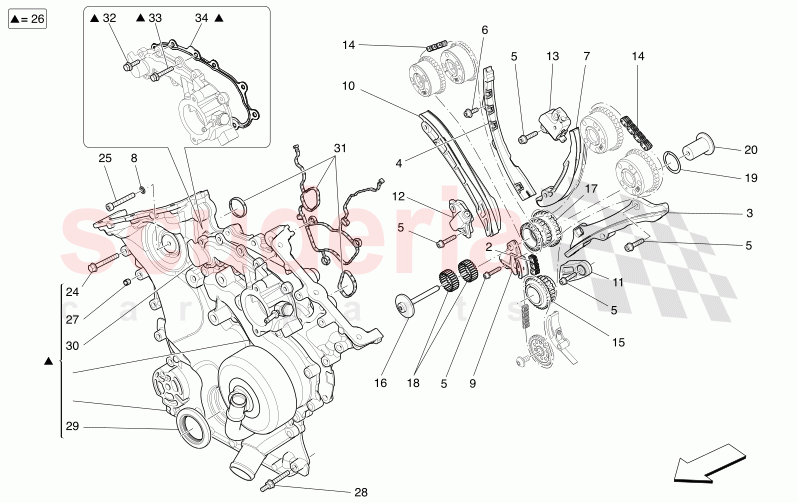

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
299481 TRANSMISSION CHAIN $101.01 IN STOCK
Photo Part No Description Price (each) Stock
323476 LH FIXED TENSION $32.87 To Order
323476 LH FIXED TENSION $32.87 To Order
Photo Part No Description Price (each) Stock
323474 RH FIXED TENSION $42.63 IN STOCK
323474 RH FIXED TENSION $42.63 IN STOCK
Photo Part No Description Price (each) Stock
299779 SCREW M6 X 30 $4.16 IN STOCK
Photo Part No Description Price (each) Stock
299883 SCREW M6 X 16 $3.11 To Order
Photo Part No Description Price (each) Stock
323475 LH MOBILE SLIDING BLOCK (V6) $26.13 IN STOCK
323475 LH MOBILE SLIDING BLOCK (V6) $26.13 IN STOCK
Photo Part No Description Price (each) Stock
216292 GASKET $5.47 ARRIVING SOON
Photo Part No Description Price (each) Stock
339329 HYDRAULIC TIGHTENER $133.46 IN STOCK
Photo Part No Description Price (each) Stock
323473 RH MOBILE GUIDE SHOE $32.87 IN STOCK
323473 RH MOBILE GUIDE SHOE $32.87 IN STOCK
Photo Part No Description Price (each) Stock
276581 FIXED SLIDING BLOCK $12.90 To Order
Photo Part No Description Price (each) Stock
339327 RH HYDRAULIC TENSIONER $125.63 IN STOCK
Photo Part No Description Price (each) Stock
339038 LH HYDRAULIC TENSIONER $133.46 To Order
339038 LH HYDRAULIC TENSIONER $133.46 To Order
339038 LH HYDRAULIC TENSIONER $133.46 To Order
Photo Part No Description Price (each) Stock
276590 TIMING CHAIN $88.32 IN STOCK
Photo Part No Description Price (each) Stock
299671 ENGINE SHAFT TOOTHED WHEEL $233.66 To Order
Photo Part No Description Price (each) Stock
304376 SCREW M8 X 75 $18.51 To Order
Photo Part No Description Price (each) Stock
299501 TRANSMISSION TOOTHED WHEEL $261.96 To Order
Photo Part No Description Price (each) Stock
187742 ROLLER CAGE $15.66 To Order
Photo Part No Description Price (each) Stock
310102 DIAMOND WASHER $66.39 IN STOCK
Photo Part No Description Price (each) Stock
299140 SUPPORT $64.96 IN STOCK
Photo Part No Description Price (each) Stock
291771 SCREW M6 X 45 $20.91 IN STOCK
Photo Part No Description Price (each) Stock
14305821 SCREW M6 X 40 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
910507 FRONT COVER ASSEMBLY $1,481.34 IN STOCK
910507 FRONT COVER ASSEMBLY $1,481.34 IN STOCK
910507 FRONT COVER ASSEMBLY $1,481.34 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
300452 STUD $16.39 To Order
Photo Part No Description Price (each) Stock
275339 GASKET, CRANK SHAFT $32.54 IN STOCK
Photo Part No Description Price (each) Stock
326846 CPL. CROSSOVER $258.78 To Order
291773 CPL. CROSSOVER $554.25 To Order
291773 CPL. CROSSOVER $554.25 To Order
Photo Part No Description Price (each) Stock
673010776 GASKET KIT $64.37 ARRIVING SOON
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.74 IN STOCK
291776 SCREWM6X25 $4.04 To Order
Photo Part No Description Price (each) Stock
231624 SCREWM6X45 $2.91 To Order
291771 SCREW M6 X 45 $20.91 IN STOCK
Photo Part No Description Price (each) Stock
280912 GASKET $20.46 IN STOCK
View All
TIMING of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 299481
TRANSMISSION CHAIN
IN STOCK 		$101.01 1
3 323476
LH FIXED TENSION
Bespoke Engine Number 0 - 318012; 		$32.87 1
3 323476
LH FIXED TENSION 		$32.87 1
4 323474
RH FIXED TENSION
Bespoke Engine Number 0 - 318012;
IN STOCK 		$42.63 1
4 323474
RH FIXED TENSION
IN STOCK 		$42.63 1
5 299779
SCREW M6 X 30
IN STOCK 		$4.16 9
6 299883
SCREW M6 X 16 		$3.11 3
7 323475
LH MOBILE SLIDING BLOCK (V6)
Bespoke Engine Number 0 - 318012;
IN STOCK 		$26.13 1
7 323475
LH MOBILE SLIDING BLOCK (V6)
IN STOCK 		$26.13 1
8 216292
GASKET
ARRIVING SOON 		$5.47 1
9 339329
HYDRAULIC TIGHTENER
Bespoke Assembly Number 6035538 - 99999999;
IN STOCK 		$133.46 1
10 323473
RH MOBILE GUIDE SHOE
Bespoke Engine Number 0 - 318012;
IN STOCK 		$32.87 1
10 323473
RH MOBILE GUIDE SHOE
IN STOCK 		$32.87 1
11 276581
FIXED SLIDING BLOCK 		$12.90 1
12 339327
RH HYDRAULIC TENSIONER
Bespoke Assembly Number 6035538 - 99999999;
IN STOCK 		$125.63 1
13 339038
LH HYDRAULIC TENSIONER 		$133.46 1
13 339038
LH HYDRAULIC TENSIONER
Bespoke Engine Number 0 - 352061; 		$133.46 1
13 339038
LH HYDRAULIC TENSIONER 		$133.46 1
14 276590
TIMING CHAIN
IN STOCK 		$88.32 2
15 299671
ENGINE SHAFT TOOTHED WHEEL 		$233.66 1
16 304376
SCREW M8 X 75 		$18.51 1
17 299501
TRANSMISSION TOOTHED WHEEL 		$261.96 1
18 187742
ROLLER CAGE 		$15.66 2
19 310102
DIAMOND WASHER
IN STOCK 		$66.39 1
20 299140
SUPPORT
IN STOCK 		$64.96 1
24 291771
SCREW M6 X 45
Bespoke Assembly Number 6035538 - 99999999;
IN STOCK 		$20.91 19
25 14305821
SCREW M6 X 40
IN STOCK 		$1.82 1
26 910507
FRONT COVER ASSEMBLY
Bespoke Engine Number 0 - 441893;
IN STOCK 		$1,481.34 1
26 910507
FRONT COVER ASSEMBLY
CROSSOVER IN REF.30 NOT INCLUDED, PLEASE ORDER SEPARATELY WITH PN 326846. FOR ENGINE SERIAL NUMBER < 441894, PLEASE ORDER ALSO PN 670001322; Bespoke Engine Number 441894 - 455322;
IN STOCK 		$1,481.34 1
26 910507
FRONT COVER ASSEMBLY
CROSSOVER IN REF.30 NOT INCLUDED, PLEASE ORDER SEPARATELY WITH PN 326846. FOR ENGINE SERIAL NUMBER < 441894, PLEASE ORDER ALSO PN 670001322; Bespoke Engine Number 455323 - 473146;
IN STOCK 		$1,481.34 1
26 910507
FRONT COVER ASSEMBLY
CROSSOVER IN REF.30 INCLUDED. FOR ENGINE SERIAL NUMBER INCLUDED BETWEEN 441894 AND 473146 RANGE, PLEASE ORDER ALSO PN 670031951;
IN STOCK 		$1,481.34 1
28 300452
STUD
Bespoke Assembly Number 6035538 - 99999999; 		$16.39 2
29 275339
GASKET, CRANK SHAFT
IN STOCK 		$32.54 1
30 326846
CPL. CROSSOVER
PLASTIC - NOT INCLUDED WITH CPL TIMING COVERย  321255 AND 878658, PLEASE ORDER SEPARATELY; Bespoke Engine Number 441894 - 473146; 		$258.78 1
30 291773
CPL. CROSSOVER
ALUMINUM - INCLUDED WITH THE TIMING COVER; Bespoke Engine Number 0 - 441893; 		$554.25 1
30 291773
CPL. CROSSOVER
ALUMINUM - INCLUDED WITH THE TIMING COVER. IF IN REPLACEMENT OF THE PLASTIC CROSSOVER ALSO ORDER THE SCREWS 32-33 AND THE GASKET 34; Bespoke Engine Number 441894 - 473146; 		$554.25 1
31 673010776
GASKET KIT
ARRIVING SOON 		$64.37 1
32 231620
SCREW M6 X 25
INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER); Bespoke Engine Number 441894 - 473146;
IN STOCK 		$1.74 4
32 291776
SCREWM6X25
NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773; 		$4.04 4
33 231624
SCREWM6X45
INCLUDED AND VALID ONLY WITH PN 326846 (PLASTIC CROSSOVER); Bespoke Engine Number 441894 - 473146; 		$2.91 7
33 291771
SCREW M6 X 45
NOT INCLUDED AND VALID ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773;
IN STOCK 		$20.91 7
34 280912
GASKET
ONLY FOR THE CROSSOVER IN ALUMINUM P/N 291773 - NOT INCLUDED, ORDER SEPARATELY;
IN STOCK 		$20.46 1
