Fuel Vapour Recirculation System

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 01442

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - FUEL VAPOUR RECIRCULATION SYSTEM (01442)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001694 FUEL VAPOUR FILTER $155.97 IN STOCK
Photo Part No Description Price (each) Stock
675001063 NUT $1.28 To Order
Photo Part No Description Price (each) Stock
670160939 PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR $36.25 To Order
Photo Part No Description Price (each) Stock
675001782 CLIP $2.19 To Order
Photo Part No Description Price (each) Stock
670160941 HOSE $57.92 To Order
Photo Part No Description Price (each) Stock
675001672 VENT PIPE $34.92 To Order
Photo Part No Description Price (each) Stock
675001783 RUBBER $9.52 To Order
Photo Part No Description Price (each) Stock
675001784 GASKET $8.65 To Order
Photo Part No Description Price (each) Stock
670160948 TUBE FUEL VAPOR $59.35 To Order
Photo Part No Description Price (each) Stock
670162028 SOLENOID VALVE $42.19 IN STOCK
Photo Part No Description Price (each) Stock
675002006 RH HOSE FROM SLEEVE TO SOLENOID VALVE $51.40 To Order
Photo Part No Description Price (each) Stock
675001650 HOSE $230.11 To Order
Photo Part No Description Price (each) Stock
675001080 RUBBER $8.65 To Order
Photo Part No Description Price (each) Stock
670181757 CLIP $6.84 To Order
Photo Part No Description Price (each) Stock
675001575 FUEL HOSE BRACKET $4.51 To Order
Photo Part No Description Price (each) Stock
675002033 LH BRACKET $26.72 To Order
Photo Part No Description Price (each) Stock
675002000 RH BRACKET $33.08 To Order
Photo Part No Description Price (each) Stock
675001127 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
670156746 LH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER $41.63 To Order
Photo Part No Description Price (each) Stock
675002002 RH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER $74.35 To Order
Photo Part No Description Price (each) Stock
675002008 LH HOSE FROM SLEEVE TO SOLENOID VALVE $75.24 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.28 To Order
Photo Part No Description Price (each) Stock
675001802 CLIP $1.47 To Order
View All

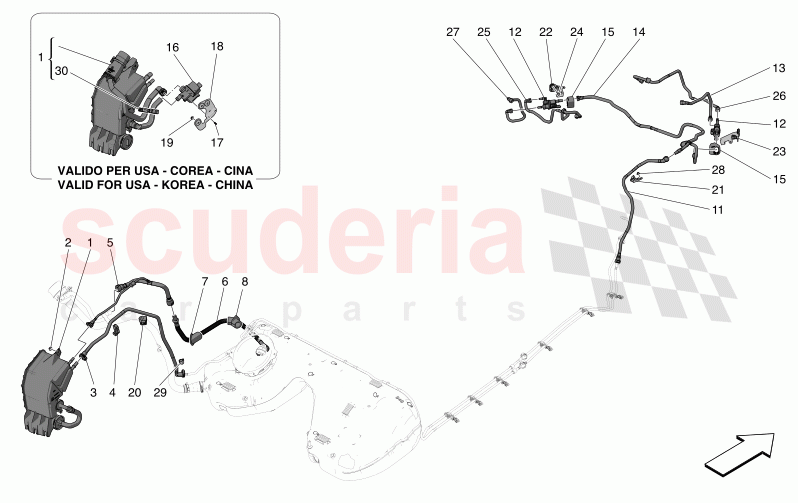

FUEL VAPOUR RECIRCULATION SYSTEM of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001694
FUEL VAPOUR FILTER
EU AU UK JP ME JRH IN N0 N8 market.abbr.T0 market.abbr.TX;
IN STOCK 		$155.97 1
2 675001063
NUT 		$1.28 3
3 670160939
PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR 		$36.25 1
4 675001782
CLIP
EU AU UK JP ME JRH IN N0 N8; 		$2.19 1
5 670160941
HOSE
EU AU UK JP ME JRH IN N0 N8 market.abbr.T0 market.abbr.TX; 		$57.92 1
6 675001672
VENT PIPE 		$34.92 1
7 675001783
RUBBER 		$9.52 1
8 675001784
GASKET 		$8.65 1
11 670160948
TUBE FUEL VAPOR 		$59.35 1
12 670162028
SOLENOID VALVE
IN STOCK 		$42.19 2
13 675002006
RH HOSE FROM SLEEVE TO SOLENOID VALVE
EU AU US UK JP ME JRH KO N0 N8 market.abbr.T0 market.abbr.TX; 		$51.40 1
14 675001650
HOSE 		$230.11 1
15 675001080
RUBBER 		$8.65 2
20 670181757
CLIP
EU AU CN UK JP ME JRH IN KO N0 N8; 		$6.84 1
21 675001575
FUEL HOSE BRACKET 		$4.51 1
22 675002033
LH BRACKET 		$26.72 1
23 675002000
RH BRACKET 		$33.08 1
24 675001127
SCREW 		$1.15 6
25 670156746
LH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER 		$41.63 1
26 675002002
RH TUBE FROM SOLENOID VALVE TO PLENUM CHAMBER 		$74.35 1
27 675002008
LH HOSE FROM SLEEVE TO SOLENOID VALVE
EU AU US UK JP ME JRH KO N0 N8 market.abbr.T0 market.abbr.TX; 		$75.24 1
28 675001063
NUT 		$1.28 1
29 675001802
CLIP 		$1.47 1
