Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - TIMING (01242)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054289	REAR TIMING COVER	$589.05	To Order

Photo	Part No	Description	Price (each)	Stock
	670051267	GASKET	$32.51	To Order

Photo	Part No	Description	Price (each)	Stock
	670054416	GASKET	$109.40	To Order

Photo	Part No	Description	Price (each)	Stock
	670051115	SCREW	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670051111	SCREW	$2.12	To Order

Photo	Part No	Description	Price (each)	Stock
	670053725	OIL PUMP AND TIMING SYSTEM ASSEMBLY	$615.59	To Order

Photo	Part No	Description	Price (each)	Stock
	670053716	ENGINE SHAFT TOOTHED WHEEL	$197.31	To Order

Photo	Part No	Description	Price (each)	Stock
	670053986	TRANSMISSION TOOTHED WHEEL	$162.92	To Order

Photo	Part No	Description	Price (each)	Stock
	670050184	SUPPORT	$95.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670050416	GASKET	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670050158	SCREW	$8.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670050109	ROLLER BEARING	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670050185	SPACER BEARING	$15.43	To Order

Photo	Part No	Description	Price (each)	Stock
	670050158	SCREW	$8.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670050993	GASKET	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	670053475	TIMING VARIATOR ACTUATOR	$94.13	To Order

Photo	Part No	Description	Price (each)	Stock
	670051106	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	670050973	OIL PUMP CONTROL TOOTHED WHEEL	$84.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670050159	SCREW	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	670050999	GASKET	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	670050150	SCREW	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670050020	SCREW	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670050148	SCREW	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670050147	SCREW	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670050149	SCREW	$2.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670051123	GASKET	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	675001406	PIN	$4.14	To Order

Photo	Part No	Description	Price (each)	Stock
	670050027	BALL PIN	$9.09	To Order

Photo	Part No	Description	Price (each)	Stock
	670156747	BRACKET	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670050141	STUD	$24.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670051317	WASHER	$4.34	To Order

Photo	Part No	Description	Price (each)	Stock
	670050140	STUD	$22.71	To Order

Photo	Part No	Description	Price (each)	Stock
	670050071	NUT	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	670051281	SCREW	$2.04	To Order

View All

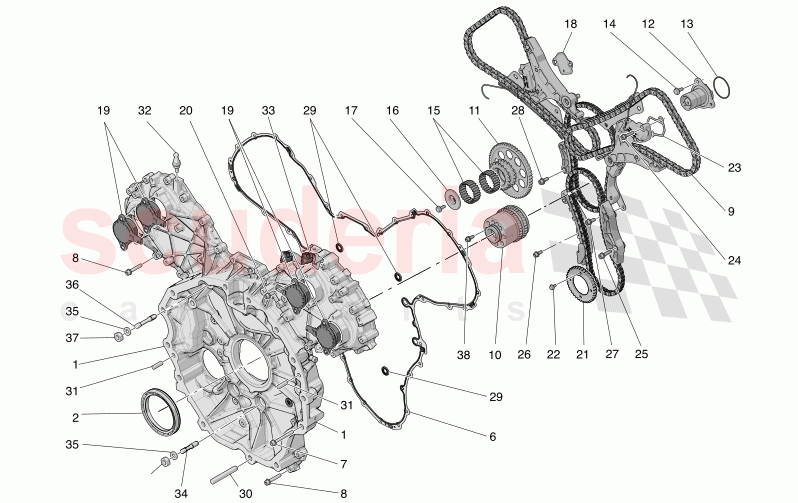

Diagram Tap to enlarge

Timing

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 01242

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - TIMING (01242)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670054289	REAR TIMING COVER	670054289 REAR TIMING COVER	$589.05	1
2	670051267	GASKET	670051267 GASKET	$32.51	1
6	670054416	GASKET	670054416 GASKET	$109.40	1
7	670051115	SCREW	670051115 SCREW	$2.28	13
8	670051111	SCREW	670051111 SCREW	$2.12	22
9	670053725	OIL PUMP AND TIMING SYSTEM ASSEMBLY	670053725 OIL PUMP AND TIMING SYSTEM ASSEMBLY	$615.59	1
10	670053716	ENGINE SHAFT TOOTHED WHEEL	670053716 ENGINE SHAFT TOOTHED WHEEL	$197.31	1
11	670053986	TRANSMISSION TOOTHED WHEEL	670053986 TRANSMISSION TOOTHED WHEEL	$162.92	1
12	670050184	SUPPORT	670050184 SUPPORT	$95.58	1
13	670050416	GASKET	670050416 GASKET	$2.58	1
14	670050158	SCREW	670050158 SCREW	$8.24	3
15	670050109	ROLLER BEARING	670050109 ROLLER BEARING	$13.45	2
16	670050185	SPACER BEARING	670050185 SPACER BEARING	$15.43	1
17	670050158	SCREW	670050158 SCREW	$8.24	1
18	670050993	GASKET	670050993 GASKET	$1.90	1
19	670053475	TIMING VARIATOR ACTUATOR	670053475 TIMING VARIATOR ACTUATOR	$94.13	4
20	670051106	SCREW	670051106 SCREW	$2.39	8
21	670050973	OIL PUMP CONTROL TOOTHED WHEEL	670050973 OIL PUMP CONTROL TOOTHED WHEEL	$84.00	1
22	670050159	SCREW	670050159 SCREW	$5.22	4
23	670050999	GASKET	670050999 GASKET	$2.83	1
24	670050150	SCREW	670050150 SCREW	$2.68	4
25	670050020	SCREW	670050020 SCREW	$2.68	2
26	670050148	SCREW	670050148 SCREW	$2.68	2
27	670050147	SCREW	670050147 SCREW	$2.68	2
28	670050149	SCREW	670050149 SCREW	$2.68	2
29	670051123	GASKET	670051123 GASKET	$8.04	3
31	675001406	PIN	675001406 PIN	$4.14	2
32	670050027	BALL PIN	670050027 BALL PIN	$9.09	2
33	670156747	BRACKET	670156747 BRACKET	$13.45	1
34	670050141	STUD	670050141 STUD	$24.68	3
35	670051317	WASHER	670051317 WASHER	$4.34	8
36	670050140	STUD	670050140 STUD	$22.71	5
37	670050071	NUT	670050071 NUT	$0.65	8
38	670051281	SCREW	670051281 SCREW	$2.04	1
