Name: FUEL PUMPS AND CONNECTION LINES
Rating: 4.6 (1 reviews)

View All

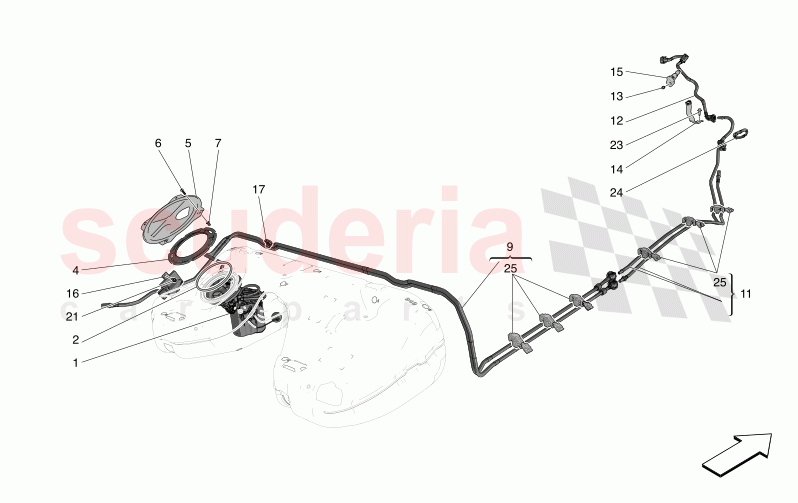

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675002220	FUEL PUMP	$341.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001996	GASKET	$63.28	To Order

Photo	Part No	Description	Price (each)	Stock
	675001997	RING NUT	$19.16	To Order

Photo	Part No	Description	Price (each)	Stock
	675001492	INSPECTION COVER	$24.22	To Order

Photo	Part No	Description	Price (each)	Stock
	675000680	SCREW	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	675001766	BLOCK	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	670217133	UNDERFLOOR FUEL PIPES	$100.72	To Order

Photo	Part No	Description	Price (each)	Stock
	670156529	FRONT UNDERFLOOR FUEL PIPES	$64.80	To Order

Photo	Part No	Description	Price (each)	Stock
	675002218	FUEL DELIVERY TUBE	$78.60	To Order

Photo	Part No	Description	Price (each)	Stock
	675000999	SCREW	$0.72	To Order

Photo	Part No	Description	Price (each)	Stock
	675001574	BRACKET	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	675001876	FUEL PUMP ELECTRIC CONTROL UNIT	$117.93	To Order

Photo	Part No	Description	Price (each)	Stock
	675001835	CLIP	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	675001815	SCREW	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	675001539	SCREW	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	675001747	GASKET	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	670173914	CLIP	$8.00	To Order

View All

Fuel Pumps And Connection Lines

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	675002220	FUEL PUMP	675002220 FUEL PUMP	$341.63	1
2	675001996	GASKET	675001996 GASKET	$63.28	1
4	675001997	RING NUT	675001997 RING NUT	$19.16	1
5	675001492	INSPECTION COVER	675001492 INSPECTION COVER	$24.22	1
6	675000680	SCREW	675000680 SCREW	$0.98	1
7	675001766	BLOCK	675001766 BLOCK	$0.78	1
9	670217133	UNDERFLOOR FUEL PIPES	670217133 UNDERFLOOR FUEL PIPES	$100.72	1
11	670156529	FRONT UNDERFLOOR FUEL PIPES	670156529 FRONT UNDERFLOOR FUEL PIPES	$64.80	1
12	675002218	FUEL DELIVERY TUBE	675002218 FUEL DELIVERY TUBE	$78.60	1
13	675000999	SCREW	675000999 SCREW	$0.72	1
14	675001759	BRACKET	675001759 BRACKET EU CN US JP ME KO N0;	$14.63	1
14	675001630	BRACKET	675001630 BRACKET AU UK JRH IN N8;	$19.39	1
15	675001574	BRACKET	675001574 BRACKET	$4.25	1
16	675001876	FUEL PUMP ELECTRIC CONTROL UNIT	675001876 FUEL PUMP ELECTRIC CONTROL UNIT	$117.93	1
17	675001835	CLIP	675001835 CLIP	$2.69	1
21	675001815	SCREW	675001815 SCREW	$1.21	1
23	675001539	SCREW	675001539 SCREW	$0.93	1
24	675001747	GASKET	675001747 GASKET	$2.30	1
25	670173914	CLIP	670173914 CLIP	$8.00	6
