Name: CRANKCASE
Rating: 4.5 (1 reviews)

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054104	ENGINE BLOCK	$6,017.92	To Order

Photo	Part No	Description	Price (each)	Stock
	670051246	RH ENGINE SUPPORT	$219.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670051287	LH ENGINE SUPPORT	$191.11	To Order

Photo	Part No	Description	Price (each)	Stock
	670051397	SCREW	$7.20	To Order

Photo	Part No	Description	Price (each)	Stock
	675001507	NUT	$3.46	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	675002079	GASKET	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	16288424	SCREW	$7.98	To Order

View All

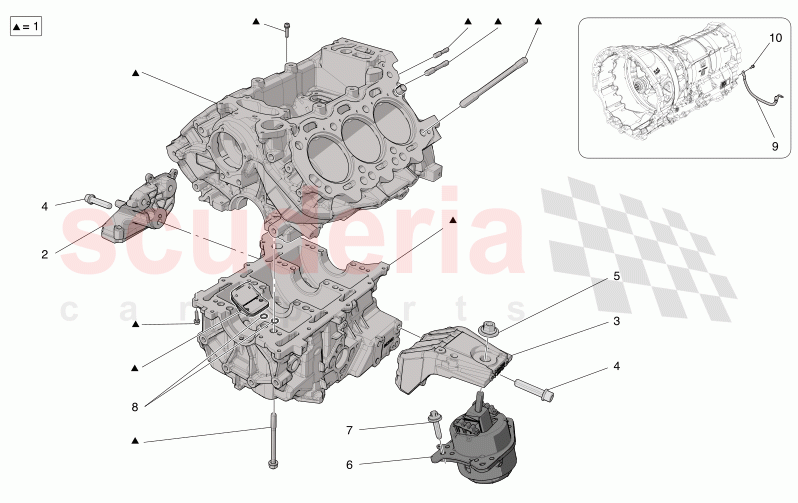

Crankcase

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	670054553	ENGINE ASSEMBLY	670054553 ENGINE ASSEMBLY Bespoke Assembly Number 2036131 - 99999999;	$32,297.05	1
-	670054300	ENGINE ASSEMBLY	670054300 ENGINE ASSEMBLY Bespoke Assembly Number 0 - 2036130;	$32,297.05	1
1	670054104	ENGINE BLOCK	670054104 ENGINE BLOCK	$6,017.92	1
2	670051246	RH ENGINE SUPPORT	670051246 RH ENGINE SUPPORT	$219.68	1
3	670051287	LH ENGINE SUPPORT	670051287 LH ENGINE SUPPORT	$191.11	1
4	670051397	SCREW	670051397 SCREW	$7.20	7
5	675001507	NUT	675001507 NUT	$3.46	2
6	675001517	LH ENGINE BUSHING	675001517 LH ENGINE BUSHING	$223.62	1
6	675001516	RH ENGINE BUSHING	675001516 RH ENGINE BUSHING	$223.62	1
7	675001345	SCREW	675001345 SCREW	$2.31	6
8	675002079	GASKET	675002079 GASKET	$1.85	8
9	675007373	CABLE FOR ENGINE-FRAME EARTH	675007373 CABLE FOR ENGINE-FRAME EARTH Bespoke Assembly Number 2025900 - 99999999;	$28.81	1
9	675001705	CABLE FOR ENGINE-FRAME EARTH	675001705 CABLE FOR ENGINE-FRAME EARTH Bespoke Assembly Number 0 - 2025899;	$28.42	1
10	16288424	SCREW	16288424 SCREW	$7.98	1
11	670054814	LONG BLOCK	670054814 LONG BLOCK	$21,327.89	1
