Air Intake of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

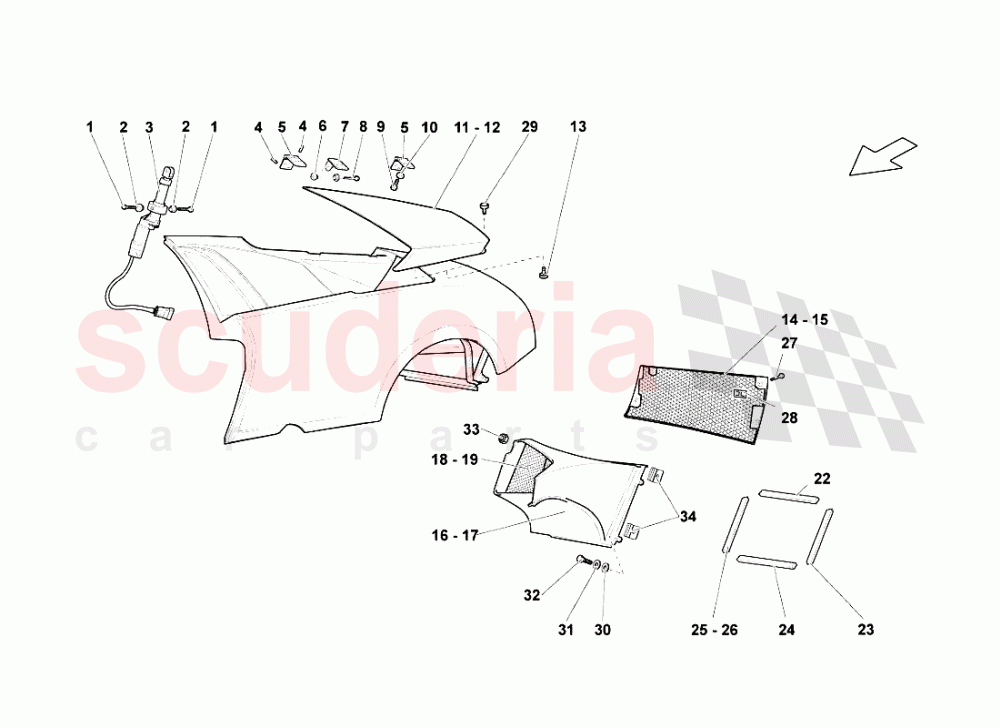

Lamborghini Murcielago LP640 Roadster - Air Intake

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	WHT003293	SCREW IN STOCK	WHT003293 SCREW IN STOCK	$27.08	2
002	410810967	BUSHING IN STOCK	410810967 BUSHING IN STOCK	$21.58	2
003	410901119A	POWER STEERING MOTOR IN STOCK	410901119A POWER STEERING MOTOR IN STOCK	$4,474.57	2
004	N10073601	PIN 3X14	N10073601 PIN 3X14	$0.51 MSRP: ~~7.31~~ (93% off)	8
005	410814525	MOVABLE AIR INTAKE HINGE ASSEMBLY	410814525 MOVABLE AIR INTAKE HINGE ASSEMBLY	$235.70	4
006	410827547	BUSHING IN STOCK	410827547 BUSHING IN STOCK	$7.01	2
007	410119185	BRACKET	410119185 BRACKET	$453.92	1
008	410827855	JOURNAL	410827855 JOURNAL	$33.82	1
009	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	8
010	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	8
011	417119361	LEFT MOVABLE AIR INTAKE ASSEMBLY	417119361 LEFT MOVABLE AIR INTAKE ASSEMBLY	$7,588.93	1
012	417119362	RIGHT MOVABLE AIR INTAKE ASSEMBLY	417119362 RIGHT MOVABLE AIR INTAKE ASSEMBLY	$7,588.93	1
013	410853809	MOUNTING BUFFER	410853809 MOUNTING BUFFER	$40.03	2
014	410807684	RIGHT REAR GRID ON BUMPERS	410807684 RIGHT REAR GRID ON BUMPERS	$201.93	1
015	410807683	LEFT REAR GRID ON BUMPERS	410807683 LEFT REAR GRID ON BUMPERS	$1,719.09	1
016	410121282	WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	410121282 WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	$701.39	1
017	410121281	WATER RADIATOR LEFT CONVEYOR ASSEMBLY	410121281 WATER RADIATOR LEFT CONVEYOR ASSEMBLY	$585.12	1
018	410121556	RH NET	410121556 RH NET	$325.13	1
019	410121555	LH NET	410121555 LH NET	$343.82	1
022	410121221A	GASKET TOP CONVEYOR	410121221A GASKET TOP CONVEYOR	$4.82	1
022	410121221D	LEFT GASKET TOP CONVEYOR	410121221D LEFT GASKET TOP CONVEYOR	$4.88	1
023	410121221C	GASKET CONVEYOR	410121221C GASKET CONVEYOR	$3.65	2
024	410121221B	GASKET BOTTOM CONVEYOR	410121221B GASKET BOTTOM CONVEYOR	$3.94	2
025	410121221	GASKET LEFT CONVEYOR	410121221 GASKET LEFT CONVEYOR	$3.46	1
026	410121221E	GASKET RIGHT CONVEYOR	410121221E GASKET RIGHT CONVEYOR	$3.39	1
027	WHT003574	SCREW IN STOCK	WHT003574 SCREW IN STOCK	$0.83 MSRP: ~~7.25~~ (88.6% off)	8
028	WHT000916A	CLIP	WHT000916A CLIP	$14.46	8
029	410807895	PLUG	410807895 PLUG	$29.94	3
030	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	4
031	WHT002963	WASHER IN STOCK	WHT002963 WASHER IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	6
032	N90612002	SCREW M6X14 IN STOCK	N90612002 SCREW M6X14 IN STOCK	$0.75 MSRP: ~~7.29~~ (89.7% off)	6
033	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
