Intake Manifold 2 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

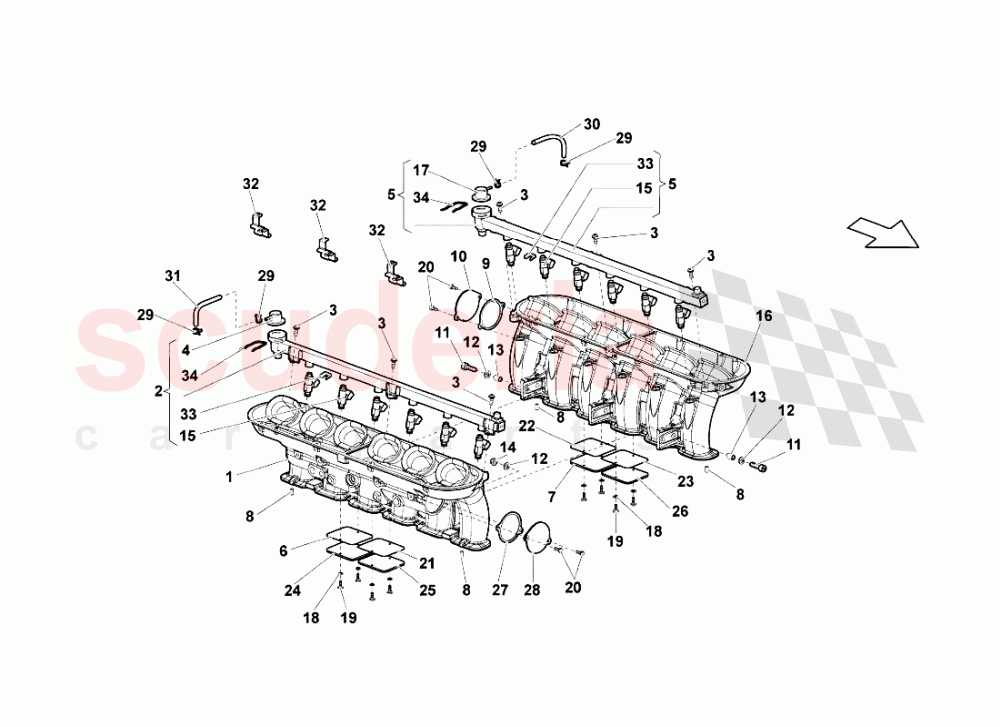

Lamborghini Murcielago LP640 Roadster - Intake Manifold 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M133151B	MANIFOLD	7M133151B MANIFOLD	$2,624.56	1
002	7M133681F	LH PIPE	7M133681F LH PIPE	$1,165.22	1
003	N10451405	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451405 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.54 MSRP: ~~7.22~~ (78.7% off)	1
004	7M133035A	REGULATOR	7M133035A REGULATOR	$721.45	1
005	7M133681E	RH PIPE	7M133681E RH PIPE	$1,165.22	1
006	7M133075A	GASKET	7M133075A GASKET	$39.57	1
007	7M133100B	COVER	7M133100B COVER	$172.45	1
008	7M133615	PIN	7M133615 PIN	$8.30	1
009	7M133026B	GASKET	7M133026B GASKET	$40.60	1
010	7M133211A	FLANGE	7M133211A FLANGE	$583.25	1
011	N10518404	SCREW M8X30 IN STOCK	N10518404 SCREW M8X30 IN STOCK	$3.43	6
012	WHT003096	WASHER	WHT003096 WASHER	$0.21 MSRP: ~~7.37~~ (97.2% off)	6
013	7M103143A	DOWEL SLEEVE	7M103143A DOWEL SLEEVE	$33.29	2
015	7M906031A	INJECTOR IN STOCK	7M906031A INJECTOR IN STOCK	$221.38	12
016	7M133151B	MANIFOLD	7M133151B MANIFOLD	$2,624.56	1
017	7M133035A	REGULATOR	7M133035A REGULATOR	$721.45	1
018	N0115557	WASHER	N0115557 WASHER	$108.68	8
019	N10627501	SCREW M4X10	N10627501 SCREW M4X10	$19.54	8
020	WHT003107	SCREW M5X16	WHT003107 SCREW M5X16	$10.04	4
021	7M133075A	GASKET	7M133075A GASKET	$39.57	1
022	7M133075A	GASKET	7M133075A GASKET	$39.57	1
023	7M133075A	GASKET	7M133075A GASKET	$39.57	1
024	7M133100B	COVER	7M133100B COVER	$172.45	1
025	7M133100B	COVER	7M133100B COVER	$172.45	1
026	7M133100B	COVER	7M133100B COVER	$172.45	1
027	7M133026B	GASKET	7M133026B GASKET	$40.60	1
028	7M133211A	FLANGE	7M133211A FLANGE	$583.25	1
029	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.38 MSRP: ~~7.33~~ (94.8% off)	4
030	7M133264C	VACUUM HOSE	7M133264C VACUUM HOSE	$5.45	1
031	7M133264B	VACUUM HOSE	7M133264B VACUUM HOSE	$5.45	1
032	7M103933	BRACKET	7M103933 BRACKET	$28.86	3
033	7M133047	CLIP	7M133047 CLIP	$142.01	12
034	37133047A	CLIP	37133047A CLIP	$202.92	2
