Secondary Air System of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

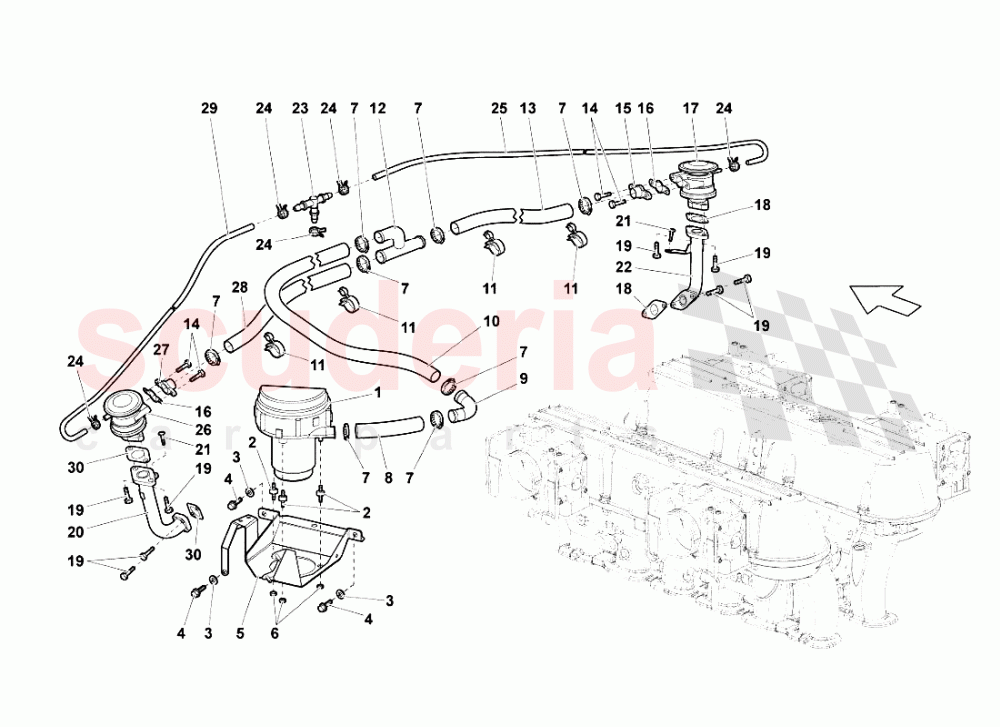

Lamborghini Murcielago LP640 Roadster - Secondary Air System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	78906601F	PUMP	78906601F PUMP	$663.30	1
002	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	$17.29	3
003	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	3
004	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT IN STOCK	$1.68	3
005	410906613B	BRACKET	410906613B BRACKET	$80.32	1
006	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	3
007	N10255601	CLAMP	N10255601 CLAMP	$1.93 MSRP: ~~7.10~~ (72.8% off)	8
008	7M131371A	PIPE	7M131371A PIPE	$811.78	1
009	7M131163	CONNECTOR	7M131163 CONNECTOR	$41.22	1
010	7M131149B	PIPE	7M131149B PIPE	$562.00	1
011	N10291602	CLAMP	N10291602 CLAMP	$5.99	4
012	7M131598	CONNECTOR	7M131598 CONNECTOR	$1,187.69	1
013	7M131611C	PIPE (RIGHT-HAND)	7M131611C PIPE (RIGHT-HAND)	$686.90	1
014	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$49.02	4
015	7L131585	PIPE FITTING	7L131585 PIPE FITTING	$94.30	1
016	7L131358	GASKET	7L131358 GASKET	$44.96	2
017	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	$163.65	1
018	7M131354	GASKET (RIGHT-HAND)	7M131354 GASKET (RIGHT-HAND)	$12.12	2
019	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$49.02	8
020	7M131584A	RH PIPE	7M131584A RH PIPE	$1,623.55	1
021	N90638102	ROUND HD. SCREW IN STOCK	N90638102 ROUND HD. SCREW IN STOCK	$1.56 MSRP: ~~7.25~~ (78.5% off)	2
022	7M131583A	LH PIPE	7M131583A LH PIPE	$162.37	1
023	7L133579	T-PIECE	7L133579 T-PIECE	$7.44	1
024	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.37 MSRP: ~~7.33~~ (95% off)	5
025	7M131145A	PIPE	7M131145A PIPE	$25.43	1
026	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	$163.65	1
027	7L131585	PIPE FITTING	7L131585 PIPE FITTING	$94.30	1
028	7M131611C	PIPE (RIGHT-HAND)	7M131611C PIPE (RIGHT-HAND)	$686.90	1
029	7M131145A	PIPE	7M131145A PIPE	$25.43	1
030	7M131354	GASKET (RIGHT-HAND)	7M131354 GASKET (RIGHT-HAND)	$12.12	2
