Intake Manifold 3 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - Intake Manifold 3

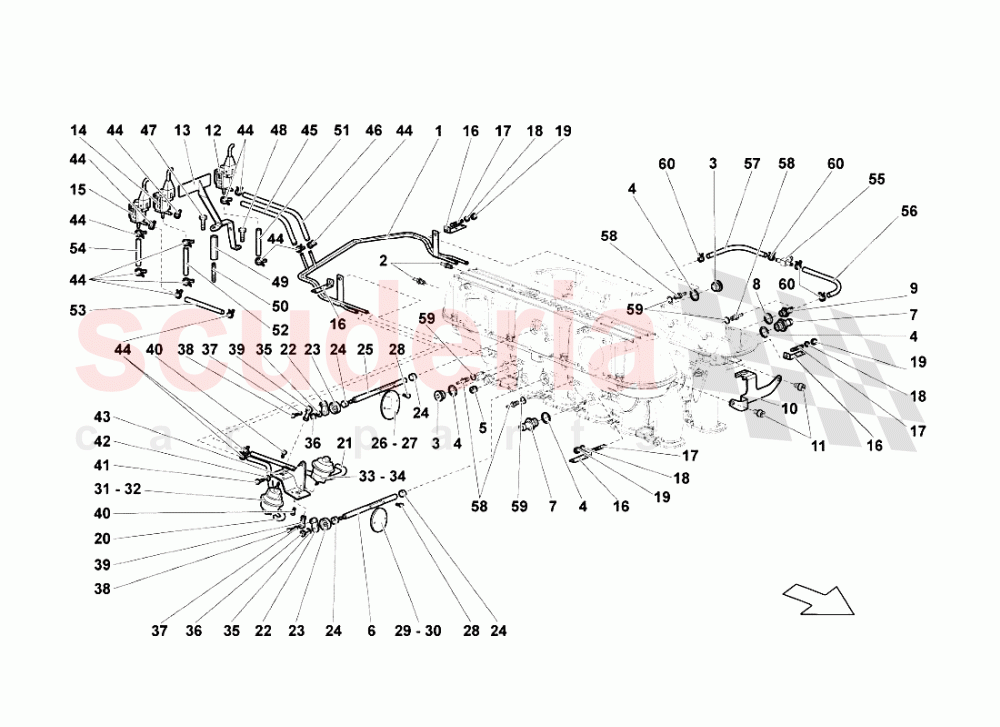

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M133085B	PIPE	7M133085B PIPE	$175.09	1
002	7L115707	CONNECTOR	7L115707 CONNECTOR	$60.97	2
003	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	$13.08	2
004	N0138481	WASHER IN STOCK	N0138481 WASHER IN STOCK	$0.65 MSRP: ~~7.28~~ (91.1% off)	4
005	7M103545	PLUG	7M103545 PLUG	$2.50	2
006	7M129935B	SHAFT	7M129935B SHAFT	$164.47	2
007	7M133119A	CONNECTOR	7M133119A CONNECTOR	$67.92	2
008	WHT003047	WASHER	WHT003047 WASHER	$0.43 MSRP: ~~7.33~~ (94.1% off)	1
009	7M115113	CONNECTOR	7M115113 CONNECTOR	$77.56	1
012	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE IN STOCK	$53.24	1
013	7M906287D	SUPPORT	7M906287D SUPPORT	$35.83	1
014	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE IN STOCK	$53.24	1
015	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE IN STOCK	$53.24	1
016	410971789A	BRACKET	410971789A BRACKET	$53.08	4
017	8300658	STUD BOLT M6X14	8300658 STUD BOLT M6X14	$11.95 MSRP: ~~13.35~~ (10.5% off)	4
018	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
019	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$2.01 MSRP: ~~7.29~~ (72.4% off)	4
020	7M133605A	PIPE (BLUE)	7M133605A PIPE (BLUE)	$16.33	2
021	7M133727A	PIPE (RED)	7M133727A PIPE (RED)	$22.01	2
022	7M129350A	LEVER	7M129350A LEVER	$125.69	4
023	WHT003087	OIL SEAL	WHT003087 OIL SEAL	$20.52	4
024	WHT003073	BUSHING	WHT003073 BUSHING	$30.57	4
025	7M129935E	SHAFT	7M129935E SHAFT	$164.47	2
026	7M133931A	VALVE	7M133931A VALVE	$208.25	1
027	7M133931A	VALVE	7M133931A VALVE	$208.25	1
028	WHT003089	SCREW M4X7	WHT003089 SCREW M4X7	$0.33 MSRP: ~~7.34~~ (95.5% off)	8
029	7M133931	VALVE	7M133931 VALVE	$211.99	1
030	7M133931	VALVE	7M133931 VALVE	$211.99	1
031	7M907327	ACTUATOR INTAKE MANIFOLD	7M907327 ACTUATOR INTAKE MANIFOLD	$305.17	1
032	7M907327	ACTUATOR INTAKE MANIFOLD	7M907327 ACTUATOR INTAKE MANIFOLD	$305.17	1
033	7M907327	ACTUATOR INTAKE MANIFOLD	7M907327 ACTUATOR INTAKE MANIFOLD	$305.17	1
034	7M907327	ACTUATOR INTAKE MANIFOLD	7M907327 ACTUATOR INTAKE MANIFOLD	$305.17	1
035	WHT001514	WASHER IN STOCK	WHT001514 WASHER IN STOCK	$23.22 MSRP: ~~64.00~~ (63.7% off)	4
036	WHT003021	NUT M8	WHT003021 NUT M8	$24.14	4
037	WHT003051A	WASHER	WHT003051A WASHER	$0.43 MSRP: ~~7.33~~ (94.1% off)	4
038	WHT003020	SCREW M3X12	WHT003020 SCREW M3X12	$25.77	4
039	7M129885	BALL JOINT	7M129885 BALL JOINT	$126.94	4
040	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) IN STOCK	$0.95 MSRP: ~~7.31~~ (87% off)	12
041	N90612002	SCREW M6X14 IN STOCK	N90612002 SCREW M6X14 IN STOCK	$0.75 MSRP: ~~7.29~~ (89.7% off)	4
042	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	4
043	7M907332A	SUPPORT	7M907332A SUPPORT	$126.32	2
044	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.37 MSRP: ~~7.33~~ (95% off)	12
045	7M131847B	PIPE (BLUE)	7M131847B PIPE (BLUE)	$17.04	1
046	7M131846B	PIPE (RED)	7M131846B PIPE (RED)	$140.08	1
047	N90638102	ROUND HD. SCREW IN STOCK	N90638102 ROUND HD. SCREW IN STOCK	$1.56 MSRP: ~~7.25~~ (78.5% off)	1
048	N90638102	ROUND HD. SCREW IN STOCK	N90638102 ROUND HD. SCREW IN STOCK	$1.56 MSRP: ~~7.25~~ (78.5% off)	1
051	7M131845A	PIPE (RED)	7M131845A PIPE (RED)	$65.05	1
052	7M131853B	PIPE (BLUE)	7M131853B PIPE (BLUE)	$17.04	1
053	7M131493A	PIPE	7M131493A PIPE	$43.41	1
054	7M131492A	PIPE	7M131492A PIPE	$6.19	1
055	470133794A	T-PIECE	470133794A T-PIECE	$98.45	2
056	7M131850B	VACUUM HOSE	7M131850B VACUUM HOSE	$18.39	2
057	7M131208A	VACUUM HOSE	7M131208A VACUUM HOSE	$58.12	2
058	7M115113A	CONNECTOR	7M115113A CONNECTOR	$54.79	4
059	WHT001191	WASHER IN STOCK	WHT001191 WASHER IN STOCK	$0.35 MSRP: ~~7.34~~ (95.2% off)	4
060	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP IN STOCK	$1.88 MSRP: ~~7.11~~ (73.6% off)	10
