Doors 2

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Doors 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

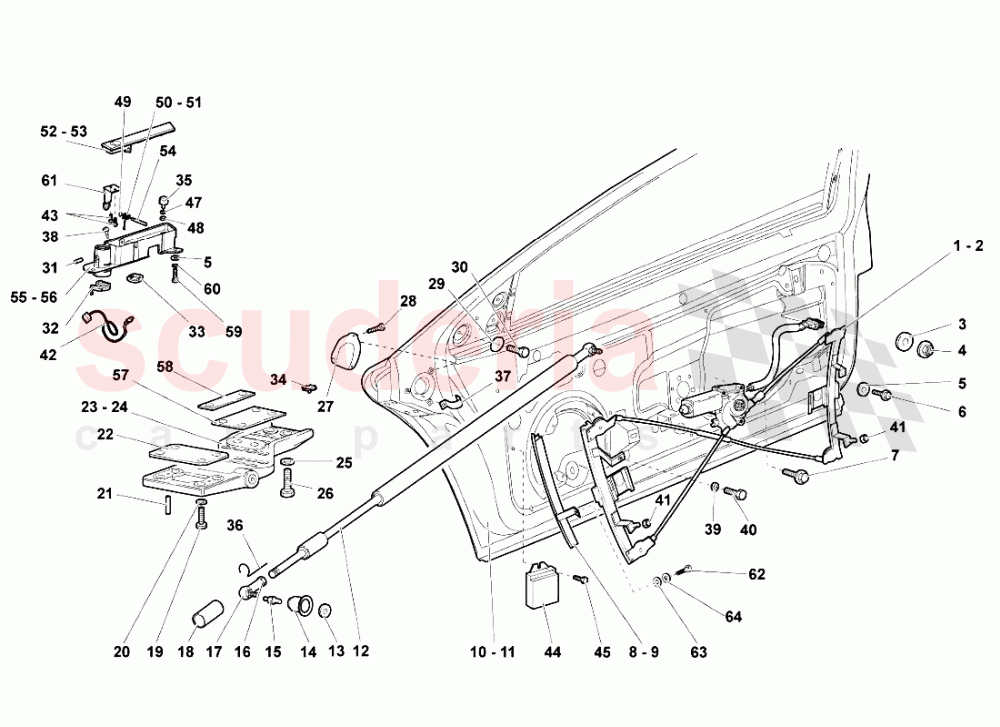

Doors 2 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 417837397A
LH POWER WINDOW ASSEMBLY 		$1,441.99 1
002 417837398A
RIGHT DOOR POWER WINDOW ASSEMBLY 		$1,441.99 1
003 WHT002961
WASHER
IN STOCK 		$0.39 3
004 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 3
005 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.08 4
006 N01020717
SCREW M5X12
IN STOCK 		$1.25 (82.9% off) 4
007 N91049601
OVAL HEAD PANEL SCREW (COMBI)
IN STOCK 		$0.96 (86.9% off) 6
010 417831051
LEFT DOOR FRAME ASSEMBLY 		$10,463.72 1
011 417831052
RIGHT DOOR FRAME ASSEMBLY
(RHD model) 		$10,463.72 1
012 410837987
Door Strut
IN STOCK 		$121.94 2
013 WHT000771
WASHER
IN STOCK 		$1.11 1
014 410837749
RUBBER CAP 		$22.64 2
015 410837646A
JOURNAL 		$8.65 1
016 N01100845
HEXAGON NUT
IN STOCK 		$1.94 1
017 410837262
JACK HEAD 		$8.47 1
018 410837801A
SHEATH
IN STOCK 		$48.16 1
019 N10208905
SCREW M10X30 		$3.52 4
020 WHT002955
WASHER 		$1.05 (85.4% off) 4
021 N10738601
PIN 		$0.37 2
022 410837983A
1.0 MM SHIM 		$18.94 1
022 410837983B
1.2 MM SHIM 		$15.49 1
022 410837983C
1.5 MM SHIM 		$18.56 1
022 410837983
0.8 MM SHIM 		$17.11 1
023 410831401
LH HINGE 		$1,087.13 1
024 410831402
RH HINGE 		$1,087.13 1
025 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 4
026 N10208906
SCREW M10X30.0 		$3.83 4
027 410867251
ORNAMENT 		$126.02 1
028 N90455205
SCREW M4X10
IN STOCK 		$1.15 (84.1% off) 3
031 WHT003370
SCREW 		$0.33 (95.5% off) 2
032 410837061
BOTTOM RING NUT, LH 		$123.63 1
033 410837063
LH UPPER RING NUT 		$174.93 1
034 410972672
SUPPORT 		$0.90 (87.6% off) 2
035 410837549
RUBBER SUPPORT 		$230.73 2
036 410837171
RING
IN STOCK 		$0.24 (96.7% off) 2
037 410868630A
SUPPORT 		$54.75 2
038 410837529
RUBBER CAP 		$5.14 2
039 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.08 2
040 N10718801
HEX COLLARED BOLT
IN STOCK 		$1.69 2
041 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.19 4
042 417971121A
WIRING HARNESS 		$128.53 1
043 WHT003308
SCREW M4X8 (STANDARD) 		$0.83 (88.6% off) 4
044 417959875A
POWER WINDOW CONTROL UNIT 		$608.26 2
045 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 2 X13
IN STOCK 		$1.37 6
047 N10612001
WASHER
IN STOCK 		$0.50 2
048 WHT003112
NUT M5 		$0.65 2
049 410863191
RING 		$0.79 (89.1% off) 2
050 410837724
RH SPRING 		$57.44 1
051 410837723
LH SPRING 		$57.44 1
052 410837208AVS
RH HANDLE 		$1,080.88 1
053 410837207AVS
LH HANDLE 		$1,080.88 1
054 410837041
JOURNAL 		$17.50 2
055 410837163
LEFT HANDLE BODY 		$230.77 1
056 410837164
RIGHT HANDLE BODY 		$230.77 1
057 410837984
2.00 ADJUSTMENT SHIM 		$21.52 1
058 410837944A
1.00 ADJUSTMENT SHIM 		$18.12 4
059 WHT003111
SCREW M5X16
IN STOCK 		$1.08 (85% off) 3
060 N91109201
WASHER
IN STOCK 		$1.62 (72.3% off) 10
061 410837226A
LEVER 		$640.75 2
