Frame Elements 1

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Frame Elements 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

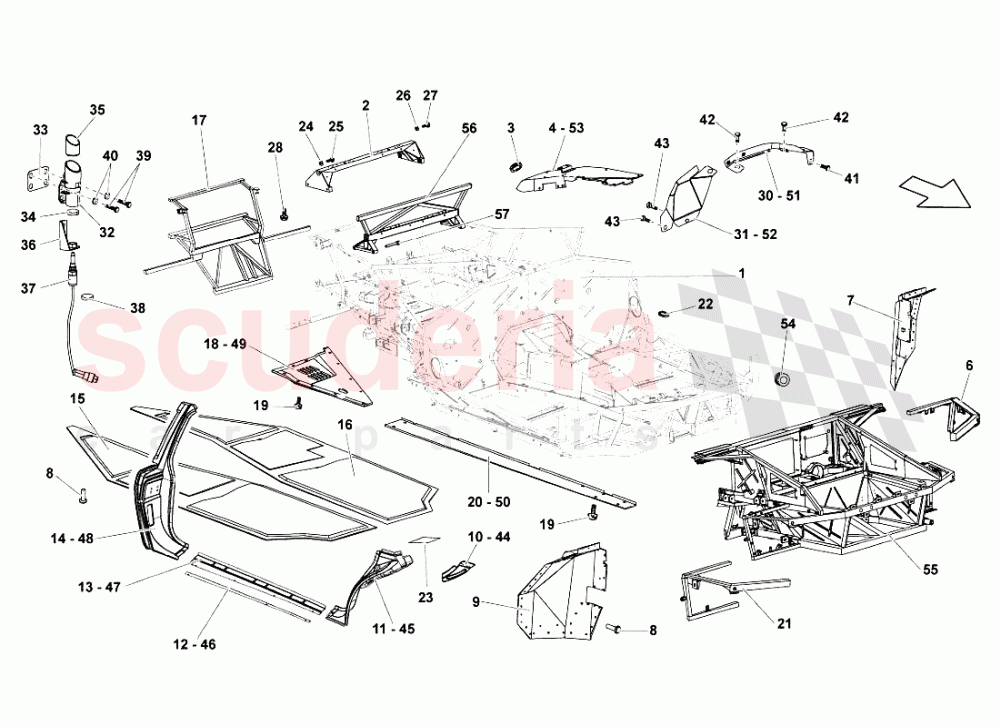

Frame Elements 1 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
003 400821189
Plug
IN STOCK 		$2.50 4
004 410813766A
RH SHEET 		$183.53 1
006 41013497
LEFT FRONT FRAME 		$1,053.83 1
007 417809153
LEFT FRONT WHEELARCH, REAR PART 		$12,102.65 1
008 410821316
RIVET 		$6.14 66
008 410821316
RIVET 		$6.14 202
009 417809154
RIGHT FRONT WHEELARCH, REAR PART 		$12,102.65 1
010 410809440A
RIGID UPPER CONNECTION 		$217.22 1
011 410805047
FRONT LEFT COVERING 		$2,596.54 1
012 410831165
OUTER LOWER LEFT PROFILE 		$79.65 1
013 410801256
CENTER RIGHT COVERING 		$705.31 1
014 417809225
REAR LEFT COVERING 		$686.60 1
015 410825219
BOARD 		$6,954.76 1
016 410825220
BOARD 		$6,954.76 1
017 410814291
REAR FRAME 		$7,053.10 1
018 410825216
RIGHT REAR SIDE MEMBER BOTTOM 		$1,616.59 1
019 WHT003069
SCREW M6X1X20 		$42.00 11
020 410825211
LEFT FRONT SIDE MEMBER BOTTOM 		$1,292.02 1
021 41013498
RIGHT FRONT FRAME 		$1,053.83 1
022 410821801
PLUG 		$34.85 1
023 410837267
LID 		$526.93 2
028 N01034518
SCREW M8X45
IN STOCK 		$24.15 2
030 410810610
RH SHEET 		$101.62 1
031 417803830
RH SHEET 		$105.52 1
032 417871459
SUPPORT 		$404.45 2
033 417871279
SPACER 		$18.69 2
034 417813395
RUBBER BUFFER 		$1.61 (77.4% off) 1
035 417871180
BUSHING 		$77.66 1
036 417813763
SUPPORT 		$64.18 1
037 417959727
SWITCH 		$53.80 1
038 417813395A
RUBBER BUFFER 		$1.04 (85.6% off) 1
039 WHT001194
SCREW
IN STOCK 		$0.35 (95.2% off) 8
040 WHT001187
WASHER
IN STOCK 		$0.76 (89.5% off) 8
041 N90807405
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$1.23 2
042 N90847903
Screw M6X15
IN STOCK 		$1.82 4
043 N90807405
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$1.23 4
044 410809439A
RIGID UPPER CONNECTION 		$181.03 1
045 410805048
FRONT RIGHT COVERING 		$2,596.54 1
046 410831166
OUTER LOWER RIGHT PROFILE 		$89.67 1
047 410801255
CENTER LEFT COVERING 		$705.31 1
048 417809226
REAR RIGHT COVERING 		$686.60 1
049 410825215A
LEFT REAR SIDE MEMBER BOTTOM 		$1,879.17 1
050 410825210
RIGHT FRONT SIDE MEMBER BOTTOM 		$1,292.02 1
051 410810609
LH SHEET 		$101.62 1
052 417803829
LH SHEET 		$105.52 1
053 410813765
LH SHEET 		$241.56 1
054 410805746
FAIRLEAD (E-GEAR) 		$3.01 1
055 410898045
FRONT FRAME (SEE IDENTITY PLATE PROCEDURE) 		$21,844.43 1
