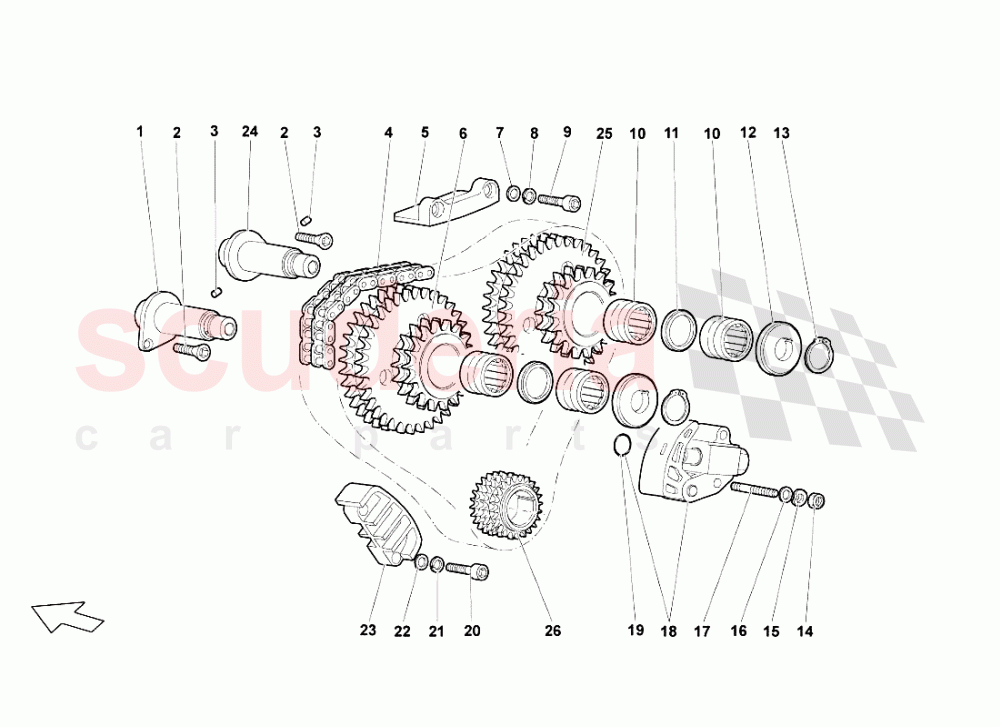

Lamborghini Murcielago LP640 Roadster - Head Timing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M109225	JOURNAL	7M109225 JOURNAL	$1,221.95	1
002	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT IN STOCK	$1.33 MSRP: ~~7.17~~ (81.5% off)	2
003	WHT003082	DOWEL	WHT003082 DOWEL	$0.72 MSRP: ~~7.27~~ (90.1% off)	2
004	7M109229	LOWER TIMING CHAIN	7M109229 LOWER TIMING CHAIN	$131.80	1
005	7M109201	Guide	7M109201 Guide	$67.84	1
006	7M109569	GEAR	7M109569 GEAR	$1,593.04	1
007	WHT003543	WASHER	WHT003543 WASHER	$11.31	2
008	WHT001397	WASHER IN STOCK	WHT001397 WASHER IN STOCK	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
009	WHT003072	SCREW	WHT003072 SCREW	$5.63	2
010	410109403	BEARING	410109403 BEARING	$368.51	4
011	7M109135	SPACER	7M109135 SPACER	$203.00	2
012	7M109163	WASHER	7M109163 WASHER	$76.83	2
013	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	2
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	2
015	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	2
016	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	2
017	WHT003026	STUD BOLT M6X40	WHT003026 STUD BOLT M6X40	$14.18	2
018	7M109077A	CHAIN TIGHTENER WITH RING	7M109077A CHAIN TIGHTENER WITH RING	$765.73	1
019	WHT003060	SEAL RING IN STOCK	WHT003060 SEAL RING IN STOCK	$2.07 MSRP: ~~7.14~~ (71% off)	1
020	WHT003071	SCREW	WHT003071 SCREW	$6.44	2
021	WHT001397	WASHER IN STOCK	WHT001397 WASHER IN STOCK	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
022	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	2
023	7M109203	Guide IN STOCK	7M109203 Guide IN STOCK	$1,904.96	1
024	7M109225	JOURNAL	7M109225 JOURNAL	$1,221.95	1
025	7M109569	GEAR	7M109569 GEAR	$1,593.04	1
