Side Body Elements of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

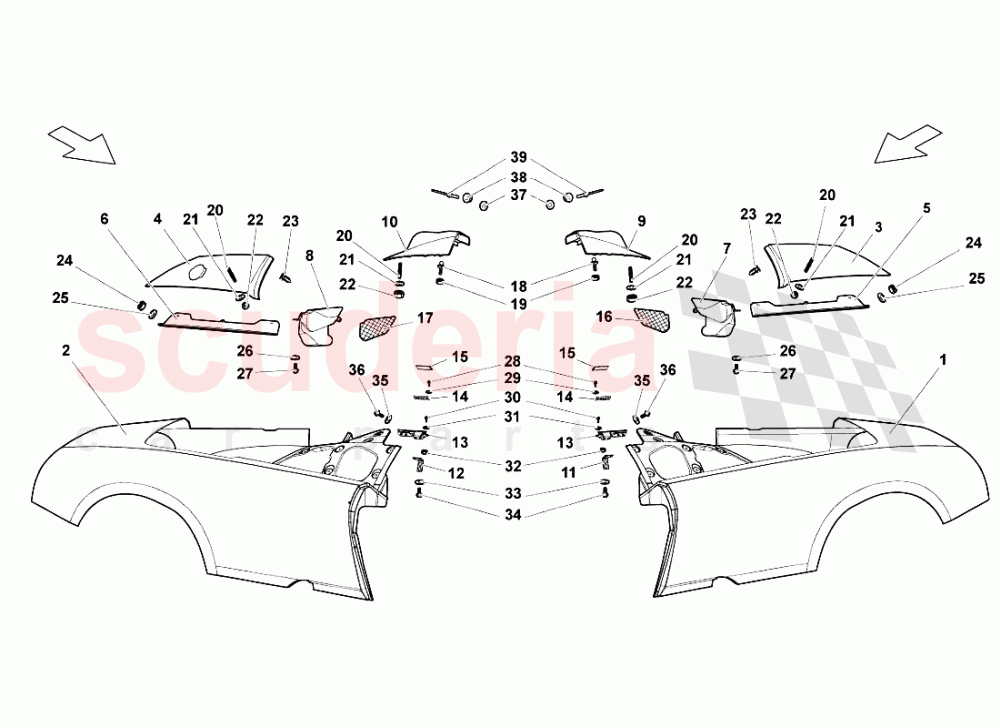

Lamborghini Murcielago LP640 Roadster - Side Body Elements

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	417821017B	LEFT REAR FENDER ASSEMBLY	417821017B LEFT REAR FENDER ASSEMBLY	$31,551.39	1
002	417821018B	RIGHT REAR FENDER ASSEMBLY	417821018B RIGHT REAR FENDER ASSEMBLY	$31,551.39	1
003	417809921	FENDER LEFT COVER	417809921 FENDER LEFT COVER	$12,529.36	1
004	417809922	FENDER RH COVER AND FUEL LID	417809922 FENDER RH COVER AND FUEL LID	$12,529.36	1
005	417813919	CHANNEL	417813919 CHANNEL	$151.50	1
006	417813920	CHANNEL	417813920 CHANNEL	$151.50	1
007	417809963	LEFT ENGINE AIR INTAKE DUCT	417809963 LEFT ENGINE AIR INTAKE DUCT	$2,103.42	1
008	417809964	RIGHT ENGINE AIR INTAKE DUCT	417809964 RIGHT ENGINE AIR INTAKE DUCT	$2,103.42	1
009	417813161A	REAR LEFT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	417813161A REAR LEFT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	$7,675.00	1
010	417813162A	REAR RIGHT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	417813162A REAR RIGHT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	$7,675.00	1
011	417809165A	BRACKET	417809165A BRACKET	$23.84	1
012	417809166A	BRACKET	417809166A BRACKET	$23.84	1
013	417805968	CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP	417805968 CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP	$61.24	2
014	417809117	ORNAMENT FOR FENDER SLIDING FLAP	417809117 ORNAMENT FOR FENDER SLIDING FLAP	$60.00	2
015	417809967	FENDER SLIDING FLAP	417809967 FENDER SLIDING FLAP	$49.34	2
016	417853677	LEFT GRID	417853677 LEFT GRID	$137.74	1
017	417853676	RIGHT GRID	417853676 RIGHT GRID	$137.74	1
018	418805416	SOFT-TOP CLIP	418805416 SOFT-TOP CLIP	$23.42	2
019	N01100412	HEXAGON NUT	N01100412 HEXAGON NUT	-	2	Enquire
020	WHT003228	STUD BOLT M5X14	WHT003228 STUD BOLT M5X14	$11.34	14
021	N91109201	WASHER IN STOCK	N91109201 WASHER IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	14
022	WHT003112	NUT M5	WHT003112 NUT M5	$0.65	14
023	400867299	FASTENER LYS FUSION, YELLOW IN STOCK	400867299 FASTENER LYS FUSION, YELLOW IN STOCK	$16.74	4
024	WHT003112	NUT M5	WHT003112 NUT M5	$0.65	6
025	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	6
026	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	4
027	WHT001190	ROUND HD. SCREW IN STOCK	WHT001190 ROUND HD. SCREW IN STOCK	$2.08	4
028	N90455205	SCREW M4X10 IN STOCK	N90455205 SCREW M4X10 IN STOCK	$1.15 MSRP: ~~7.24~~ (84.1% off)	4
029	N01152221	WASHER IN STOCK	N01152221 WASHER IN STOCK	$0.24 MSRP: ~~7.37~~ (96.7% off)	4
030	N90455205	SCREW M4X10 IN STOCK	N90455205 SCREW M4X10 IN STOCK	$1.15 MSRP: ~~7.24~~ (84.1% off)	4
031	N01152221	WASHER IN STOCK	N01152221 WASHER IN STOCK	$0.24 MSRP: ~~7.37~~ (96.7% off)	4
032	N90777702	SPEED NUT IN STOCK	N90777702 SPEED NUT IN STOCK	$1.19 MSRP: ~~7.24~~ (83.6% off)	4
033	N10612001	WASHER IN STOCK	N10612001 WASHER IN STOCK	$0.50	4
034	N10648502	SCREW M5X10 IN STOCK	N10648502 SCREW M5X10 IN STOCK	$1.25 MSRP: ~~7.18~~ (82.6% off)	4
035	N90485901	WASHER IN STOCK	N90485901 WASHER IN STOCK	$13.52	4
036	N90455205	SCREW M4X10 IN STOCK	N90455205 SCREW M4X10 IN STOCK	$1.15 MSRP: ~~7.24~~ (84.1% off)	4
037	WHT000512	WASHER	WHT000512 WASHER	$1.25	2
038	417863999	SNAP BUTTON	417863999 SNAP BUTTON	$1.11 MSRP: ~~7.20~~ (84.6% off)	2
039	N91094501	RIVET IN STOCK	N91094501 RIVET IN STOCK	$0.86 MSRP: ~~7.27~~ (88.2% off)	2
