Rear Brakes - Carboceramic

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - REAR BRAKES - CARBOCERAMIC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

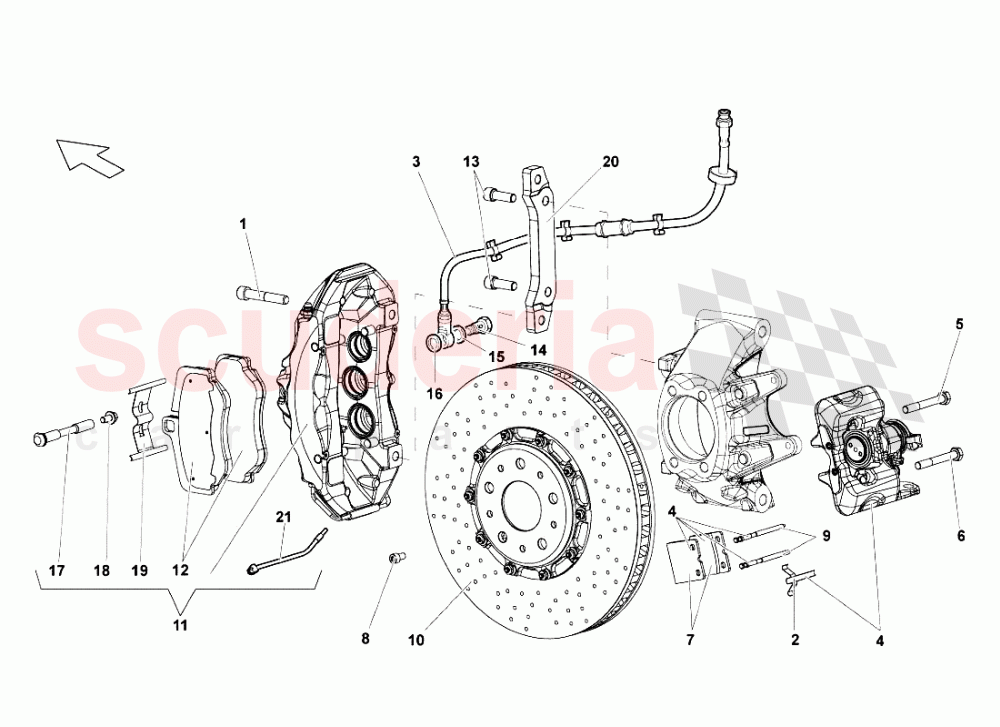

REAR BRAKES - CARBOCERAMIC of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10065003
SCREW M12X1,5X70 		$16.62 4
003 400611775A
HOSE 		$147.91 2
004 410615404
RH BRAKE CALIPER 		$1,809.88 1
004 410615403
LH BRAKE CALIPER 		$1,809.88 1
005 WHT002636
SCREW 		$7.44 2
006 WHT002636
SCREW 		$7.44 2
007 410798041A
BRAKE PAD SET 		$1,065.98 1
008 N10572401
SCREW 		$1.75 (75.9% off) 6
010 410615602
RH REAR BRAKE DISK 		$7,865.25 1
010 410615601A
LH REAR BRAKE DISK 		$7,865.25 1
011 410615406F
BLACK RH REAR BRAKE CALIPER 		$2,971.31 1
011 410615406H
RH REAR BRAKE CALIPER - SILVER 		$2,971.31 1
011 410615405H
LH REAR BRAKE CALIPER - SILVER 		$2,971.31 1
011 410615406G
YELLOW RH REAR BRAKE CALIPER 		$2,971.31 1
011 410615405F
BLACK LH REAR BRAKE CALIPER 		$2,971.31 1
011 410615405G
YELLOW LH REAR BRAKE CALIPER 		$2,971.31 1
012 4S0698151AA
SET OF BRAKE PADS FOR DISC BRAKE
IN STOCK 		$771.34 1
013 8701226
SCREW 		$5.48 (10.2% off) 4
014 WHT003303
SCREW WITH HOLE 		$12.06 2
015 WHT001191
WASHER
IN STOCK 		$0.35 (95.2% off) 2
016 WHT001191
WASHER
IN STOCK 		$0.35 (95.2% off) 2
020 410615384
BRACKET 		$615.35 2
021 400698317A
BRAKE PAD WEAR SENSOR 		- 2 Enquire
